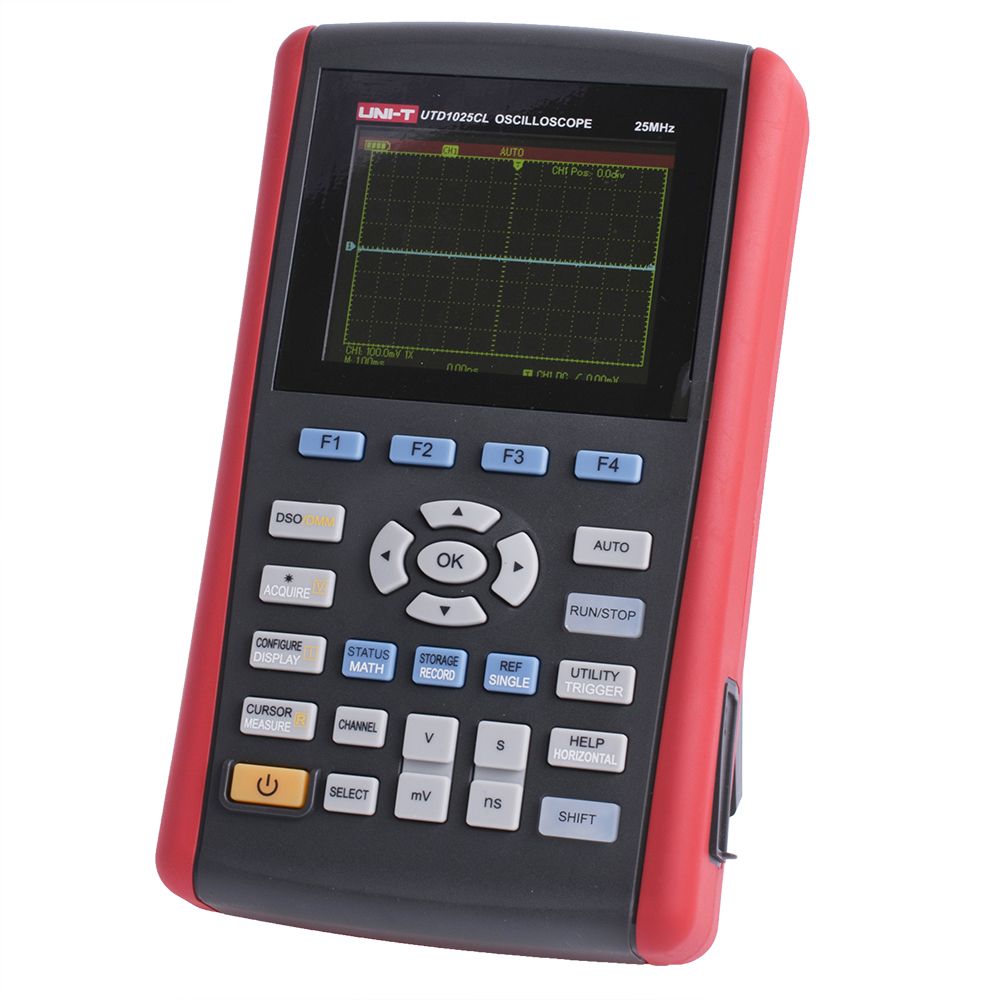

UTD1025CL UNI-T

Category: Portable Oscilloscopes, Scopemeters, Description: Handheld oscilloscope; 25MHz; LCD TFT 3,5"; Ch: 1; 250Msps; 12kpts, Kind of display used: LCD TFT 3,5", Display parameters: (3999), DC current measuring range: 0.4mA; 4mA; 40mA; 4A, AC current measuring range: 0.4mA; 4mA; 40mA; 4A, Measuring instrument features: automatic measurement of many parameters, DC voltage measuring range: 400mV; 4V; 40V; 400V, DC voltage measuring accuracy: ±(1.2% + 5 digit), AC voltage measuring range: 400mV; 4V; 40V; 400V, AC voltage measuring accuracy: ±(1.2% + 5 digit), Resistance measuring accuracy: ±(1.2%+5 digit); ±(1.5%+5 digit)@(40MΩ), Resistance measuring range: 0.4kΩ; 4kΩ; 40kΩ; 400kΩ; 4MΩ; 40MΩ, Capacitance measuring range: 51.2nF; 512nF; 5.12µF; 51.2µF; 100µF, Capacitance measuring accuracy: ±(3%+ 5 digit), Test: diodes, Dimensions: 199x118x49mm, Power supply: mains power supply; rechargeable battery Li-Ion 7,4V 3600mAh x1, Standard equipment: CD with documentation; mains cable; measuring probe; power supply; test leads; test probe x1; USB cable, Measurement: AC current; AC voltage; capacitance; continuity; DC current; DC voltage; resistance, Battery/ rechargeable battery: rechargeable battery Li-Ion 7,4V 3600mAh x1, Input sensitivity: 5mV/div...20V/div, Number of channels: 1, Display resolution: 320x240, Max. input voltage: 400V, Memory record length: 12kpts, Sampling: 250Msps, Band: 25MHz, Trigger: falling-edge; impulse width; rising-edge; slope; video signal, Type of oscilloscope: handheld oscilloscope, Interface: USB mini, Rise time: ≤14ns, Time base: 10n...50s/div.
