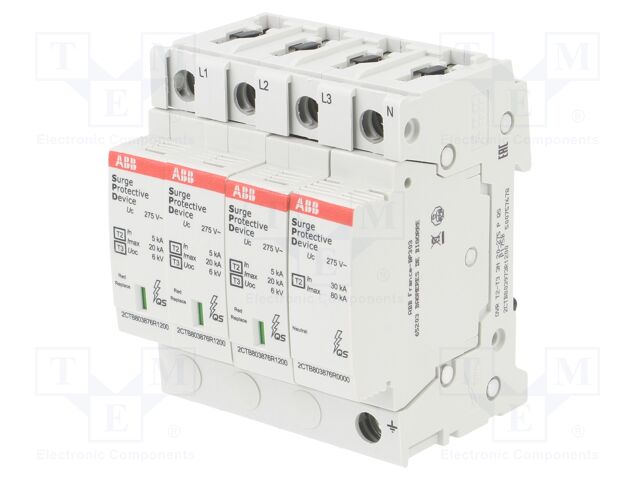

OVR T2-T3 3N 20-275 P QS ABB
Hersteller: ABB
Category: Surge Arresters
Description: Surge arrestor; Type 2+3; Poles: 3+N; In 8/20us: 20kA; -40÷80°C
Mounting: for DIN rail mounting
Kind of surge arrester: Type 2+3
Kind of network: TN-S; TT
Rated impulse current In (8/20)µs: 20kA
Protection level at rated imp. current: 1.4kV
Surge arresters features: fitted with mechanical indicators of each arrester operation
Type of protection: surge arrestor
Rated impulse current In (10/350)µs: 2kA
Number of poles: 3+N
Rated voltage: 230/400V AC
Operating temperature: -40...80°C
Max. operating voltage: 275V AC
IP rating: IP20
Anzahl je Verpackung: 1 Stücke
Category: Surge Arresters
Description: Surge arrestor; Type 2+3; Poles: 3+N; In 8/20us: 20kA; -40÷80°C
Mounting: for DIN rail mounting
Kind of surge arrester: Type 2+3
Kind of network: TN-S; TT
Rated impulse current In (8/20)µs: 20kA
Protection level at rated imp. current: 1.4kV
Surge arresters features: fitted with mechanical indicators of each arrester operation
Type of protection: surge arrestor
Rated impulse current In (10/350)µs: 2kA
Number of poles: 3+N
Rated voltage: 230/400V AC
Operating temperature: -40...80°C
Max. operating voltage: 275V AC
IP rating: IP20
Anzahl je Verpackung: 1 Stücke
Produkt ist nicht verfügbar
Produktrezensionen
Produktbewertung abgeben
Technische Details OVR T2-T3 3N 20-275 P QS ABB
Category: Surge Arresters, Description: Surge arrestor; Type 2+3; Poles: 3+N; In 8/20us: 20kA; -40÷80°C, Mounting: for DIN rail mounting, Kind of surge arrester: Type 2+3, Kind of network: TN-S; TT, Rated impulse current In (8/20)µs: 20kA, Protection level at rated imp. current: 1.4kV, Surge arresters features: fitted with mechanical indicators of each arrester operation, Type of protection: surge arrestor, Rated impulse current In (10/350)µs: 2kA, Number of poles: 3+N, Rated voltage: 230/400V AC, Operating temperature: -40...80°C, Max. operating voltage: 275V AC, IP rating: IP20, Anzahl je Verpackung: 1 Stücke.
