Produkte > PEAKTECH > P 1195
P 1195

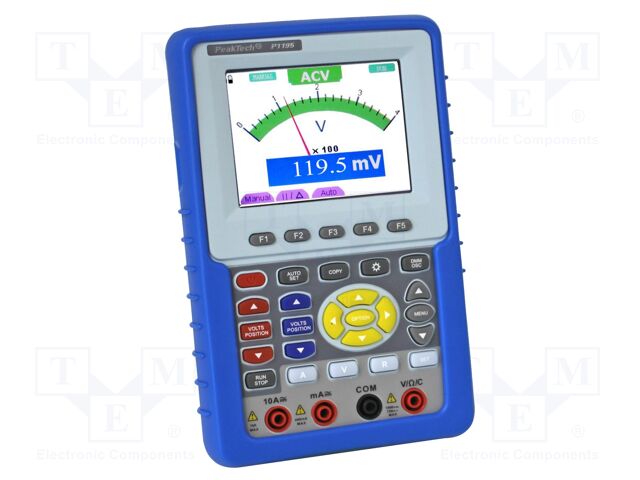

P 1195 PEAKTECH


pVersion=0046&contRep=ZT&docId=005056AB90B41EDABCCDD7C8E35900C7&compId=P%201195.pdf?ci_sign=fb1a13224825a13b2b2ee26dae7bf67190d6d195 Hersteller: PEAKTECH
Category: Portable Oscilloscopes, Scopemeters
Description: Handheld oscilloscope; 100MHz; 8bit; LCD 3,8"; Ch: 2; 1Gsps; 6kpts
Type of oscilloscope: handheld oscilloscope
Number of channels: 2
Band: 100MHz
Sampling: 1Gsps
Memory record length: 6kpts
Kind of display used: LCD 3,8"
Trigger modes: automatic; normal; single
Trigger: alternate; falling-edge; rising-edge; video signal
Trigger source: CH1; CH2
Time base: 5n...100s/div
Max. input voltage: 400V
Vertical resolution: 8bit
Input coupling: AC, DC, GND
Trigger coupling: AC; DC; highpass; lowpass
Interface: USB
Rise time: ≤3.5ns
Input impedance: 1MΩ/20pF
Input sensitivity: 5mV/div...5V/div
Additional functions: multimeter
Measuring instrument features: AUTOSET function for setting display parameters (time base, gain); FFT analysis: Rectangular, Hamming, Hanning, Blackman-Harris; insulated inputs; mathematical functions: addition, subtraction, division, multiplication and FFT; measurements by means of cursors; X-Y operation mode
Standard equipment: case; oscilloscope probe x2; power supply; test leads; USB cable; user's manual
Body dimensions: 180x115x40mm
Related items: PKT-AKKU5
Software: included
Display resolution: 640x480
Conform to the norm: CAT II 400V; EN 61010
Power supply: mains power supply; rechargeable battery Li-Ion x1
Anzahl je Verpackung: 1 Stücke
Produkt ist nicht verfügbar
