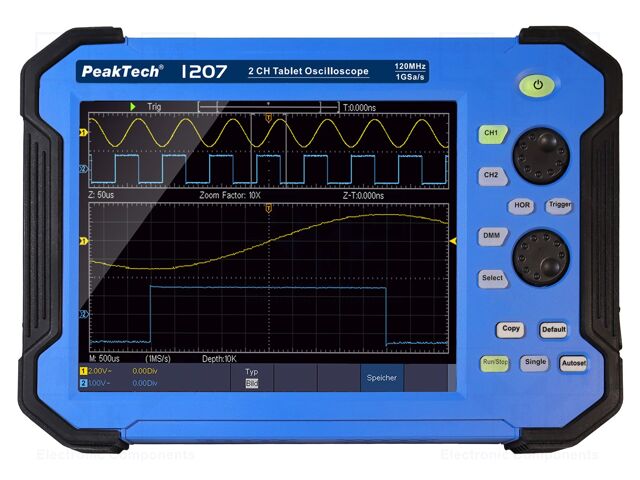

P 1207 PEAKTECH
Hersteller: PEAKTECH
Category: Portable Oscilloscopes, Scopemeters
Description: Handheld oscilloscope; 120MHz; 8bit; LCD 8"; Ch: 2; 1Gsps; 40pts
Interface: LAN; USB
Kind of display used: LCD 8"
Power supply: mains power supply; rechargeable battery Li-Ion 7,4V 8000mAh x1
Body dimensions: 270x191x48mm
Number of channels: 2
Conform to the norm: CAT II 400V; EN 61010
Display resolution: 800x600
Input impedance: 1MΩ/15pF
Standard equipment: BNC cable; oscilloscope probe x2; power supply; user's manual
Additional functions: multimeter
Measuring instrument features: AUTOSET function for setting display parameters (time base, gain); FFT analysis: Rectangular, Hamming, Hanning, Blackman-Harris; mathematical functions: addition, subtraction, division, multiplication and FFT; measurements by means of cursors; X-Y operation mode
Sampling: 1Gsps
Type of oscilloscope: handheld oscilloscope
Trigger: bus; falling-edge; impulse width; logic; Nth Edge; rising-edge; runt; slope; timeout; video signal; window
Input coupling: AC, DC, GND
Vertical resolution: 8bit
Trigger modes: automatic; normal; single
Trigger source: CH1; CH2
Max. input voltage: 400V
Band: 120MHz
Rise time: ≤2.9ns
Input sensitivity: 1mV/div...10V/div
Battery/ rechargeable battery: rechargeable battery Li-Ion 7,4V 8000mAh x1
Software: included
Memory record length: 40pts
Touchpad: yes
Anzahl je Verpackung: 1 Stücke
Category: Portable Oscilloscopes, Scopemeters
Description: Handheld oscilloscope; 120MHz; 8bit; LCD 8"; Ch: 2; 1Gsps; 40pts
Interface: LAN; USB
Kind of display used: LCD 8"
Power supply: mains power supply; rechargeable battery Li-Ion 7,4V 8000mAh x1
Body dimensions: 270x191x48mm
Number of channels: 2
Conform to the norm: CAT II 400V; EN 61010
Display resolution: 800x600
Input impedance: 1MΩ/15pF
Standard equipment: BNC cable; oscilloscope probe x2; power supply; user's manual
Additional functions: multimeter
Measuring instrument features: AUTOSET function for setting display parameters (time base, gain); FFT analysis: Rectangular, Hamming, Hanning, Blackman-Harris; mathematical functions: addition, subtraction, division, multiplication and FFT; measurements by means of cursors; X-Y operation mode
Sampling: 1Gsps
Type of oscilloscope: handheld oscilloscope
Trigger: bus; falling-edge; impulse width; logic; Nth Edge; rising-edge; runt; slope; timeout; video signal; window
Input coupling: AC, DC, GND
Vertical resolution: 8bit
Trigger modes: automatic; normal; single
Trigger source: CH1; CH2
Max. input voltage: 400V
Band: 120MHz
Rise time: ≤2.9ns
Input sensitivity: 1mV/div...10V/div
Battery/ rechargeable battery: rechargeable battery Li-Ion 7,4V 8000mAh x1
Software: included
Memory record length: 40pts
Touchpad: yes
Anzahl je Verpackung: 1 Stücke
Produkt ist nicht verfügbar
Produktrezensionen
Produktbewertung abgeben
Technische Details P 1207 PEAKTECH
Category: Portable Oscilloscopes, Scopemeters, Description: Handheld oscilloscope; 120MHz; 8bit; LCD 8"; Ch: 2; 1Gsps; 40pts, Interface: LAN; USB, Kind of display used: LCD 8", Power supply: mains power supply; rechargeable battery Li-Ion 7,4V 8000mAh x1, Body dimensions: 270x191x48mm, Number of channels: 2, Conform to the norm: CAT II 400V; EN 61010, Display resolution: 800x600, Input impedance: 1MΩ/15pF, Standard equipment: BNC cable; oscilloscope probe x2; power supply; user's manual, Additional functions: multimeter, Measuring instrument features: AUTOSET function for setting display parameters (time base, gain); FFT analysis: Rectangular, Hamming, Hanning, Blackman-Harris; mathematical functions: addition, subtraction, division, multiplication and FFT; measurements by means of cursors; X-Y operation mode, Sampling: 1Gsps, Type of oscilloscope: handheld oscilloscope, Trigger: bus; falling-edge; impulse width; logic; Nth Edge; rising-edge; runt; slope; timeout; video signal; window, Input coupling: AC, DC, GND, Vertical resolution: 8bit, Trigger modes: automatic; normal; single, Trigger source: CH1; CH2, Max. input voltage: 400V, Band: 120MHz, Rise time: ≤2.9ns, Input sensitivity: 1mV/div...10V/div, Battery/ rechargeable battery: rechargeable battery Li-Ion 7,4V 8000mAh x1, Software: included, Memory record length: 40pts, Touchpad: yes, Anzahl je Verpackung: 1 Stücke.
