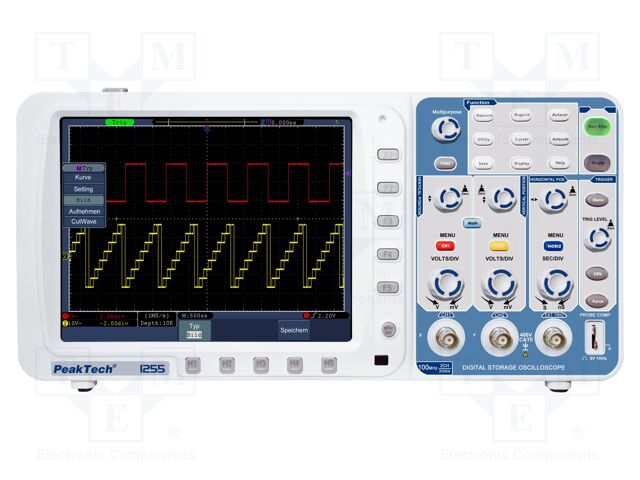

P 1255 PEAKTECH
Hersteller: PEAKTECH
Category: Digital Oscilloscopes
Description: Oscilloscope: digital; Ch: 2; 100MHz; 1Gsps; 10Mpts; LCD TFT 8"
Supply voltage: 100...240V AC
Display resolution: 800x600
Input impedance: 1MΩ/10pF
Related items: PKT-AKKU3
Standard equipment: mains cable; oscilloscope probe x2; test adapter; USB cable; user's manual
Measuring instrument features: mathematical functions: addition, subtraction, division, multiplication and FFT; Pass/Fail function
Sampling: 1Gsps
Type of oscilloscope: digital
Trigger: falling-edge; pulse; rising-edge; slope; video signal
Input coupling: AC, DC, GND
Vertical resolution: 8bit
Horizontal accuracy: ±3%
Trigger modes: automatic; normal; single
Trigger source: CH1; CH2; external signal
Trigger coupling: AC; DC; highpass; lowpass
Max. input voltage: 400V
Plug variant: EU
Band: 100MHz
Rise time: ≤1.7ns
Input sensitivity: 2mV/div...10V/div
Time base: 1n...100s/div
Software: included
Memory record length: 10Mpts
Operating temperature: 0...40°C
Kind of display used: LCD TFT 8"
Power consumption: 18W
Body dimensions: 348x170x78mm
Interface: LAN; USB; VGA
Number of channels: 2
Anzahl je Verpackung: 1 Stücke
Category: Digital Oscilloscopes
Description: Oscilloscope: digital; Ch: 2; 100MHz; 1Gsps; 10Mpts; LCD TFT 8"
Supply voltage: 100...240V AC
Display resolution: 800x600
Input impedance: 1MΩ/10pF
Related items: PKT-AKKU3
Standard equipment: mains cable; oscilloscope probe x2; test adapter; USB cable; user's manual
Measuring instrument features: mathematical functions: addition, subtraction, division, multiplication and FFT; Pass/Fail function
Sampling: 1Gsps
Type of oscilloscope: digital
Trigger: falling-edge; pulse; rising-edge; slope; video signal
Input coupling: AC, DC, GND
Vertical resolution: 8bit
Horizontal accuracy: ±3%
Trigger modes: automatic; normal; single
Trigger source: CH1; CH2; external signal
Trigger coupling: AC; DC; highpass; lowpass
Max. input voltage: 400V
Plug variant: EU
Band: 100MHz
Rise time: ≤1.7ns
Input sensitivity: 2mV/div...10V/div
Time base: 1n...100s/div
Software: included
Memory record length: 10Mpts
Operating temperature: 0...40°C
Kind of display used: LCD TFT 8"
Power consumption: 18W
Body dimensions: 348x170x78mm
Interface: LAN; USB; VGA
Number of channels: 2
Anzahl je Verpackung: 1 Stücke
auf Bestellung 1 Stücke:
Lieferzeit 7-14 Tag (e)
Anzahl | Preis ohne MwSt |
---|---|
1+ | 1090.38 EUR |
3+ | 1067.78 EUR |
