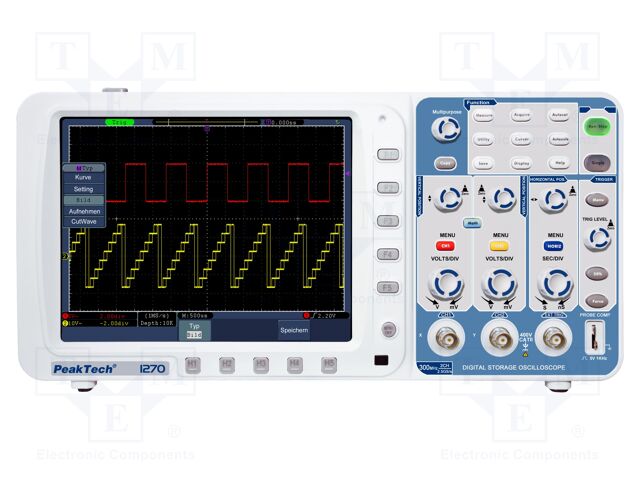

P 1270 PEAKTECH

Category: Digital Oscilloscopes
Description: Oscilloscope: digital; Ch: 2; 300MHz; 1,25Gsps; 10Mpts; LCD TFT 8"
Interface: LAN; USB; VGA
Supply voltage: 100...240V AC
Power consumption: 18W
Body dimensions: 348x170x78mm
Number of channels: 2
Display resolution: 800x600
Input impedance: 1MΩ/10pF
Related items: PKT-AKKU3
Standard equipment: mains cable; oscilloscope probe x2; test adapter; USB cable; user's manual
Measuring instrument features: mathematical functions: addition, subtraction, division, multiplication and FFT; Pass/Fail function
Sampling: 1,25Gsps
Type of oscilloscope: digital
Trigger: falling-edge; pulse; rising-edge; slope; video signal
Input coupling: AC, DC, GND
Vertical resolution: 8bit
Horizontal accuracy: ±3%
Trigger modes: automatic; normal; single
Trigger source: CH1; CH2; external signal
Trigger coupling: AC; DC; highpass; lowpass
Max. input voltage: 400V
Band: 300MHz
Rise time: ≤1.17ns
Input sensitivity: 2mV/div...10V/div
Time base: 1n...100s/div
Software: included
Memory record length: 10Mpts
Connectors for the country: Europe
Operating temperature: 0...40°C
Kind of display used: LCD TFT 8"
Anzahl je Verpackung: 1 Stücke
Produkt ist nicht verfügbar
Produktrezensionen
Produktbewertung abgeben
Technische Details P 1270 PEAKTECH
Category: Digital Oscilloscopes, Description: Oscilloscope: digital; Ch: 2; 300MHz; 1,25Gsps; 10Mpts; LCD TFT 8", Interface: LAN; USB; VGA, Supply voltage: 100...240V AC, Power consumption: 18W, Body dimensions: 348x170x78mm, Number of channels: 2, Display resolution: 800x600, Input impedance: 1MΩ/10pF, Related items: PKT-AKKU3, Standard equipment: mains cable; oscilloscope probe x2; test adapter; USB cable; user's manual, Measuring instrument features: mathematical functions: addition, subtraction, division, multiplication and FFT; Pass/Fail function, Sampling: 1,25Gsps, Type of oscilloscope: digital, Trigger: falling-edge; pulse; rising-edge; slope; video signal, Input coupling: AC, DC, GND, Vertical resolution: 8bit, Horizontal accuracy: ±3%, Trigger modes: automatic; normal; single, Trigger source: CH1; CH2; external signal, Trigger coupling: AC; DC; highpass; lowpass, Max. input voltage: 400V, Band: 300MHz, Rise time: ≤1.17ns, Input sensitivity: 2mV/div...10V/div, Time base: 1n...100s/div, Software: included, Memory record length: 10Mpts, Connectors for the country: Europe, Operating temperature: 0...40°C, Kind of display used: LCD TFT 8", Anzahl je Verpackung: 1 Stücke.
Weitere Produktangebote P 1270
Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis |
---|---|---|---|---|---|
![]() |
P 1270 | Hersteller : PEAKTECH |
![]() Description: Oscilloscope: digital; Ch: 2; 300MHz; 1,25Gsps; 10Mpts; LCD TFT 8" Interface: LAN; USB; VGA Supply voltage: 100...240V AC Power consumption: 18W Body dimensions: 348x170x78mm Number of channels: 2 Display resolution: 800x600 Input impedance: 1MΩ/10pF Related items: PKT-AKKU3 Standard equipment: mains cable; oscilloscope probe x2; test adapter; USB cable; user's manual Measuring instrument features: mathematical functions: addition, subtraction, division, multiplication and FFT; Pass/Fail function Sampling: 1,25Gsps Type of oscilloscope: digital Trigger: falling-edge; pulse; rising-edge; slope; video signal Input coupling: AC, DC, GND Vertical resolution: 8bit Horizontal accuracy: ±3% Trigger modes: automatic; normal; single Trigger source: CH1; CH2; external signal Trigger coupling: AC; DC; highpass; lowpass Max. input voltage: 400V Band: 300MHz Rise time: ≤1.17ns Input sensitivity: 2mV/div...10V/div Time base: 1n...100s/div Software: included Memory record length: 10Mpts Connectors for the country: Europe Operating temperature: 0...40°C Kind of display used: LCD TFT 8" |
Produkt ist nicht verfügbar |
