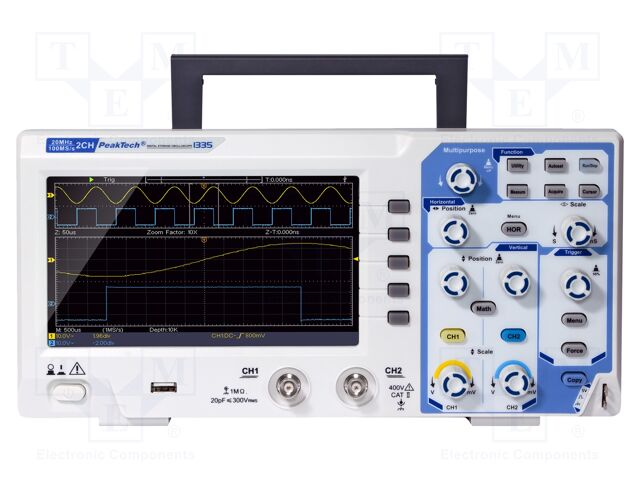

P 1335 PEAKTECH
Hersteller: PEAKTECH
Category: Digital Oscilloscopes
Description: Oscilloscope: digital; Ch: 2; 20MHz; 100Msps; 10kpts; LCD TFT 7"
Body dimensions: 301x152x70mm
Operating temperature: 0...40°C
Supply voltage: 100...240V AC
Power consumption: 15W
Interface: USB
Number of channels: 2
Display resolution: 800x600
Input impedance: 1MΩ/20pF
Standard equipment: mains cable; oscilloscope probe x2; USB cable; user's manual
Measuring instrument features: mathematical functions: addition, subtraction, division, multiplication and FFT
Sampling: 100Msps
Type of oscilloscope: digital
Trigger: falling-edge; rising-edge; video signal
Input coupling: AC, DC, GND
Vertical resolution: 8bit
Horizontal accuracy: ±3%
Trigger modes: automatic; normal; single
Trigger source: CH1; CH2
Trigger coupling: AC; DC
Max. input voltage: 400V
Plug variant: EU
Band: 20MHz
Rise time: ≤17.5ns
Input sensitivity: 5mV/div...5V/div
Time base: 5n...1ks/div
Software: included
Memory record length: 10kpts
Kind of display used: LCD TFT 7"
Anzahl je Verpackung: 1 Stücke
Category: Digital Oscilloscopes
Description: Oscilloscope: digital; Ch: 2; 20MHz; 100Msps; 10kpts; LCD TFT 7"
Body dimensions: 301x152x70mm
Operating temperature: 0...40°C
Supply voltage: 100...240V AC
Power consumption: 15W
Interface: USB
Number of channels: 2
Display resolution: 800x600
Input impedance: 1MΩ/20pF
Standard equipment: mains cable; oscilloscope probe x2; USB cable; user's manual
Measuring instrument features: mathematical functions: addition, subtraction, division, multiplication and FFT
Sampling: 100Msps
Type of oscilloscope: digital
Trigger: falling-edge; rising-edge; video signal
Input coupling: AC, DC, GND
Vertical resolution: 8bit
Horizontal accuracy: ±3%
Trigger modes: automatic; normal; single
Trigger source: CH1; CH2
Trigger coupling: AC; DC
Max. input voltage: 400V
Plug variant: EU
Band: 20MHz
Rise time: ≤17.5ns
Input sensitivity: 5mV/div...5V/div
Time base: 5n...1ks/div
Software: included
Memory record length: 10kpts
Kind of display used: LCD TFT 7"
Anzahl je Verpackung: 1 Stücke
auf Bestellung 1 Stücke:
Lieferzeit 7-14 Tag (e)
Anzahl | Preis ohne MwSt |
---|---|
1+ | 411.24 EUR |
3+ | 399.4 EUR |
