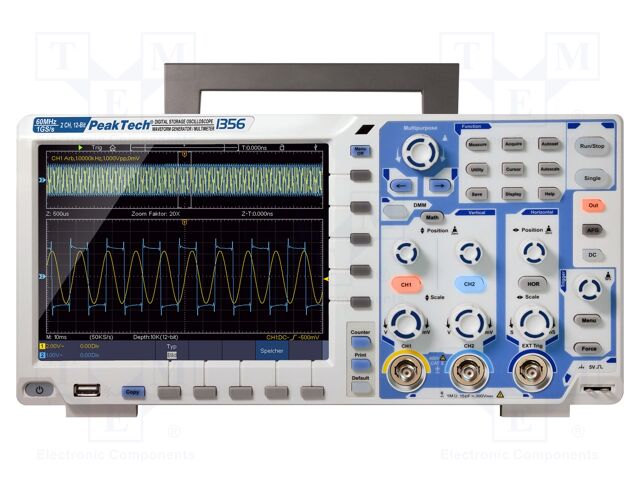

P 1356 PEAKTECH

Category: Digital Oscilloscopes, Description: Oscilloscope: digital; Ch: 2; 60MHz; 1Gsps; 40Mpts; LCD TFT 8"; 24W, Type of oscilloscope: digital, Number of channels: 2, Band: 60MHz, Sampling: 1Gsps, Memory record length: 40Mpts, Kind of display used: LCD TFT 8", Trigger modes: automatic; normal; single, Trigger: falling-edge; pulse; rising-edge; slope; video signal, Trigger source: CH1; CH2; line, Time base: 2n...1ks/div, Max. input voltage: 400V, Vertical resolution: 12bit, Input coupling: AC, DC, GND, Trigger coupling: AC; DC; highpass; lowpass, Horizontal accuracy: ±3%, Interface: LAN; USB; VGA, Rise time: ≤5.8ns, Input impedance: 1MΩ/15pF, Input sensitivity: 1mV/div...10V/div, Additional functions: arbitrary waveform generator; multimeter, Measuring instrument features: mathematical functions: addition, subtraction, division, multiplication and FFT, Standard equipment: case; mains cable; oscilloscope probe x2; USB cable; user's manual, Plug variant: EU, Power consumption: 24W, Operating temperature: 0...40°C, Body dimensions: 340x180x90mm, Related items: PKT-AKKU6, Software: included, Display resolution: 800x600, Touchpad: yes, Supply voltage: 100...240V AC, Anzahl je Verpackung: 1 Stücke.
