Produkte > PEAKTECH > P 1370
P 1370

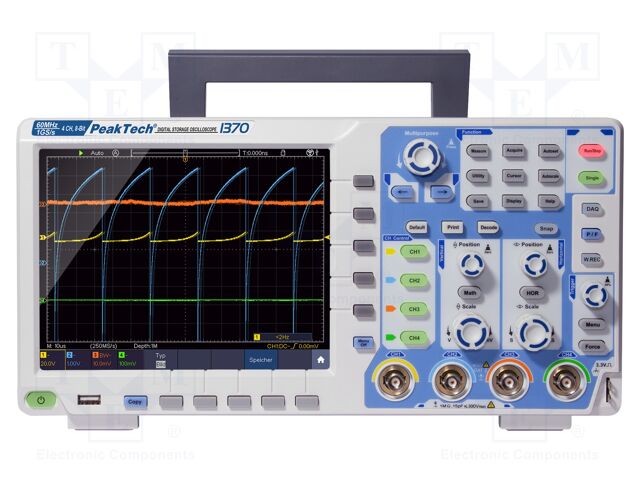

P 1370 PEAKTECH


pVersion=0046&contRep=ZT&docId=005056AB90B41EDABCCDD91F630220C7&compId=P%201340_EN.pdf?ci_sign=b9b0f60b7258eae360f12b415c906c921bb54951 pVersion=0046&contRep=ZT&docId=005056AB90B41EDABCCDD91F6301C0C7&compId=P%201340_DE.pdf?ci_sign=e562be1f823dfc5e2927f6ef621b648b0e6d1cbf Hersteller: PEAKTECH
Category: Digital Oscilloscopes
Description: Oscilloscope: digital; Ch: 4; 60MHz; 1Gsps; 40Mpts; LCD TFT 8"; 24W
Type of oscilloscope: digital
Number of channels: 4
Band: 60MHz
Sampling: 1Gsps
Memory record length: 40Mpts
Kind of display used: LCD TFT 8"
Trigger modes: automatic; normal; single
Trigger: falling-edge; pulse; rising-edge; slope; video signal
Trigger source: CH1; CH2; CH3; CH4; line
Time base: 2n...1ks/div
Max. input voltage: 400V
Vertical resolution: 8bit
Input coupling: AC, DC, GND
Trigger coupling: AC; DC; highpass; lowpass
Horizontal accuracy: ±3%
Interface: LAN; USB; VGA; WiFi
Rise time: ≤5.8ns
Input impedance: 1MΩ/15pF
Input sensitivity: 1mV/div...10V/div
Additional functions: arbitrary waveform generator; multimeter
Measuring instrument features: mathematical functions: addition, subtraction, division, multiplication and FFT; protocols analyse: CAN
Standard equipment: case; mains cable; oscilloscope probe x2; USB cable; user's manual
Power consumption: 24W
Operating temperature: 0...40°C
Body dimensions: 340x180x90mm
Related items: PKT-AKKU6
Supply voltage: 100...240V AC
Software: included
Display resolution: 800x600
Touchpad: yes
Connectors for the country: Europe
Anzahl je Verpackung: 1 Stücke
Produkt ist nicht verfügbar

Im Einkaufswagen  Stück im Wert von  UAH
Produktrezensionen
Produktbewertung abgeben

Technische Details P 1370 PEAKTECH

Category: Digital Oscilloscopes, Description: Oscilloscope: digital; Ch: 4; 60MHz; 1Gsps; 40Mpts; LCD TFT 8"; 24W, Type of oscilloscope: digital, Number of channels: 4, Band: 60MHz, Sampling: 1Gsps, Memory record length: 40Mpts, Kind of display used: LCD TFT 8", Trigger modes: automatic; normal; single, Trigger: falling-edge; pulse; rising-edge; slope; video signal, Trigger source: CH1; CH2; CH3; CH4; line, Time base: 2n...1ks/div, Max. input voltage: 400V, Vertical resolution: 8bit, Input coupling: AC, DC, GND, Trigger coupling: AC; DC; highpass; lowpass, Horizontal accuracy: ±3%, Interface: LAN; USB; VGA; WiFi, Rise time: ≤5.8ns, Input impedance: 1MΩ/15pF, Input sensitivity: 1mV/div...10V/div, Additional functions: arbitrary waveform generator; multimeter, Measuring instrument features: mathematical functions: addition, subtraction, division, multiplication and FFT; protocols analyse: CAN, Standard equipment: case; mains cable; oscilloscope probe x2; USB cable; user's manual, Power consumption: 24W, Operating temperature: 0...40°C, Body dimensions: 340x180x90mm, Related items: PKT-AKKU6, Supply voltage: 100...240V AC, Software: included, Display resolution: 800x600, Touchpad: yes, Connectors for the country: Europe, Anzahl je Verpackung: 1 Stücke.
