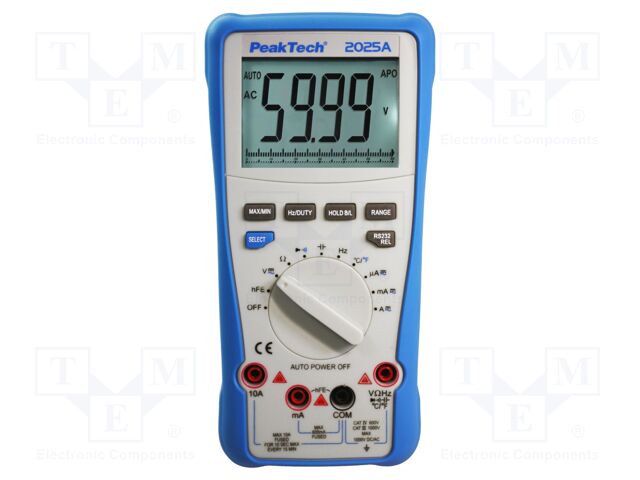

P 2025 A PEAKTECH
Hersteller: PEAKTECH
Category: Portable digital multimeters
Description: Digital multimeter; USB; LCD; 3 5/6 digits (5999); -20÷1000°C
Capacitance measuring range: 60nF; 0.6µF; 6µF; 60µF; 600µF
Battery/ rechargeable battery: battery 6LR61 9V x1
Capacitance measuring accuracy: ±(3.5%+ 20 digit)
Measuring instrument features: automatic power-off; HOLD function; manual ranging; MIN/MAX function
Power supply: battery 6LR61 9V x1
DC voltage measuring accuracy: ±(0.5% + 3 digit)
Standard equipment: case; test leads; thermocouple; thermocouple adapter; USB cable; user's manual
DC current measuring accuracy: ±(0.8% + 10 digit)
Kind of display used: LCD
Temperature measuring range: -20...1000°C
Continuity test: acoustic indication; <50Ω
DC current measuring range: 600µA; 6mA; 60mA; 600mA; 6A; 10A
DC voltage measuring range: 600mV; 6V; 60V; 600V; 1kV
AC current measuring accuracy: ±(1% + 5 digit)
Diode test: 0.4mA @2V
Bargraph: yes
Frequency measuring range: 10Hz; 100Hz; 1kHz; 10kHz; 100kHz; 1MHz; 20MHz
AC voltage measuring range: 6V; 60V; 600V; 1kV
Resistance measuring range: 600Ω; 6kΩ; 60kΩ; 600kΩ; 6MΩ; 60MΩ
Temperature measurement accuracy: ±(1.5% + 15 digit)
Frequency measuring accuracy: ±(0.5%+4 digit)
Interface: USB
Dimensions (W x H x D): 201x101x68mm
Conform to the norm: CAT III 1000V; EN 61010
Resistance measuring accuracy: ±(0.8%+3 digit)
Illumination: yes
AC voltage measuring accuracy: ±(0.8% + 5 digit)
Type of meter: digital multimeter
Software: included
Measurement: AC current; AC voltage; capacitance; continuity; DC current; DC voltage; frequency; resistance; temperature; transistors' gain hFE
Display parameters: 3 5/6 digits (5999)
AC current measuring range: 600µA; 6mA; 60mA; 600mA; 6A; 10A
