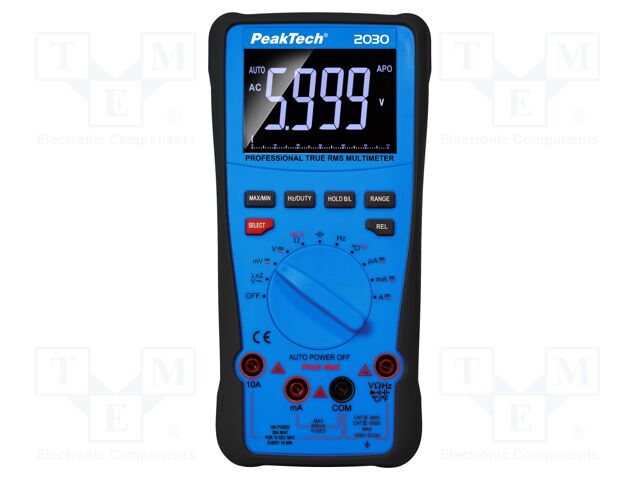

P 2030 PEAKTECH

Category: Portable digital multimeters, Description: Digital multimeter; LCD; 3,83 digit (6000); Temp: -20÷1000°C, Type of meter: digital multimeter, Measurement: AC current; AC voltage; capacitance; continuity; DC current; DC voltage; frequency; resistance; temperature, Kind of display used: LCD, Display parameters: 3,83 digit (6000), DC voltage measuring range: 60mV; 600mV; 6V; 60V; 600V; 1kV, DC voltage measuring accuracy: ±(0.5% + 3 digit); ±(0.8% + 10 digit) @1kV, AC voltage measuring range: 60mV; 600mV; 6V; 60V; 600V; 1kV, AC voltage measuring accuracy: ±(0.8% + 5 digit); ±(1.2% + 10 digit) @1kV, DC current measuring range: 600µA; 6mA; 60mA; 600mA; 6A; 10A, DC current measuring accuracy: ±(0.8% + 10 digit) @(600µA...60mA); ±(1.2% + 8 digit) @600mA; ±(2% + 5 digit) @(6A...10A), AC current measuring range: 600µA; 6mA; 60mA; 600mA; 6A; 10A, AC current measuring accuracy: ±(1% + 15 digit)@600µA; ±(1% + 15 digit)@6000µA; ±(1% + 15 digit)@60mA; ±(3% + 10 digit)@6A; ±(3% + 10 digit)@10A, Resistance measuring range: 600Ω; 6kΩ; 60kΩ; 600kΩ; 6MΩ; 60MΩ, Capacitance measuring range: 60nF; 600nF; 6µF; 60µF; 600µF; 6mF, Capacitance measuring accuracy: ±(3.5%+ 20 digit); ±(5%+10 digit) @ 600µF...6mF, Frequency measuring range: 10Hz; 100Hz; 1kHz; 10kHz; 100kHz; 1MHz; 20MHz, Frequency measuring accuracy: ±(0.5%+4 digit), Temperature measuring range: -20...1000°C, Resistance measuring accuracy: ±(0.8%+3 digit)@(6kΩ); ±(0.8%+3 digit)@(60kΩ); ±(0.8%+3 digit)@(600kΩ); ±(0.8%+3 digit)@(6MΩ); ±(0.8%+5 digit)@(600Ω); ±(1%+25 digit)@(60MΩ), Diode test: 0.4mA @2V, Continuity test: acoustic indication; .
