Produkte > PEAKTECH > P 2035
P 2035
  • P 2035
  • P 2035
  • P 2035
  • P 2035
  • P 2035
  • P 2035

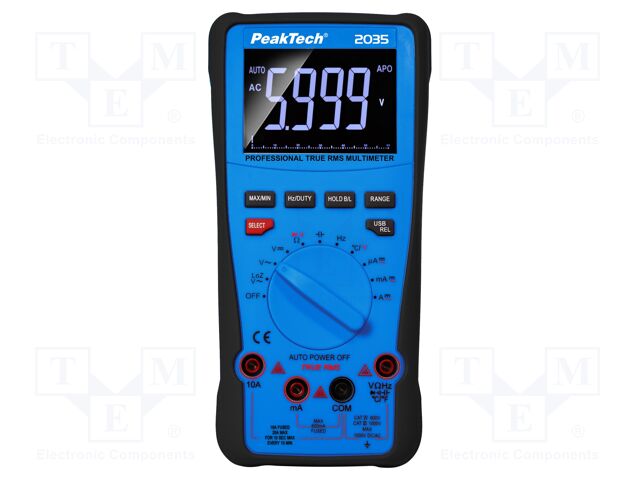

P 2035 PEAKTECH


PeakTech_2035_11-2021_DE-EN.pdf Hersteller: PEAKTECH
Category: Portable digital multimeters
Description: Digital multimeter; USB; LCD; 3 5/6 digits (5999); 201x101x68mm
Type of meter: digital multimeter
AC voltage measuring accuracy: ±(0.8% + 5 digit); ±(1.2% + 10 digit) @1kV
AC voltage measuring range: 6V; 60V; 600V; 1kV
DC voltage measuring accuracy: ±(0.5% + 3 digit); ±(0.8% + 10 digit) @1kV
DC voltage measuring range: 600mV; 6V; 60V; 600V; 1kV
Resistance measuring accuracy: ±(0.8%+3 digit)@(6kΩ); ±(0.8%+3 digit)@(60kΩ); ±(0.8%+3 digit)@(600kΩ); ±(0.8%+3 digit)@(6MΩ); ±(0.8%+5 digit)@(600Ω); ±(1%+25 digit)@(60MΩ)
Resistance measuring range: 600Ω; 6kΩ; 60kΩ; 600kΩ; 6MΩ; 60MΩ
Capacitance measuring accuracy: ±(3.5%+ 20 digit); ±(5%+10 digit) @ 600µF...6mF
Capacitance measuring range: 60nF; 600nF; 6µF; 60µF; 600µF; 6mF
Frequency measuring accuracy: ±(0.5%+4 digit)
Frequency measuring range: 10Hz; 100Hz; 1kHz; 10kHz; 100kHz; 1MHz; 20MHz
Standard equipment: adapter; soft case; test probe x1; thermocouple; USB cable; user's manual
Conform to the norm: CAT III 1000V; CAT IV 600V; EN 61010
Measuring instrument features: automatic power-off; HOLD function; MIN/MAX function; overload protection; overvoltage protection
Kind of display used: LCD
Measurement: AC current; AC voltage; capacitance; continuity; DC current; DC voltage; frequency; resistance; temperature
Battery/ rechargeable battery: battery 6F22 9V x1
Power supply: battery 6F22 9V x1
Dimensions (W x H x D): 201x101x68mm
Display parameters: 3 5/6 digits (5999)
Continuity test: acoustic indication; <50Ω
Diode test: 0.4mA @2V
AC current measuring accuracy: ±(1% + 15 digit)@600µA; ±(1% + 15 digit)@6000µA; ±(1% + 15 digit)@60mA; ±(3% + 10 digit)@6A; ±(3% + 10 digit)@10A
DC current measuring accuracy: ±(0.8% + 10 digit) @(600µA...60mA); ±(1.2% + 8 digit) @600mA; ±(2% + 5 digit) @(6A...10A)
Temperature measurement accuracy: ±(1% + 50 digit) @(-20°C...620°C); ±(1.5% + 15 digit) @(620°C...1000°C)
Interface: USB
Temperature measuring range: -20...1000°C
AC current measuring range: 600µA; 6mA; 60mA; 600mA; 6A; 10A
DC current measuring range: 600µA; 6mA; 60mA; 600mA; 6A; 10A
Software: included
Anzahl je Verpackung: 1 Stücke
auf Bestellung 3 Stücke:

Lieferzeit 7-14 Tag (e)
Anzahl Preis
1+97.60 EUR
3+96.30 EUR
