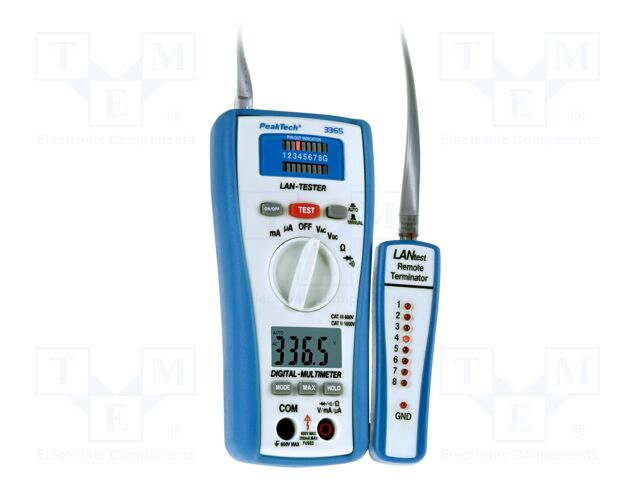

P 3365 PEAKTECH
Hersteller: PEAKTECHCategory: Portable digital multimeters
Description: Digital multimeter; LCD; 3,5 digit (2000); VAC: 2V,20V,200V,600V
Measurement: AC current; AC voltage; continuity; DC current; DC voltage; resistance
Continuity test: acoustic indication; <150Ω
Standard equipment: case; test leads; user's manual
Measuring instrument features: automatic power-off; autoranging
Test: wiring RJ45
Power supply: battery 6LR61 9V x1; battery LR03 AAA 1,5V x2
Battery/ rechargeable battery: battery 6LR61 9V x1; battery LR03 AAA 1,5V x2
Type of meter: digital multimeter
Conform to the norm: CAT III 600V; EN 61010
Kind of display used: LCD
AC current measuring range: 0.2mA; 2mA; 20mA; 200mA
DC voltage measuring range: 200mV; 2V; 20V; 200V; 600V
DC current measuring range: 0.2mA; 2mA; 20mA; 200mA
Diode test: 1mA @1.5V
AC voltage measuring range: 2V; 20V; 200V; 600V
Dimensions (W x H x D): 75x162x44mm
Resistance measuring range: 200Ω; 2kΩ; 20kΩ; 200kΩ; 2MΩ; 20MΩ
DC voltage measuring accuracy: ±(0.5% + 3 digit)
Resistance measuring accuracy: ±(0.8%+5 digit)
DC current measuring accuracy: ±(1.5% + 3 digit)
AC voltage measuring accuracy: ±(1% + 5 digit)
AC current measuring accuracy: ±(1.8% + 8 digit)
Display parameters: 3,5 digit (2000)
