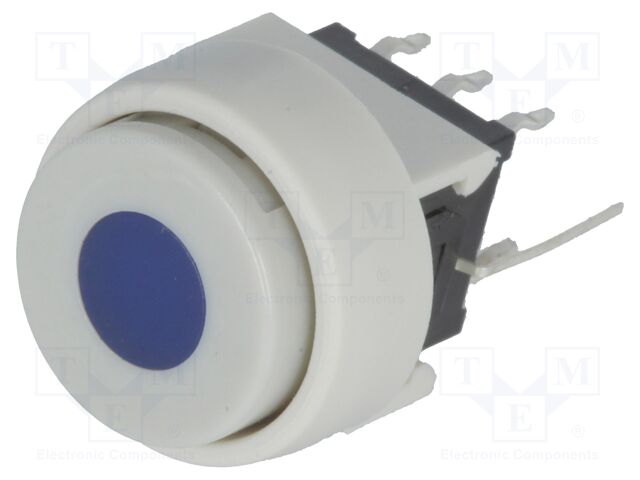

PB6136AL-4 HIGHLY ELECTRIC

Category: Keypad Switches, Description: Switch: keypad; Pos: 2; DPDT; 0.1A/30VDC; white; LED; blue; THT; 1.5N, Type of switch: keypad, Contacts configuration: DPDT, Number of positions: 2, Stable positions number: 2, Switching method: ON-ON, Illumination: LED, Max. contact resistance:: 50mΩ, Leads: for PCB; straight, Electrical life: 10000 cycles, Button shape: round, Operating temperature: -10...80°C, Operating Force: 1.5N, Backlight colour: blue, Body dimensions: Ø12.5mm, Min. insulation resistance: 0.1GΩ, Terminal pitch: 2.54x5.08mm, Mounting: THT, Manufacturer series: PB613, Button height: 12.5mm, DC contacts rating @R: 0.1A / 30V DC, Actuator colour: white.
