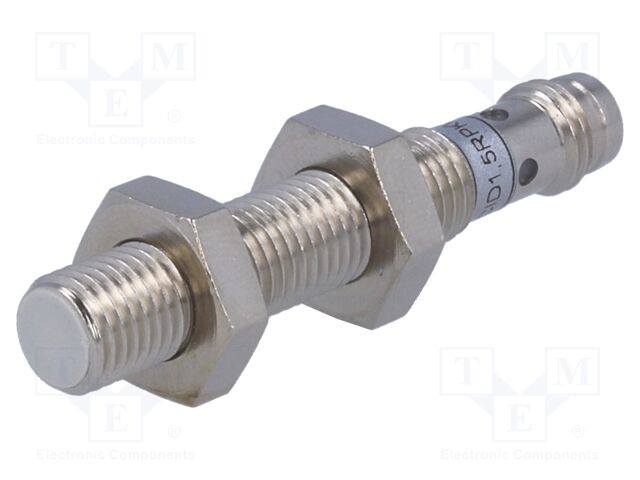

PCID1,5RPKW-M8-50-M8 SELS
Hersteller: SELS
Category: DC Cylindrical Inductive Sensors
Description: Sensor: inductive; OUT: PNP / NC; 0÷1.5mm; 10÷30VDC; M8; IP67; 200mA
Operating temperature: -25...70°C
Range: 0...1.5mm
Type of sensor: inductive
Supply voltage: 10...30V DC
Kind of forehead: embedded
Number of pins: 3
Switch housing: M8
Plating material: nickel
Overall length: 50mm
Body material: brass
Switching frequency max: 3kHz
Connection: M8 male
Output configuration: PNP / NC
Max. operating current: 200mA
IP rating: IP67
| Anzahl | Privatkunde |
|---|---|
| 2+ | 42.82 EUR |
| 5+ | 40.14 EUR |
| 10+ | 38.02 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details PCID1,5RPKW-M8-50-M8 SELS
Category: DC Cylindrical Inductive Sensors, Description: Sensor: inductive; OUT: PNP / NC; 0÷1.5mm; 10÷30VDC; M8; IP67; 200mA, Operating temperature: -25...70°C, Range: 0...1.5mm, Type of sensor: inductive, Supply voltage: 10...30V DC, Kind of forehead: embedded, Number of pins: 3, Switch housing: M8, Plating material: nickel, Overall length: 50mm, Body material: brass, Switching frequency max: 3kHz, Connection: M8 male, Output configuration: PNP / NC, Max. operating current: 200mA, IP rating: IP67.
