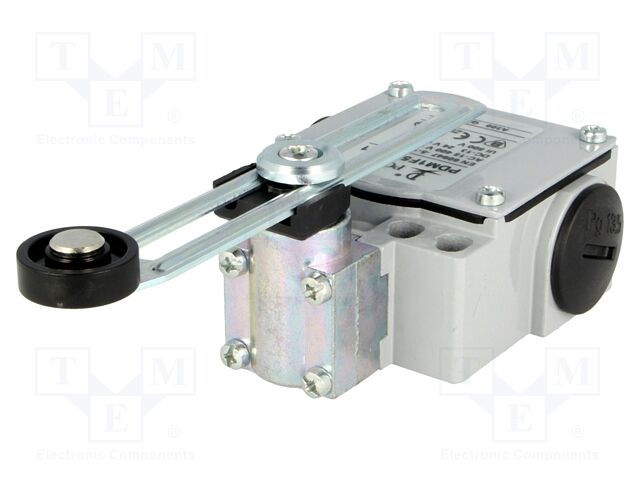

PDM1F51PZ11

PDM1F51PZ11 POKÓJ

pokoj_limit_switches.pdf
Hersteller: POKÓJ
Category: Limit Switches
Description: Limit switch; NO + NC; 10A; max.240VAC; max.250VDC; PG13,5; IP65
Type of sensor: limit switch
Kind of actuator: adjustable lever R 45,5-117,5mm, plastic roller Ø18mm
Output configuration: NO + NC
Contact current max.: 10A
Switched voltage: max. 240V AC; max. 250V DC
Connection: PG13,5
IP rating: IP65
Body dimensions: 54.5x59x32mm
Number of mounting holes: 4
Operating temperature: -25...70°C
Body material: metal
AC contacts rating @R: 3A / 240V AC
DC contacts rating @R: 2.8A / 24V DC
Switching frequency max: 1Hz
Mounting holes pitch: 20...22mm; 40...42mm
Switches features: snap action contacts
auf Bestellung 3 Stücke:
Lieferzeit 14-21 Tag (e)
Im Einkaufswagen  Stück im Wert von  UAH
Produktrezensionen
Produktbewertung abgeben

Technische Details PDM1F51PZ11 POKÓJ

Category: Limit Switches, Description: Limit switch; NO + NC; 10A; max.240VAC; max.250VDC; PG13,5; IP65, Type of sensor: limit switch, Kind of actuator: adjustable lever R 45,5-117,5mm, plastic roller Ø18mm, Output configuration: NO + NC, Contact current max.: 10A, Switched voltage: max. 240V AC; max. 250V DC, Connection: PG13,5, IP rating: IP65, Body dimensions: 54.5x59x32mm, Number of mounting holes: 4, Operating temperature: -25...70°C, Body material: metal, AC contacts rating @R: 3A / 240V AC, DC contacts rating @R: 2.8A / 24V DC, Switching frequency max: 1Hz, Mounting holes pitch: 20...22mm; 40...42mm, Switches features: snap action contacts.
