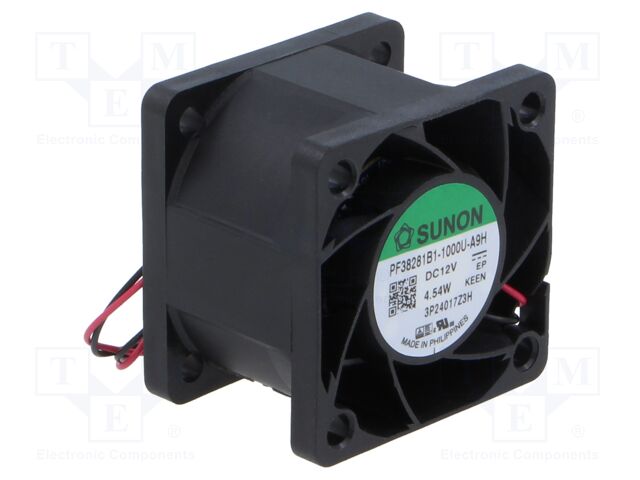

PF38281B1-1000U-A9H SUNON
Hersteller: SUNONCategory: DC12V Fans
Description: Fan: DC; axial; 12VDC; 38x38x28mm; 30.75m3/h; 57.4dBA; ball; 28AWG
Type of fan: DC
Kind of fan: axial
Supply voltage: 12V DC
Operating voltage: 6.5...13.2V DC
Fan dimensions: 38x38x28mm
Power consumption: 4.54W
Current rating: 378mA
Fan efficiency: 30.75m3/h
Noise level: 57.4dBA
Kind of Bearing: ball
Rotational rate/speed: 16000 (±10%)rpm
Min. insulation resistance: 10MΩ
Impeller material: thermoplastic
Enclosure material: thermoplastic
Insulation class: A
Leads: leads x2
Operating temperature: -10...70°C
Flammability rating: UL94V-0
Additional functions: autorestart
Fan motor: brushless DC
Static pressure: 39.12mm H2O
Wire size: 28AWG
Anzahl je Verpackung: 1 Stücke
auf Bestellung 490 Stücke:
Lieferzeit 7-14 Tag (e)
| Anzahl | Preis |
|---|---|
| 6+ | 12.9 EUR |
| 10+ | 11.55 EUR |
| 50+ | 10.74 EUR |
| 200+ | 10.32 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details PF38281B1-1000U-A9H SUNON
Category: DC12V Fans, Description: Fan: DC; axial; 12VDC; 38x38x28mm; 30.75m3/h; 57.4dBA; ball; 28AWG, Type of fan: DC, Kind of fan: axial, Supply voltage: 12V DC, Operating voltage: 6.5...13.2V DC, Fan dimensions: 38x38x28mm, Power consumption: 4.54W, Current rating: 378mA, Fan efficiency: 30.75m3/h, Noise level: 57.4dBA, Kind of Bearing: ball, Rotational rate/speed: 16000 (±10%)rpm, Min. insulation resistance: 10MΩ, Impeller material: thermoplastic, Enclosure material: thermoplastic, Insulation class: A, Leads: leads x2, Operating temperature: -10...70°C, Flammability rating: UL94V-0, Additional functions: autorestart, Fan motor: brushless DC, Static pressure: 39.12mm H2O, Wire size: 28AWG, Anzahl je Verpackung: 1 Stücke.
Weitere Produktangebote PF38281B1-1000U-A9H nach Preis ab 10.32 EUR bis 12.9 EUR
| Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
PF38281B1-1000U-A9H | Hersteller : SUNON |
Category: DC12V Fans Description: Fan: DC; axial; 12VDC; 38x38x28mm; 30.75m3/h; 57.4dBA; ball; 28AWG Type of fan: DC Kind of fan: axial Supply voltage: 12V DC Operating voltage: 6.5...13.2V DC Fan dimensions: 38x38x28mm Power consumption: 4.54W Current rating: 378mA Fan efficiency: 30.75m3/h Noise level: 57.4dBA Kind of Bearing: ball Rotational rate/speed: 16000 (±10%)rpm Min. insulation resistance: 10MΩ Impeller material: thermoplastic Enclosure material: thermoplastic Insulation class: A Leads: leads x2 Operating temperature: -10...70°C Flammability rating: UL94V-0 Additional functions: autorestart Fan motor: brushless DC Static pressure: 39.12mm H2O Wire size: 28AWG |
auf Bestellung 490 Stücke: Lieferzeit 14-21 Tag (e) |
|
||||||||||
| PF38281B1-1000U-A9H | Hersteller : Sunon Fans |
Description: FAN AXIAL 38X28MM 12VDC WIRE Features: Auto Restart Packaging: Bulk Voltage - Rated: 12VDC Size / Dimension: Square - 38mm L x 38mm H Bearing Type: Ball RPM: 16000 RPM Air Flow: 18.1 CFM (0.507m³/min) Width: 28.00mm Termination: 2 Wire Leads Approval Agency: CCC, CE, cURus, TUV Fan Type: Tubeaxial Noise: 51.8dB(A) Static Pressure: 1.540 in H2O (383.6 Pa) Power (Watts): 3.78 W |
Produkt ist nicht verfügbar |
||||||||||||
 |
PF38281B1-1000U-A9H | Hersteller : Sunon |
DC Fans DC Axial Fan, 38x38x28mm, 12VDC, Ball, Lead Wires, Auto Restart, Low Vibration |
Produkt ist nicht verfügbar |
