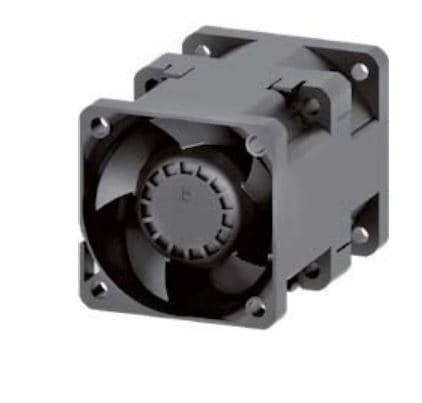

PF40561B1-1000U-A9H SUNON
Hersteller: SUNON
Category: DC12V Fans
Description: Fan: DC; axial; 12VDC; 40x40x56mm; 45.7m3/h; 68dBA; ball bearing
Enclosure material: thermoplastic
Current rating: 979mA
Supply voltage: 12V DC
Leads: lead x4
Operating voltage: 6.5...13.2V
Type of fan: DC
Fan dimensions: 40x40x56mm
Fan motor: brushless DC
Impeller material: thermoplastic
Flammability rating: UL94V-0
Insulation class: A
Kind of Bearing: ball bearing
Fan efficiency: 45.7m3/h
Static pressure: 67.06mm H2O
Noise level: 68dBA
Rotational rate/speed: 15000 (±10%)rpm; 18000 (±10%)rpm
Power consumption: 11.75W
Wire size: 28AWG
Cable length: 1.2m
Additional functions: autorestart
Kind of fan: axial
Min. insulation resistance: 10MΩ
Operating temperature: -10...70°C
Anzahl je Verpackung: 1 Stücke
Category: DC12V Fans
Description: Fan: DC; axial; 12VDC; 40x40x56mm; 45.7m3/h; 68dBA; ball bearing
Enclosure material: thermoplastic
Current rating: 979mA
Supply voltage: 12V DC
Leads: lead x4
Operating voltage: 6.5...13.2V
Type of fan: DC
Fan dimensions: 40x40x56mm
Fan motor: brushless DC
Impeller material: thermoplastic
Flammability rating: UL94V-0
Insulation class: A
Kind of Bearing: ball bearing
Fan efficiency: 45.7m3/h
Static pressure: 67.06mm H2O
Noise level: 68dBA
Rotational rate/speed: 15000 (±10%)rpm; 18000 (±10%)rpm
Power consumption: 11.75W
Wire size: 28AWG
Cable length: 1.2m
Additional functions: autorestart
Kind of fan: axial
Min. insulation resistance: 10MΩ
Operating temperature: -10...70°C
Anzahl je Verpackung: 1 Stücke
Produkt ist nicht verfügbar
Produktrezensionen
Produktbewertung abgeben
Technische Details PF40561B1-1000U-A9H SUNON
Category: DC12V Fans, Description: Fan: DC; axial; 12VDC; 40x40x56mm; 45.7m3/h; 68dBA; ball bearing, Enclosure material: thermoplastic, Current rating: 979mA, Supply voltage: 12V DC, Leads: lead x4, Operating voltage: 6.5...13.2V, Type of fan: DC, Fan dimensions: 40x40x56mm, Fan motor: brushless DC, Impeller material: thermoplastic, Flammability rating: UL94V-0, Insulation class: A, Kind of Bearing: ball bearing, Fan efficiency: 45.7m3/h, Static pressure: 67.06mm H2O, Noise level: 68dBA, Rotational rate/speed: 15000 (±10%)rpm; 18000 (±10%)rpm, Power consumption: 11.75W, Wire size: 28AWG, Cable length: 1.2m, Additional functions: autorestart, Kind of fan: axial, Min. insulation resistance: 10MΩ, Operating temperature: -10...70°C, Anzahl je Verpackung: 1 Stücke.
