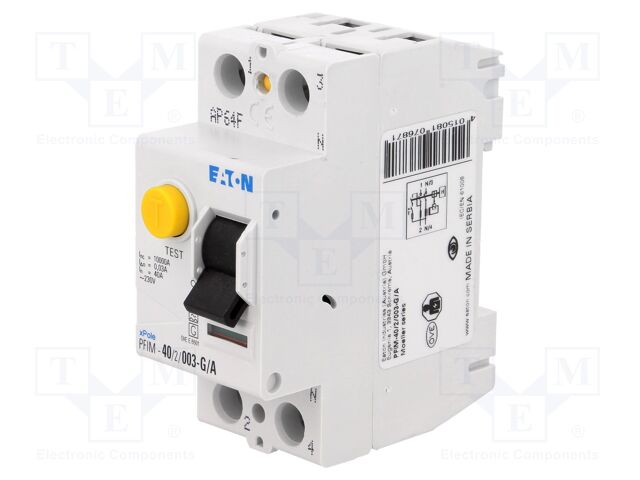

PFIM-40/2/003-G/A EATON ELECTRIC
Hersteller: EATON ELECTRIC
Category: RCD Circuit Breakers
Description: RCD breaker; Inom: 40A; Ires: 30mA; Max surge current: 3kA; Poles: 2
Manufacturer series: PFIM
IP rating: IP40
Conform to the norm: IEC EN 61008
Mounting: for DIN rail mounting
Trade name: RCD
Type of protection: RCD breaker
Tripping: short-time delayed
Kind of circuit breaker: type G
Operating temperature: -25...40°C
Cross section of connecting wires: 1.5...35mm2
Residual current: 30mA
Current rating: 40A
Number of poles: 2
Mechanical durability: 20000 cycles
Rated voltage: 400V AC
Max surge current: 3kA
Electrical life: 4000 cycles
Short circuit breaking capacity: 10kA
Category: RCD Circuit Breakers
Description: RCD breaker; Inom: 40A; Ires: 30mA; Max surge current: 3kA; Poles: 2
Manufacturer series: PFIM
IP rating: IP40
Conform to the norm: IEC EN 61008
Mounting: for DIN rail mounting
Trade name: RCD
Type of protection: RCD breaker
Tripping: short-time delayed
Kind of circuit breaker: type G
Operating temperature: -25...40°C
Cross section of connecting wires: 1.5...35mm2
Residual current: 30mA
Current rating: 40A
Number of poles: 2
Mechanical durability: 20000 cycles
Rated voltage: 400V AC
Max surge current: 3kA
Electrical life: 4000 cycles
Short circuit breaking capacity: 10kA
auf Bestellung 1 Stücke:
Lieferzeit 14-21 Tag (e)
| Anzahl | Preis |
|---|---|
| 1+ | 205.89 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details PFIM-40/2/003-G/A EATON ELECTRIC
Category: RCD Circuit Breakers, Description: RCD breaker; Inom: 40A; Ires: 30mA; Max surge current: 3kA; Poles: 2, Manufacturer series: PFIM, IP rating: IP40, Conform to the norm: IEC EN 61008, Mounting: for DIN rail mounting, Trade name: RCD, Type of protection: RCD breaker, Tripping: short-time delayed, Kind of circuit breaker: type G, Operating temperature: -25...40°C, Cross section of connecting wires: 1.5...35mm2, Residual current: 30mA, Current rating: 40A, Number of poles: 2, Mechanical durability: 20000 cycles, Rated voltage: 400V AC, Max surge current: 3kA, Electrical life: 4000 cycles, Short circuit breaking capacity: 10kA.
