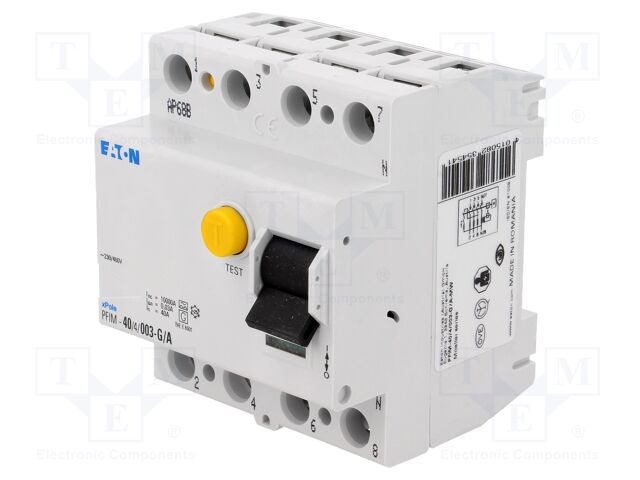

PFIM-40/4/003-G/A EATON ELECTRIC
Hersteller: EATON ELECTRIC
Category: RCD Circuit Breakers
Description: RCD breaker; Inom: 40A; Ires: 30mA; Max surge current: 3kA; Poles: 4
Type of protection: RCD breaker
Kind of circuit breaker: type G
Current rating: 40A
Residual current: 30mA
Max surge current: 3kA
Number of poles: 4
Rated voltage: 400V AC
Mounting: for DIN rail mounting
IP rating: IP40
Cross section of connecting wires: 1.5...35mm2
Operating temperature: -25...40°C
Short circuit breaking capacity: 10kA
Mechanical durability: 20000 cycles
Electrical life: 4000 cycles
Tripping: short-time delayed
Manufacturer series: PFIM
Conform to the norm: IEC EN 61008
Trade name: RCD
Anzahl je Verpackung: 1 Stücke
Category: RCD Circuit Breakers
Description: RCD breaker; Inom: 40A; Ires: 30mA; Max surge current: 3kA; Poles: 4
Type of protection: RCD breaker
Kind of circuit breaker: type G
Current rating: 40A
Residual current: 30mA
Max surge current: 3kA
Number of poles: 4
Rated voltage: 400V AC
Mounting: for DIN rail mounting
IP rating: IP40
Cross section of connecting wires: 1.5...35mm2
Operating temperature: -25...40°C
Short circuit breaking capacity: 10kA
Mechanical durability: 20000 cycles
Electrical life: 4000 cycles
Tripping: short-time delayed
Manufacturer series: PFIM
Conform to the norm: IEC EN 61008
Trade name: RCD
Anzahl je Verpackung: 1 Stücke
Produkt ist nicht verfügbar
Produktrezensionen
Produktbewertung abgeben
Technische Details PFIM-40/4/003-G/A EATON ELECTRIC
Category: RCD Circuit Breakers, Description: RCD breaker; Inom: 40A; Ires: 30mA; Max surge current: 3kA; Poles: 4, Type of protection: RCD breaker, Kind of circuit breaker: type G, Current rating: 40A, Residual current: 30mA, Max surge current: 3kA, Number of poles: 4, Rated voltage: 400V AC, Mounting: for DIN rail mounting, IP rating: IP40, Cross section of connecting wires: 1.5...35mm2, Operating temperature: -25...40°C, Short circuit breaking capacity: 10kA, Mechanical durability: 20000 cycles, Electrical life: 4000 cycles, Tripping: short-time delayed, Manufacturer series: PFIM, Conform to the norm: IEC EN 61008, Trade name: RCD, Anzahl je Verpackung: 1 Stücke.
