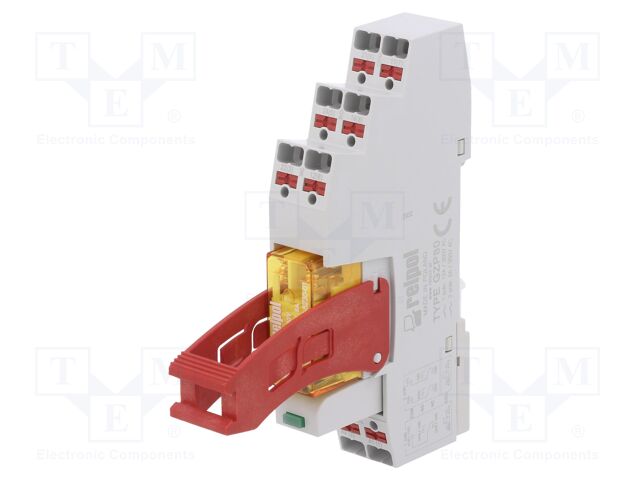

PI84-230AC-M93G-PS-2012-01 RELPOL
Hersteller: RELPOLCategory: Electromagnetic Relays - Sets
Description: Relay: interface; DPDT; Ucoil: 230VAC; 8A; 8A/250VAC; 8A/24VDC; PI84
Type of relay: interface
Contacts configuration: DPDT
Rated coil voltage: 230V AC
Max. operating current: 8A
AC contacts rating @R: 8A / 250V AC
DC contacts rating @R: 8A / 24V DC
Switched voltage: max. 250V AC; max. 300V DC
Mounting: for DIN rail mounting; on panel
Manufacturer series: PI84
Leads: spring clamps
Relay variant: Relay set
Operate time: 7ms
Release time: 3ms
Operating temperature: -40...70°C
Contact material: AgNi
Body dimensions: 97x15.9x75.8mm
Kit contents: ejector; holder; indication module; label; RM84 relay
Contact resistance: 100mΩ
Switching capacity: 2kVA
OEM number: 864992
Electrical connection: Push-in
Anzahl je Verpackung: 1 Stücke
Produkt ist nicht verfügbar
Produktrezensionen
Produktbewertung abgeben
Technische Details PI84-230AC-M93G-PS-2012-01 RELPOL
Category: Electromagnetic Relays - Sets, Description: Relay: interface; DPDT; Ucoil: 230VAC; 8A; 8A/250VAC; 8A/24VDC; PI84, Type of relay: interface, Contacts configuration: DPDT, Rated coil voltage: 230V AC, Max. operating current: 8A, AC contacts rating @R: 8A / 250V AC, DC contacts rating @R: 8A / 24V DC, Switched voltage: max. 250V AC; max. 300V DC, Mounting: for DIN rail mounting; on panel, Manufacturer series: PI84, Leads: spring clamps, Relay variant: Relay set, Operate time: 7ms, Release time: 3ms, Operating temperature: -40...70°C, Contact material: AgNi, Body dimensions: 97x15.9x75.8mm, Kit contents: ejector; holder; indication module; label; RM84 relay, Contact resistance: 100mΩ, Switching capacity: 2kVA, OEM number: 864992, Electrical connection: Push-in, Anzahl je Verpackung: 1 Stücke.
