Produkte > SUNON > PMB1297PYB2-AY

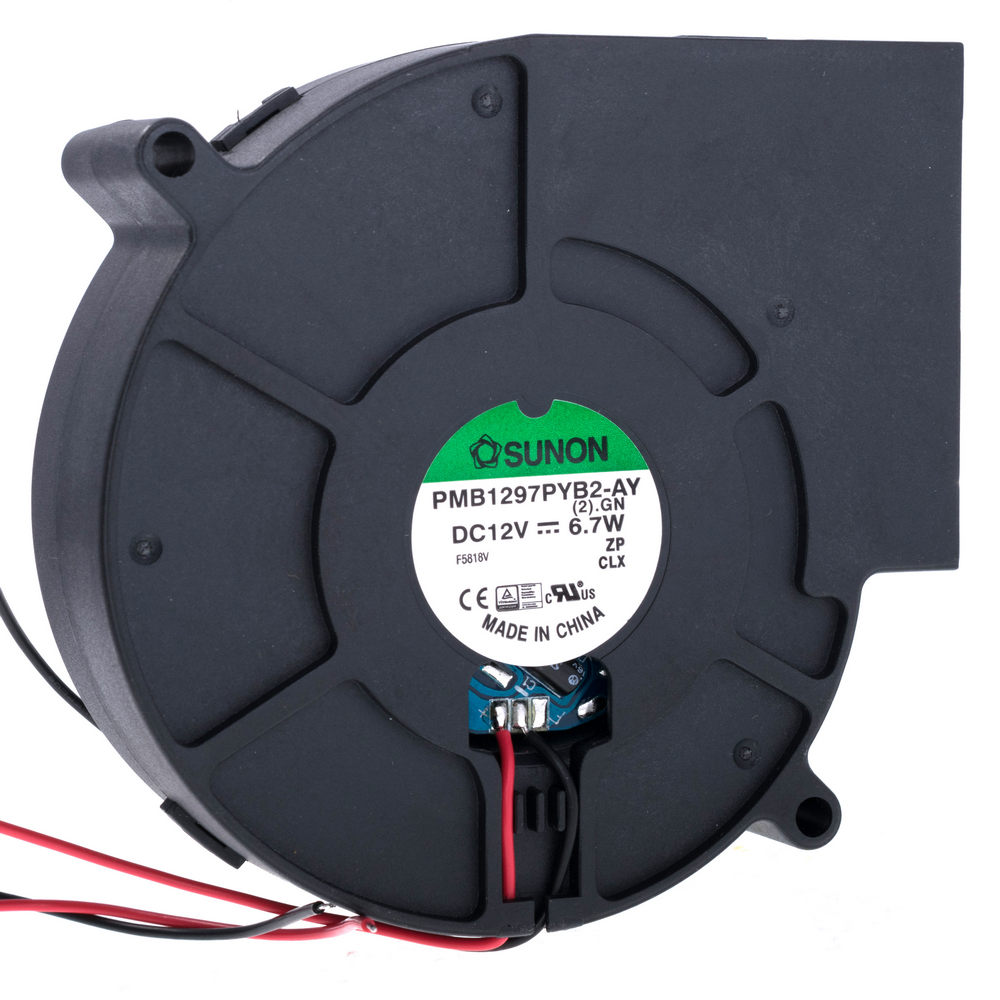

PMB1297PYB2-AY

PMB1297PYB2-AY SUNON


pVersion=0046&contRep=ZT&docId=E1C043F6762024F1A6F5005056AB5A8F&compId=(D09011000G-00)-1.pdf?ci_sign=e49a0353eb08c6400f1aaf9b4c72adfef744a3bf pVersion=0046&contRep=ZT&docId=E1E21918E63E38F1A704005056AB0C4F&compId=Blower%20fans.pdf?ci_sign=4ed9db1c1739a45fd99df275789819603d36a912 Hersteller: SUNON
Category: DC12V Fans
Description: Fan: DC; blower; 12VDC; 97x94x33mm; 45.22m3/h; 53.1dBA; ball; 24AWG
Supply voltage: 12V DC
Operating temperature: -10...70°C
Lead length: 0.3m
Additional functions: autorestart
Flammability rating: UL94V-0
Insulation class: E
Kind of Bearing: ball
Fan efficiency: 45.22m3/h
Static pressure: 16.5mm H2O
Noise level: 53.1dBA
Rotational rate/speed: 3200 (±10%)rpm
Current and power consumption tolerance: ±15%
Power consumption: 6.7W
Wire size: 24AWG
Kind of fan: blower
Min. insulation resistance: 10MΩ
Enclosure material: thermoplastic
Current rating: 560mA
Leads: leads x2
Operating voltage: 6...13.8V DC
Type of fan: DC
Fan dimensions: 97x94x33mm
Fan motor: brushless DC
Impeller material: thermoplastic
Anzahl je Verpackung: 1 Stücke
auf Bestellung 337 Stücke:

Lieferzeit 7-14 Tag (e)
Anzahl Preis
3+27.03 EUR
10+22.97 EUR
50+18.75 EUR
Mindestbestellmenge: 3
Im Einkaufswagen  Stück im Wert von  UAH
Produktrezensionen
Produktbewertung abgeben

Technische Details PMB1297PYB2-AY SUNON

Category: DC12V Fans, Description: Fan: DC; blower; 12VDC; 97x94x33mm; 45.22m3/h; 53.1dBA; ball; 24AWG, Supply voltage: 12V DC, Operating temperature: -10...70°C, Lead length: 0.3m, Additional functions: autorestart, Flammability rating: UL94V-0, Insulation class: E, Kind of Bearing: ball, Fan efficiency: 45.22m3/h, Static pressure: 16.5mm H2O, Noise level: 53.1dBA, Rotational rate/speed: 3200 (±10%)rpm, Current and power consumption tolerance: ±15%, Power consumption: 6.7W, Wire size: 24AWG, Kind of fan: blower, Min. insulation resistance: 10MΩ, Enclosure material: thermoplastic, Current rating: 560mA, Leads: leads x2, Operating voltage: 6...13.8V DC, Type of fan: DC, Fan dimensions: 97x94x33mm, Fan motor: brushless DC, Impeller material: thermoplastic, Anzahl je Verpackung: 1 Stücke.
