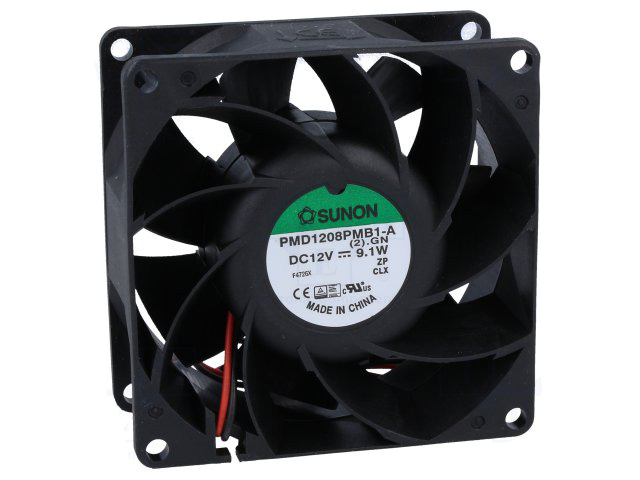

Produkte > Gehäuse, Halter, Montage- und Installationselemente > Lüfter und Zubehör > PMD1208PMB1A Sunon
PMD1208PMB1A Sunon
Produktcode: 43898
Hersteller: SunonAbmessungen, mm: 80x80x38mm, 12V, 0,76A
Spannung, V: 12 DC
Luftvolumen, m3/Stunde: 143 м³/год.
Leistung, Watt: 9,1 Вт
Lärm, dB: 55,2 дБ
Rotationsgeschwindigkeit, r/min: 5700 об/хв
Beschreibung: Підшипник кульковий
auf Bestellung 7 Stück:
Lieferzeit 21-28 Tag (e)
Produktrezensionen
Produktbewertung abgeben
Technische Details PMD1208PMB1A Sunon
- FAN, 80X80X38MM, 12VDC
- Current Type:DC
- Supply Voltage:12V dc
- Series:Power Motor Fan
- External Height:80mm
- External Width:80mm
- External Depth:38mm
- Noise:55.2dB
- Bearing Type:BB
- Approval Bodies:CE, TUV, UL Recognised
- External Length / Height:80mm
- Flow Rate, Imperial:84.1cu.ft/min
- Lead Length:300mm
- Power Consumption:9.1W
- Termination Type:Wire Leads
- Voltage Rating DC:12V dc
- Case Material:PBT Plastic
- Current Consumption:0.76A
- Max Speed Range:5700rpm
Weitere Produktangebote PMD1208PMB1A nach Preis ab 10.74 EUR bis 22.92 EUR
Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis ohne MwSt | ||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
PMD1208PMB1-A(2).GN | Hersteller : SUNON |
Category: DC12V Fans Description: Fan: DC; axial; 12VDC; 80x80x38mm; 143m3/h; 55.2dBA; ball; Len: 300mm Type of fan: DC Kind of fan: axial Supply voltage: 12V DC Operating voltage: 6...13.8V Fan dimensions: 80x80x38mm Power consumption: 9.1W Current rating: 0.76A Fan efficiency: 143m3/h Noise level: 55.2dBA Kind of Bearing: ball Rotational rate/speed: 5700 (±10%)rpm Current and power consumption tolerance: ±15% Min. insulation resistance: 10MΩ Impeller material: thermoplastic Enclosure material: thermoplastic Insulation class: E Leads: lead x2 Operating temperature: -10...70°C Cable length: 0.3m Flammability rating: UL94V-0 Additional functions: autorestart Fan motor: brushless DC Static pressure: 18.8mm H2O Wire size: 28AWG Anzahl je Verpackung: 1 Stücke |
auf Bestellung 2454 Stücke: Lieferzeit 7-14 Tag (e) |
|
|||||||||||
PMD1208PMB1-A(2).GN | Hersteller : SUNON |
Category: DC12V Fans Description: Fan: DC; axial; 12VDC; 80x80x38mm; 143m3/h; 55.2dBA; ball; Len: 300mm Type of fan: DC Kind of fan: axial Supply voltage: 12V DC Operating voltage: 6...13.8V Fan dimensions: 80x80x38mm Power consumption: 9.1W Current rating: 0.76A Fan efficiency: 143m3/h Noise level: 55.2dBA Kind of Bearing: ball Rotational rate/speed: 5700 (±10%)rpm Current and power consumption tolerance: ±15% Min. insulation resistance: 10MΩ Impeller material: thermoplastic Enclosure material: thermoplastic Insulation class: E Leads: lead x2 Operating temperature: -10...70°C Cable length: 0.3m Flammability rating: UL94V-0 Additional functions: autorestart Fan motor: brushless DC Static pressure: 18.8mm H2O Wire size: 28AWG |
auf Bestellung 2454 Stücke: Lieferzeit 14-21 Tag (e) |
|
|||||||||||
PMD1208PMB1-A(2).GN | Hersteller : Sunon | ACCESS POWER MOTOR FAN |
auf Bestellung 2715 Stücke: Lieferzeit 14-21 Tag (e) |
|
Mit diesem Produkt kaufen
Taste OFF-(ON) (KLS7-PBS-003D) Produktcode: 98387 |
Hersteller: KLS
Passive Bauelemente > Tasten/Knöpfe und Tastatur
Gruppe: Umschalter
Ausgabe/SMD: Ausgabe
Abmessungen, mm: 14x10,9x19,5mm
Stammhöhe, mm: 5mm
Beschreibung: Umschalter OFF(ON) fur Montage auf Platte 1A 250VAC
Контакти: SPST-NO
Алгоритм роботи: OFF-(ON)
Passive Bauelemente > Tasten/Knöpfe und Tastatur
Gruppe: Umschalter
Ausgabe/SMD: Ausgabe
Abmessungen, mm: 14x10,9x19,5mm
Stammhöhe, mm: 5mm
Beschreibung: Umschalter OFF(ON) fur Montage auf Platte 1A 250VAC
Контакти: SPST-NO
Алгоритм роботи: OFF-(ON)
auf Bestellung 1162 Stück:
Lieferzeit 21-28 Tag (e)erwartet 2000 Stück:
2000 Stück - erwartet 31.10.2024Anzahl | Preis ohne MwSt |
---|---|
1+ | 0.2 EUR |
10+ | 0.18 EUR |
100+ | 0.15 EUR |
1000+ | 0.12 EUR |
PS15BBK Produktcode: 84274 |
Hersteller: Ninigi
Passive Bauelemente > Tasten/Knöpfe und Tastatur
Gruppe: Umschalter
Ausgabe/SMD: THT
Abmessungen, mm: 13х11mm
Stammhöhe, mm: 3 mm
Beschreibung: Konfig. Kontakte SPST-NO. Belastung Kontakte АС 1 A / 250 VAC. Algorithmus OFF-(ON).
Контакти: SPST-NO
Алгоритм роботи: OFF-(ON)
Passive Bauelemente > Tasten/Knöpfe und Tastatur
Gruppe: Umschalter
Ausgabe/SMD: THT
Abmessungen, mm: 13х11mm
Stammhöhe, mm: 3 mm
Beschreibung: Konfig. Kontakte SPST-NO. Belastung Kontakte АС 1 A / 250 VAC. Algorithmus OFF-(ON).
Контакти: SPST-NO
Алгоритм роботи: OFF-(ON)
verfügbar: 19 Stück
erwartet:
100 Stück
100 Stück - erwartet
Anzahl | Preis ohne MwSt |
---|---|
1+ | 0.93 EUR |
Клей епоксидний компаунд універсальний Produktcode: 61529 |
auf Bestellung 36 Stück:
Lieferzeit 21-28 Tag (e)Anzahl | Preis ohne MwSt |
---|---|
1+ | 2.26 EUR |

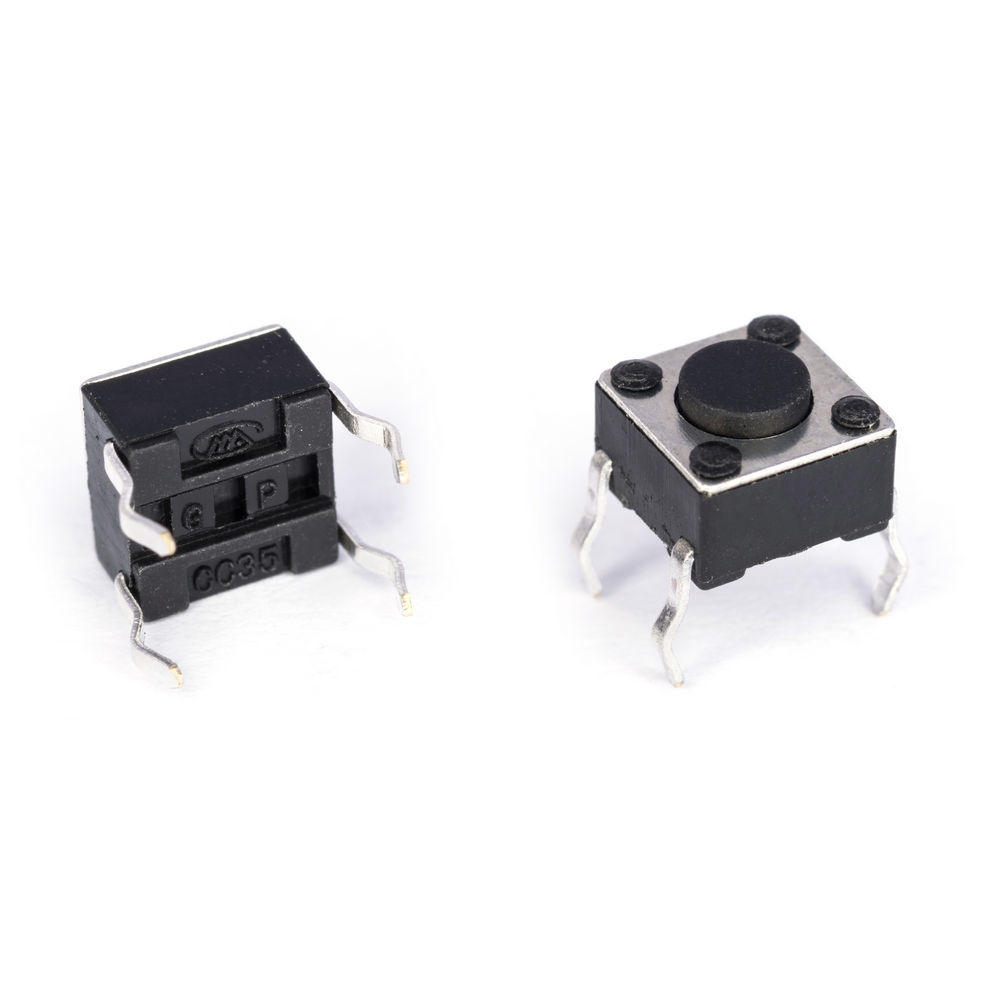

Taste SWT-2/4,3 (KLS7-TS6601-H1=4,3) Produktcode: 48412 |
Hersteller: KLS
Passive Bauelemente > Tasten/Knöpfe und Tastatur
Gruppe: Taste
Ausgabe/SMD: THT
Abmessungen, mm: 6х6mm
Stammhöhe, mm: 4,3mm
Beschreibung: Taste OFF-(ON)
Контакти: SPST-NO
Алгоритм роботи: OFF-(ON)
Passive Bauelemente > Tasten/Knöpfe und Tastatur
Gruppe: Taste
Ausgabe/SMD: THT
Abmessungen, mm: 6х6mm
Stammhöhe, mm: 4,3mm
Beschreibung: Taste OFF-(ON)
Контакти: SPST-NO
Алгоритм роботи: OFF-(ON)
verfügbar: 5257 Stück
990 Stück - stock Köln
4267 Stück - lieferbar in 3-4 Wochen
4267 Stück - lieferbar in 3-4 Wochen
Anzahl | Preis ohne MwSt |
---|---|
1+ | 0.16 EUR |
10+ | 0.12 EUR |
100+ | 0.067 EUR |
1000+ | 0.062 EUR |

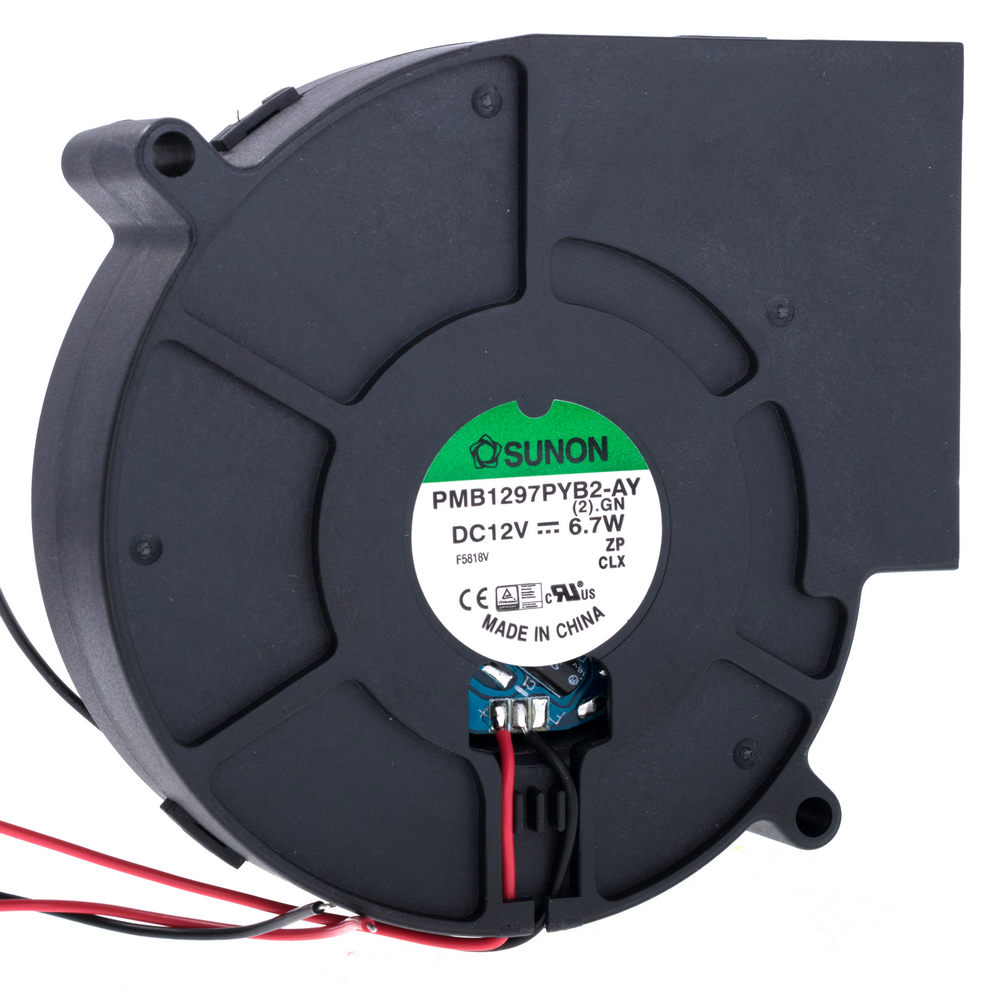

PMB1297PYB2-AY auf die Videokarte Produktcode: 32709 |
Hersteller: Sunon
Gehäuse, Halter, Montage- und Installationselemente > Lüfter und Zubehör
Abmessungen, mm: 97x94x33
Spannung, V: 12 DC
Luftvolumen, m3/Stunde: 45,2
Leistung, Watt: 6,7
Lärm, dB: 53,1
Rotationsgeschwindigkeit, r/min: 3200
Beschreibung: Lager roll-on-, тип "blower"
Gehäuse, Halter, Montage- und Installationselemente > Lüfter und Zubehör
Abmessungen, mm: 97x94x33
Spannung, V: 12 DC
Luftvolumen, m3/Stunde: 45,2
Leistung, Watt: 6,7
Lärm, dB: 53,1
Rotationsgeschwindigkeit, r/min: 3200
Beschreibung: Lager roll-on-, тип "blower"
Produkt ist nicht verfügbar
Anzahl | Preis ohne MwSt |
---|---|
1+ | 15.6 EUR |
