Produkte > Gehäuse, Halter, Montage- und Installationselemente > Lüfter und Zubehör > PMD1212PMB1AF Sunon

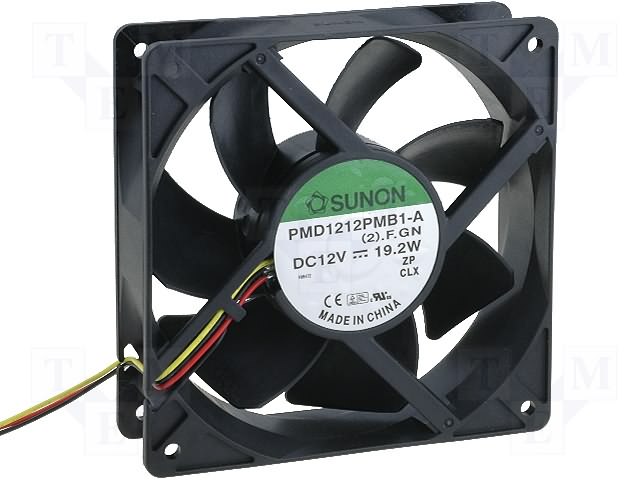

PMD1212PMB1AF Sunon
Produktcode: 48445
Hersteller: SunonAbmessungen, mm: 120x120x38
Spannung, V: 12 DC
Luftvolumen, m3/Stunde: 323
Leistung, Watt: 19,2
Lärm, dB: 54
Rotationsgeschwindigkeit, r/min: 4200
Beschreibung: Lager roll-on-
Produkt ist nicht verfügbar
Produktrezensionen
Produktbewertung abgeben
Verwandte Produkte PMD1212PMB1AF Sunon
Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis ohne MwSt | ||||||
---|---|---|---|---|---|---|---|---|---|---|---|
+3 |
Befestigung für Ventilatore und Gitter, Plastikklammer FSP-1 Produktcode: 62414 |
Gehäuse, Halter, Montage- und Installationselemente > Lüfter und Zubehör Beschreibung: Befestigung |
verfügbar: 287 Stück
50 Stück - stock Köln
237 Stück - lieferbar in 3-4 Wochen |
|
|||||||
+1 |
Befestigung für Ventilatore und Gitter, Plastikklammer FSP-2 Produktcode: 26792 |
Gehäuse, Halter, Montage- und Installationselemente > Lüfter und Zubehör Beschreibung: Befestigung |
verfügbar: 81 Stück
80 Stück - stock Köln
1 Stück - lieferbar in 3-4 Wochen |
|
Weitere Produktangebote PMD1212PMB1AF
Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis ohne MwSt |
---|---|---|---|---|---|
PMD1212PMB1-A(2).F.GN | Hersteller : SUNON |
Category: DC12V Fans Description: Fan: DC; axial; 12VDC; 120x120x38mm; 323m3/h; 54dBA; ball bearing Type of fan: DC Kind of fan: axial Supply voltage: 12V DC Operating voltage: 6...13.8V Fan dimensions: 120x120x38mm Power consumption: 19.2W Current rating: 1.6A Fan efficiency: 323m3/h Noise level: 54dBA Kind of Bearing: ball Signal output: F type Rotational rate/speed: 4200 (±10%)rpm Current and power consumption tolerance: ±15% Min. insulation resistance: 10MΩ Impeller material: thermoplastic Enclosure material: thermoplastic Insulation class: A Leads: lead x3 Operating temperature: -10...70°C Cable length: 0.33m Flammability rating: UL94V-0 Additional functions: autorestart Fan motor: brushless DC Static pressure: 16.5mm H2O Wire size: 24AWG Anzahl je Verpackung: 1 Stücke |
Produkt ist nicht verfügbar |
||
PMD1212PMB1-A(2).F.GN | Hersteller : SUNON |
Category: DC12V Fans Description: Fan: DC; axial; 12VDC; 120x120x38mm; 323m3/h; 54dBA; ball bearing Type of fan: DC Kind of fan: axial Supply voltage: 12V DC Operating voltage: 6...13.8V Fan dimensions: 120x120x38mm Power consumption: 19.2W Current rating: 1.6A Fan efficiency: 323m3/h Noise level: 54dBA Kind of Bearing: ball Signal output: F type Rotational rate/speed: 4200 (±10%)rpm Current and power consumption tolerance: ±15% Min. insulation resistance: 10MΩ Impeller material: thermoplastic Enclosure material: thermoplastic Insulation class: A Leads: lead x3 Operating temperature: -10...70°C Cable length: 0.33m Flammability rating: UL94V-0 Additional functions: autorestart Fan motor: brushless DC Static pressure: 16.5mm H2O Wire size: 24AWG |
Produkt ist nicht verfügbar |
