Hersteller: GOSSEN METRAWATT
Category: Multimeters for Electrical Installations
Description: Meter: appliance meter; LCD; Earthing R range: 100mΩ÷9999Ω; USB
Type of meter: appliance meter
Kind of display used: LCD
Earthing resistance measuring range: 100mΩ...9999Ω
Earthing resistance measuring accuracy: ±(5% + 3 digit)
RCD test: AC, B, B+, EV, A and F-type RCDs
AC voltage measuring range: 300mV...600V
AC voltage measuring accuracy: ±(2% + 1 digit)
Measurement: AC voltage; contact voltage without tripping the RCCB; earthing resistance; insulation resistance; leakage current; phase sequence; RCD tripping current; RCD tripping time; residual voltage; votlage drop
Insulation resistance measuring ranges: 50kΩ...499MΩ
Insulation resistance measuring accuracy: ±(5% + 1digit)
Manufacturer series: PROFITEST
Interface: USB
IP rating: IP20 (probe); IP40
Conform to the norm: CAT III 600V; CAT IV 300V; EN 60529; EN 61010; EN 61326; EN 61557
Power supply: battery AA 1,5V x8
Measuring instrument features: automatic power-off; automatic setup / detection of measurement type / mains type; automatic test sequence; battery level indication; low battery indicator; multilanguage menu; simulation of operating states of electric vehicles at electric charging stations
Body dimensions: 330x260x90mm
Operating temperature: -5...50°C
Standard equipment: 2 crocodile clips; 2-pole measuring adapter with expansion cable; calibration certificate DAkkS; mains battery charger; protection cover; shoulder strap; USB cable; user's manual

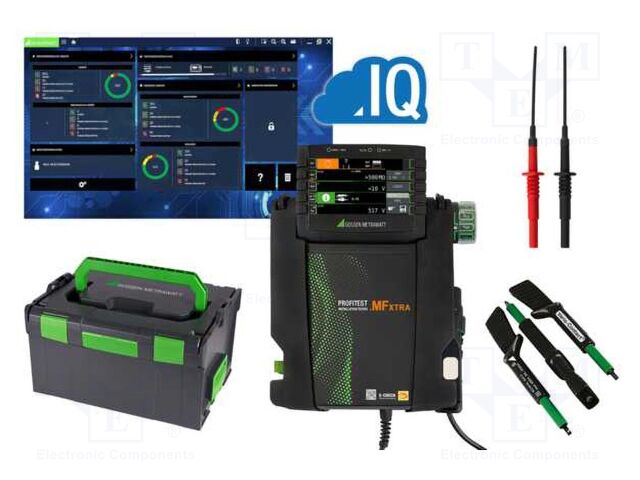

Kit contents: case; insert; probe kit; VARIO plug adapter set
Battery/ rechargeable battery: rechargeable battery Ni-MH AA 1,2V x8
Software: IZYTRONIQ BUSINESS Advanced
Measurement memory: 50000
Test: N-PE reversal; residual current circuit breakers
