Produkte > ONPOW > PS223Z10YBK1W12VD

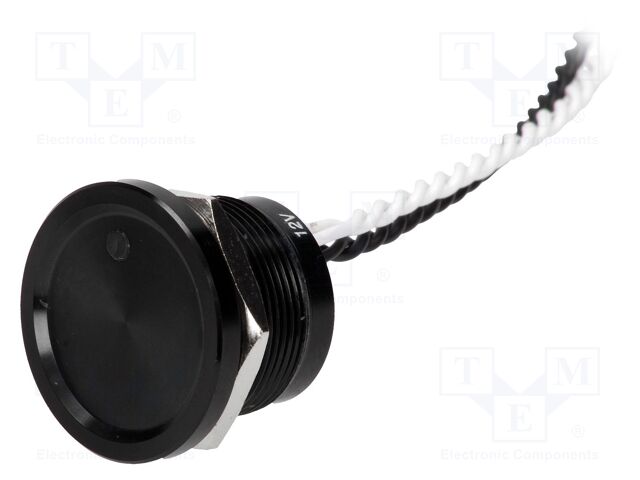

PS223Z10YBK1W12VD

PS223Z10YBK1W12VD ONPOW

pVersion=0046&contRep=ZT&docId=005056AB90B41EDAAED9478924BC20C7&compId=PS223Z10Y-D.pdf?ci_sign=b1f859af5b0ff09b11b9e6d9e61b5dafa9aff2d4 Hersteller: ONPOW
Category: Piezoelectric Switches
Description: Switch: piezoelectric; Pos: 2; SPST-NO; 0.2A/24VAC; 0.2A/24VDC
IP rating: IP68
Mounting hole diameter: Ø22mm
Leads: cables
Electrical life: 50000000 cycles
Body material: aluminium
Type of switch: piezoelectric
Contacts configuration: SPST-NO
AC contacts rating @R: 0.2A / 24V AC
DC contacts rating @R: 0.2A / 24V DC
Switching method: OFF-(ON)
Stable positions number: 1
Operating Force: 6N
Illumination: LED; point
Body colour: black
Backlight colour: white
Button shape: concave
Switched voltage: max. 24V AC; max. 24V DC
Contact current max.: 0.2A
Lead length: 30mm
Number of positions: 2
Operating temperature: -40...75°C
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
Produktrezensionen
Produktbewertung abgeben

Technische Details PS223Z10YBK1W12VD ONPOW

Category: Piezoelectric Switches, Description: Switch: piezoelectric; Pos: 2; SPST-NO; 0.2A/24VAC; 0.2A/24VDC, IP rating: IP68, Mounting hole diameter: Ø22mm, Leads: cables, Electrical life: 50000000 cycles, Body material: aluminium, Type of switch: piezoelectric, Contacts configuration: SPST-NO, AC contacts rating @R: 0.2A / 24V AC, DC contacts rating @R: 0.2A / 24V DC, Switching method: OFF-(ON), Stable positions number: 1, Operating Force: 6N, Illumination: LED; point, Body colour: black, Backlight colour: white, Button shape: concave, Switched voltage: max. 24V AC; max. 24V DC, Contact current max.: 0.2A, Lead length: 30mm, Number of positions: 2, Operating temperature: -40...75°C.
