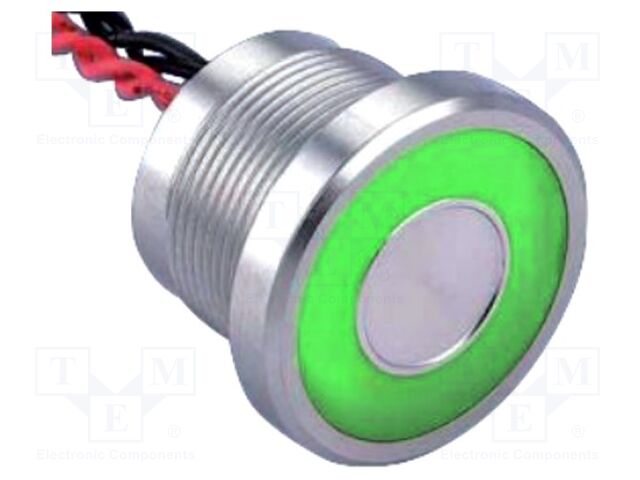

PS225P10Y01/G/12L ONPOW
Hersteller: ONPOWCategory: Piezoelectric Switches
Description: Switch: piezoelectric; Pos: 2; SPST-NO; 0.2A/24VAC; 0.2A/24VDC
Operating temperature: -40...75°C
Button shape: flat
IP rating: IP68
Illumination: LED; ring
Switching method: OFF-(ON)
Type of switch: piezoelectric
Contacts configuration: SPST-NO
Mounting hole diameter: Ø22mm
Lead length: 30mm
Contact current max.: 0.2A
AC contacts rating @R: 0.2A / 24V AC
DC contacts rating @R: 0.2A / 24V DC
Stable positions number: 1
Number of positions: 2
Operating Force: 6N
Switched voltage: max. 24V AC; max. 24V DC
Electrical life: 50000000 cycles
Body material: aluminium
Body colour: silver
Backlight colour: green
Leads: cables
Anzahl je Verpackung: 1 Stücke
auf Bestellung 8 Stücke:
Lieferzeit 7-14 Tag (e)
| Anzahl | Preis |
|---|---|
| 4+ | 19.89 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details PS225P10Y01/G/12L ONPOW
Category: Piezoelectric Switches, Description: Switch: piezoelectric; Pos: 2; SPST-NO; 0.2A/24VAC; 0.2A/24VDC, Operating temperature: -40...75°C, Button shape: flat, IP rating: IP68, Illumination: LED; ring, Switching method: OFF-(ON), Type of switch: piezoelectric, Contacts configuration: SPST-NO, Mounting hole diameter: Ø22mm, Lead length: 30mm, Contact current max.: 0.2A, AC contacts rating @R: 0.2A / 24V AC, DC contacts rating @R: 0.2A / 24V DC, Stable positions number: 1, Number of positions: 2, Operating Force: 6N, Switched voltage: max. 24V AC; max. 24V DC, Electrical life: 50000000 cycles, Body material: aluminium, Body colour: silver, Backlight colour: green, Leads: cables, Anzahl je Verpackung: 1 Stücke.
