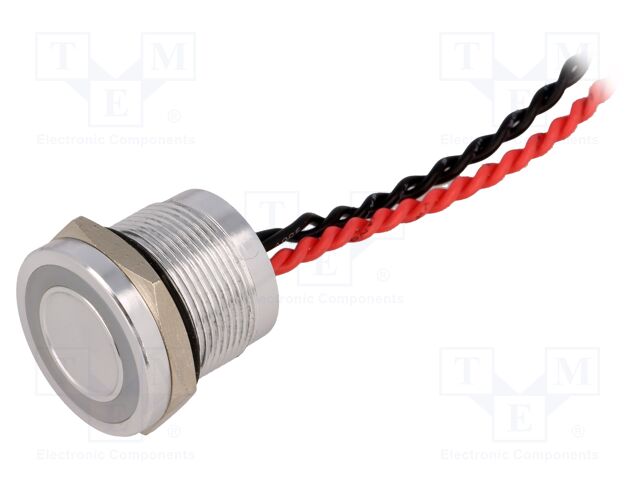

PS225P10Y01/R/12L ONPOW
Hersteller: ONPOW
Category: Piezoelectric Switches
Description: Switch: piezoelectric; Pos: 2; SPST-NO; 0.2A/24VAC; 0.2A/24VDC
Operating temperature: -40...75°C
Leads: leads 30mm
Body material: aluminium
Body colour: silver
Backlight colour: red
Button shape: flat
Switched voltage: max. 24V AC; max. 24V DC
Contact current max.: 0.2A
Number of positions: 2
IP rating: IP68
Mounting hole diameter: Ø22mm
Electrical life: 50000000 cycles
Type of switch: piezoelectric
Contacts configuration: SPST-NO
AC contacts rating @R: 0.2A / 24V AC
DC contacts rating @R: 0.2A / 24V DC
Switching method: OFF-(ON)
Stable positions number: 1
Operating Force: 6N
Illumination: LED; ring
Anzahl je Verpackung: 1 Stücke
Category: Piezoelectric Switches
Description: Switch: piezoelectric; Pos: 2; SPST-NO; 0.2A/24VAC; 0.2A/24VDC
Operating temperature: -40...75°C
Leads: leads 30mm
Body material: aluminium
Body colour: silver
Backlight colour: red
Button shape: flat
Switched voltage: max. 24V AC; max. 24V DC
Contact current max.: 0.2A
Number of positions: 2
IP rating: IP68
Mounting hole diameter: Ø22mm
Electrical life: 50000000 cycles
Type of switch: piezoelectric
Contacts configuration: SPST-NO
AC contacts rating @R: 0.2A / 24V AC
DC contacts rating @R: 0.2A / 24V DC
Switching method: OFF-(ON)
Stable positions number: 1
Operating Force: 6N
Illumination: LED; ring
Anzahl je Verpackung: 1 Stücke
auf Bestellung 8 Stücke:
Lieferzeit 7-14 Tag (e)
Anzahl | Preis ohne MwSt |
---|---|
4+ | 20.52 EUR |
