Produkte > POWERSEM > PSD 162/18

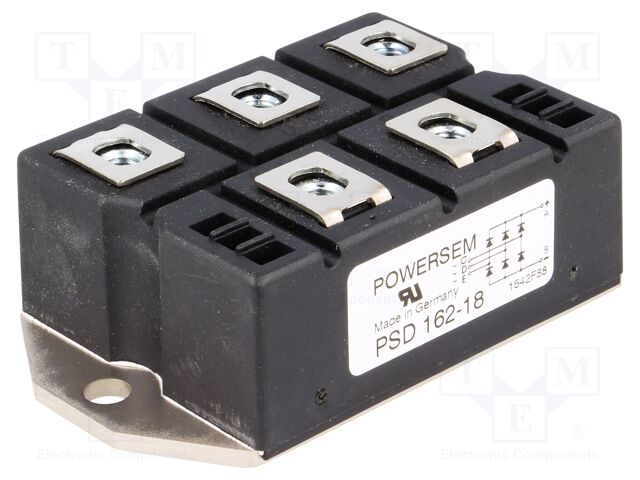

PSD 162/18 POWERSEM

pVersion=0046&contRep=ZT&docId=005056AB752F1EE594951690E82DE469&compId=PSD162-08.pdf?ci_sign=dbee302fbfec5e90e5145b61d87162549c3098c3

pVersion=0046&contRep=ZT&docId=005056AB281E1FD0AEC91636A23440E2&compId=PCN202501-Screws.pdf?ci_sign=3b8e01195ff2e2056a5a65b60db059b955f98dd6

Hersteller: POWERSEM
Category: Three phase diode bridge rectifiers
Description: Bridge rectifier: three-phase; Urmax: 1.8kV; If: 175A; Ifsm: 1.8kA
Type of bridge rectifier: three-phase
Max. off-state voltage: 1.8kV
Load current: 175A
Max. forward impulse current: 1.8kA
Electrical mounting: screw
Version: module
Max. forward voltage: 1.55V
Leads: M6 screws
Case: PWS-E
Mechanical mounting: screw
Kind of package: bulk
Features of semiconductor devices: glass passivated

Produkt ist nicht verfügbar

Im Einkaufswagen Stück im Wert von UAH

Produktrezensionen

Produktbewertung abgeben

Technische Details PSD 162/18 POWERSEM

Category: Three phase diode bridge rectifiers, Description: Bridge rectifier: three-phase; Urmax: 1.8kV; If: 175A; Ifsm: 1.8kA, Type of bridge rectifier: three-phase, Max. off-state voltage: 1.8kV, Load current: 175A, Max. forward impulse current: 1.8kA, Electrical mounting: screw, Version: module, Max. forward voltage: 1.55V, Leads: M6 screws, Case: PWS-E, Mechanical mounting: screw, Kind of package: bulk, Features of semiconductor devices: glass passivated.
