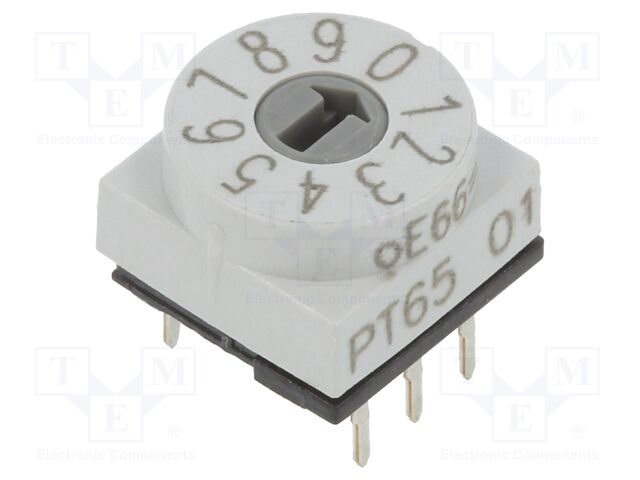

PT65101 PTR HARTMANN
Hersteller: PTR HARTMANNCategory: Encoding Switches
Description: Encoding switch; DEC/BCD; Pos: 10; THT; Rcont max: 80mΩ; PT65
Kind of encoding switch: DEC/BCD
Type of switch: encoding switch
Mounting: THT
Leads: for PCB; straight
Switches features: without knob
Operating temperature: -20...70°C
DC contacts rating @R: 1µA / 20mV DC
Terminal pitch: 2.54mm
Body dimensions: 10x10x6.5mm
Max. contact resistance:: 80mΩ
Stable positions number: 10
Number of positions: 10
Min. insulation resistance: 0.1GΩ
Manufacturer series: PT65
Anzahl je Verpackung: 1 Stücke
auf Bestellung 1625 Stücke:
Lieferzeit 7-14 Tag (e)
| Anzahl | Preis |
|---|---|
| 22+ | 3.4 EUR |
| 40+ | 1.83 EUR |
| 42+ | 1.73 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details PT65101 PTR HARTMANN
Category: Encoding Switches, Description: Encoding switch; DEC/BCD; Pos: 10; THT; Rcont max: 80mΩ; PT65, Kind of encoding switch: DEC/BCD, Type of switch: encoding switch, Mounting: THT, Leads: for PCB; straight, Switches features: without knob, Operating temperature: -20...70°C, DC contacts rating @R: 1µA / 20mV DC, Terminal pitch: 2.54mm, Body dimensions: 10x10x6.5mm, Max. contact resistance:: 80mΩ, Stable positions number: 10, Number of positions: 10, Min. insulation resistance: 0.1GΩ, Manufacturer series: PT65, Anzahl je Verpackung: 1 Stücke.
Weitere Produktangebote PT65101 nach Preis ab 1.73 EUR bis 9.46 EUR
| Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis | ||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
PT65101 | Hersteller : PTR HARTMANN |
Category: Encoding Switches Description: Encoding switch; DEC/BCD; Pos: 10; THT; Rcont max: 80mΩ; PT65 Kind of encoding switch: DEC/BCD Type of switch: encoding switch Mounting: THT Leads: for PCB; straight Switches features: without knob Operating temperature: -20...70°C DC contacts rating @R: 1µA / 20mV DC Terminal pitch: 2.54mm Body dimensions: 10x10x6.5mm Max. contact resistance:: 80mΩ Stable positions number: 10 Number of positions: 10 Min. insulation resistance: 0.1GΩ Manufacturer series: PT65 |
auf Bestellung 1625 Stücke: Lieferzeit 14-21 Tag (e) |
|
||||||||||||||||||
 |
PT65 101 | Hersteller : PTR Hartmann |
Description: SWITCH ROTARY DIP BCD 10POS ARR Packaging: Tray Contact Finish: Gold Voltage Rating: 42VAC/DC Current Rating (Amps): 150mA Mounting Type: Through Hole Pitch: 0.100" (2.54mm), Full Circuit: BCD Operating Temperature: -40°C ~ 85°C Termination Style: PC Pin Actuator Type: Rotary for Tool Height Above Board: 0.256" (6.50mm) Actuator Level: Flush, Recessed Washable: Yes Number of Positions: 10 |
auf Bestellung 30 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||||||||||||||||
 |
PT65101 | Hersteller : Apem |
Coded Rotary Switches 10P BCD VERT MOUNT |
auf Bestellung 3519 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||||||||||||||||
 |
PT65101 | Hersteller : APEM Inc. |
Description: SWITCH ROTARY DIP BCD 0.15A 24V Features: Sealed - Flux Protection Packaging: Tube Contact Finish: Gold Voltage Rating: 24VDC Current Rating (Amps): 150mA Mounting Type: Through Hole Pitch: 0.100" (2.54mm), Full Circuit: BCD Operating Temperature: -20°C ~ 70°C Termination Style: PC Pin Actuator Type: Rotary for Tool Height Above Board: 0.256" (6.50mm) Actuator Level: Flush, Recessed Washable: Yes Contact Material: Phosphor Bronze Part Status: Active Number of Positions: 10 |
auf Bestellung 5430 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||||||||||||||||
 |
PT65101 | Hersteller : APEM Components |
Switch DIP N.O./N.C. SP10T 10 Flush Screwdriver 0.15A 42VDC PC Pins 10000Cycles 2.54mm Thru-Hole Tube |
auf Bestellung 700 Stücke: Lieferzeit 14-21 Tag (e) |
|
||||||||||||||||||
 |
PT65-101 | Hersteller : APEM |
Description: APEM - PT65-101 - Drehcodierschalter, Durchsteckmontage, 10 Positionen, 24 VDC, BCD, 400 mA tariffCode: 85365015 rohsCompliant: YES Betätigerhöhe: Bündig versenkt Schaltspannung: 24VDC hazardous: false rohsPhthalatesCompliant: YES Schalterkonstruktion: Gekapselt usEccn: EAR99 Anzahl der Schalterpositionen: 10 Positionen Ausgabecode: BCD euEccn: NLR Schaltstrom: 400mA Schaltermontage: Durchsteckmontage Produktpalette: - productTraceability: No SVHC: No SVHC (16-Jul-2019) |
auf Bestellung 873 Stücke: Lieferzeit 14-21 Tag (e) |
|||||||||||||||||||
 |
PT65101 | Hersteller : Hartmann |
Switch DIP SP10T 10 Flush Screwdriver 0.15A 42VAC 42VDC PC Pins 30000Cycles 2.54mm Thru-Hole Tube |
Produkt ist nicht verfügbar |
|||||||||||||||||||
| PT65101 | Hersteller : PTR Hartmann |
|
Produkt ist nicht verfügbar |
||||||||||||||||||||
| PT65 101 | Hersteller : Unspecified |
|
Produkt ist nicht verfügbar |
