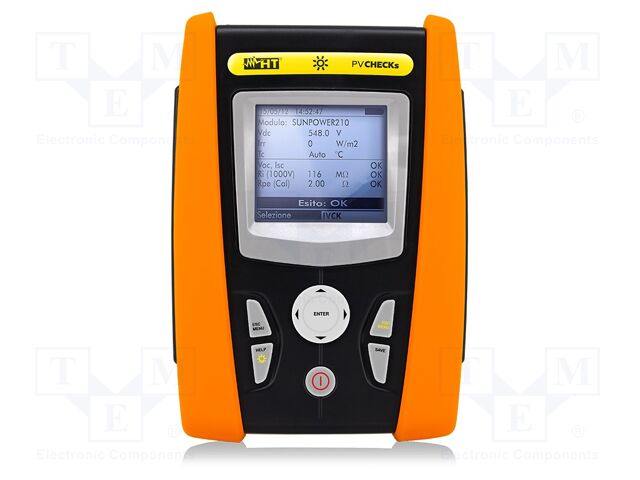

PVCHECKSPLUS HT INSTRUMENTS

Category: PV and EVSE Testers and Meters, Description: Meter: appliance meter; VDC accuracy: ±(0.5%+2digit); 3÷1500V, Type of meter: appliance meter, DC voltage measuring accuracy: ±(0.5% + 2 digit), DC voltage measuring range: 3...1500V, DC current measuring accuracy: ±(1% + 2 digit), DC current measuring range: 100mA...15A, Insulation resistance measuring accuracy: ±(5% + 5digit), Insulation resistance measuring ranges: 250Ω; 500Ω; 1kΩ, Measurement memory: 999, Standard equipment: 4 crocodile clips; calibration certificate; carrying case; remote unit for measurement of irradiance; solar irradiance meter HT305; temperature probe; test leads ( 4pcs.), Conform to the norm: CAT III 300V; IEC 60891; IEC 61010-1; IEC 61010-031; IEC 61326-1, IP rating: IP40, Kind of display used: LCD, Measurement: DC current; DC voltage; insulation resistance PV; irradiance (external probe required); power; temperature (external probe required), Battery/ rechargeable battery: battery LR6 AA 1,5V x6, Measuring instruments application: photovoltaics, Interface: USB, Power supply: battery LR6 AA 1,5V x6, Dimensions: 235x165x75mm, Display resolution: 128x128, Operating temperature: 0...40°C, Storage temperature: -10...60°C.
