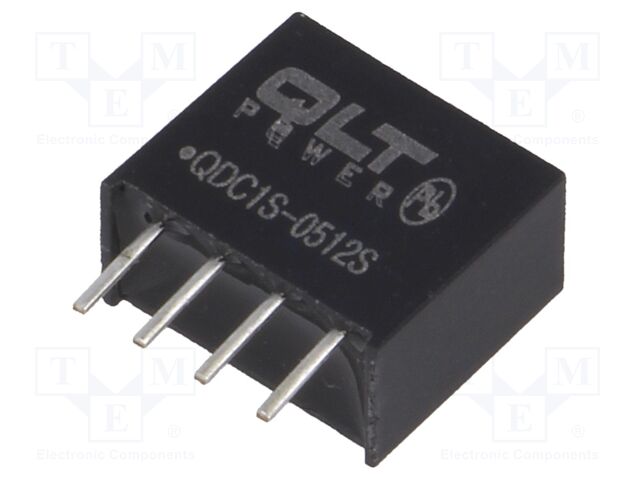

QDC1S-0512S QLT POWER

Category: DC/DC Converters
Description: Converter: DC/DC; 1W; Uin: 4.5÷5.5VDC; Uout: 12VDC; SIL4; 0.03ppm/°C
Operating temperature: -40...85°C
Case: SIL4
Power: 1W
Temperature coefficient: 0.03ppm/°C
Body dimensions: 7x11.7x10mm
Output voltage: 12V DC
Insulation voltage: 1kV DC
Input voltage: 4.5...5.5V DC
Type of converter: DC/DC
Efficiency: 75%
Input voltage tolerance: ±5%
Output voltage tolerance: ±10%
Switching frequency: 100kHz
Output ripple: 75Vpp
Protection: short circuit protection SCP
Min. insulation resistance: 1GΩ
auf Bestellung 23 Stücke:
Lieferzeit 14-21 Tag (e)
Anzahl | Preis |
---|---|
14+ | 5.33 EUR |
18+ | 4.12 EUR |
19+ | 3.89 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details QDC1S-0512S QLT POWER
Category: DC/DC Converters, Description: Converter: DC/DC; 1W; Uin: 4.5÷5.5VDC; Uout: 12VDC; SIL4; 0.03ppm/°C, Operating temperature: -40...85°C, Case: SIL4, Power: 1W, Temperature coefficient: 0.03ppm/°C, Body dimensions: 7x11.7x10mm, Output voltage: 12V DC, Insulation voltage: 1kV DC, Input voltage: 4.5...5.5V DC, Type of converter: DC/DC, Efficiency: 75%, Input voltage tolerance: ±5%, Output voltage tolerance: ±10%, Switching frequency: 100kHz, Output ripple: 75Vpp, Protection: short circuit protection SCP, Min. insulation resistance: 1GΩ, Anzahl je Verpackung: 1 Stücke.
Weitere Produktangebote QDC1S-0512S nach Preis ab 3.89 EUR bis 5.33 EUR
Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis | ||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |
QDC1S-0512S | Hersteller : QLT POWER |
![]() Description: Converter: DC/DC; 1W; Uin: 4.5÷5.5VDC; Uout: 12VDC; SIL4; 0.03ppm/°C Operating temperature: -40...85°C Case: SIL4 Power: 1W Temperature coefficient: 0.03ppm/°C Body dimensions: 7x11.7x10mm Output voltage: 12V DC Insulation voltage: 1kV DC Input voltage: 4.5...5.5V DC Type of converter: DC/DC Efficiency: 75% Input voltage tolerance: ±5% Output voltage tolerance: ±10% Switching frequency: 100kHz Output ripple: 75Vpp Protection: short circuit protection SCP Min. insulation resistance: 1GΩ Anzahl je Verpackung: 1 Stücke |
auf Bestellung 23 Stücke: Lieferzeit 7-14 Tag (e) |
|
||||||||
|
QDC1S-0512S Produktcode: 57879
zu Favoriten hinzufügen
Lieblingsprodukt
|
![]() Leistung, W: 2W Spannung. in., V: 4.5...5.5V Spannung. out,VDC: 12VDC Maximaler Ausgangsstrom: 167mA Gehäuse, Abmessungen, mm: SIL Temperatur, °C: -40...+85°C Isolierung, VDC und weitere Eigenschaften: 1kVDC |
Produkt ist nicht verfügbar
|
|
