Produkte > RECOY/RAYEX ELECTRONICS > R1-D1A0500

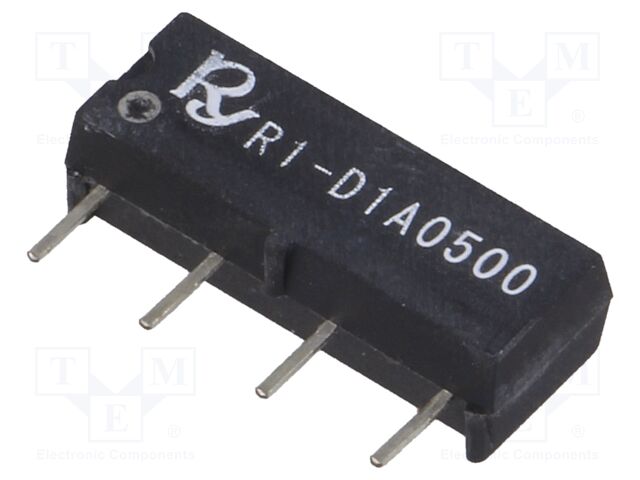

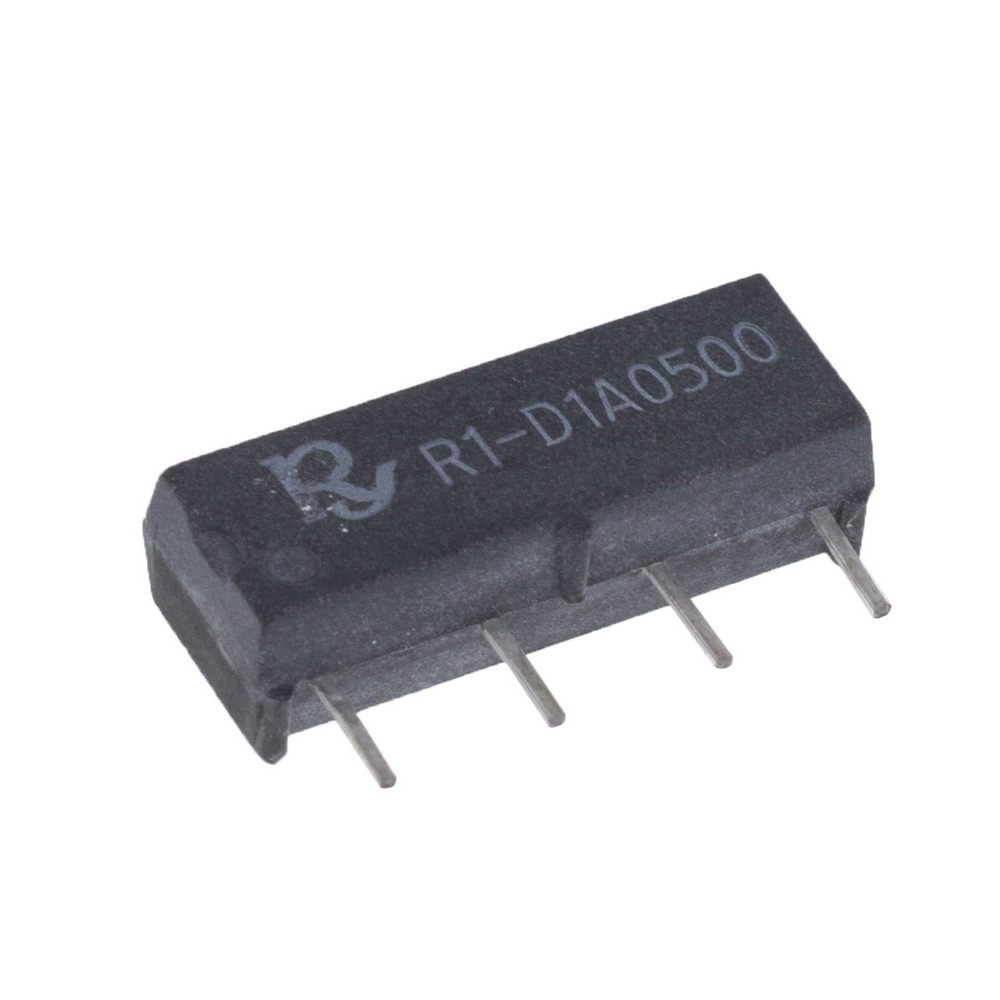

R1-D1A0500

R1-D1A0500 Recoy/RAYEX ELECTRONICS

pVersion=0046&contRep=ZT&docId=005056AB752F1EE88DE793FA593773D1&compId=R1-SERIES-min.pdf?ci_sign=5050c5cb127b4585db5ffd50f98dfc14ab407b44 pVersion=0046&contRep=ZT&docId=E1C05621921953F1A6F5005056AB5A8F&compId=r1_series.pdf?ci_sign=55ece617f290216ba6ed0adcb0fed33700d91f3a Hersteller: Recoy/RAYEX ELECTRONICS
Category: Reed Electromagnetic Relays
Description: Relay: reed switch; SPST-NO; Ucoil: 5VDC; 1A; max.250VDC; 10VA; 50mW
Type of relay: reed switch
Contacts configuration: SPST-NO
Rated coil voltage: 5V DC
Contact current max.: 1A
Switched voltage: max. 250V DC
Coil resistance: 500Ω
Coil power consumption: 50mW
Mounting: PCB
Manufacturer series: R1
Case: SIL
Contact resistance: 0.15Ω
Coil voltage min.: 3.75V DC
Coil voltage max.: 16V DC
Operating temperature: -40...85°C
Body dimensions: 19x5x7mm
Terminal pitch: 5.08mm
Release time: 0.5ms
Operate time: 1ms
Switching capacity: 10VA
Optional equipment: diode
Contact material: AgCdO
auf Bestellung 141 Stücke:
Lieferzeit 14-21 Tag (e)
Anzahl Preis
23+3.19 EUR
25+2.87 EUR
30+2.43 EUR
112+2.14 EUR
Mindestbestellmenge: 23
Im Einkaufswagen  Stück im Wert von  UAH
Produktrezensionen
Produktbewertung abgeben

Technische Details R1-D1A0500 Recoy/RAYEX ELECTRONICS

Category: Reed Electromagnetic Relays, Description: Relay: reed switch; SPST-NO; Ucoil: 5VDC; 1A; max.250VDC; 10VA; 50mW, Type of relay: reed switch, Contacts configuration: SPST-NO, Rated coil voltage: 5V DC, Contact current max.: 1A, Switched voltage: max. 250V DC, Coil resistance: 500Ω, Coil power consumption: 50mW, Mounting: PCB, Manufacturer series: R1, Case: SIL, Contact resistance: 0.15Ω, Coil voltage min.: 3.75V DC, Coil voltage max.: 16V DC, Operating temperature: -40...85°C, Body dimensions: 19x5x7mm, Terminal pitch: 5.08mm, Release time: 0.5ms, Operate time: 1ms, Switching capacity: 10VA, Optional equipment: diode, Contact material: AgCdO, Anzahl je Verpackung: 1 Stücke.
