4-1462037-7 TE Connectivity
Hersteller: TE ConnectivityCategory: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; DPDT; Ucoil: 24VDC; 2A; 0.5A/125VAC; IM
Terminal pitch: 2.2mm
Operating temperature: -40...85°C
IP rating: IP67
Body dimensions: 10x6x5.65mm
Contact material: PdRu + Au
Coil resistance: 2.88kΩ
Contacts configuration: DPDT
AC contacts rating @R: 0.5A / 125V AC
DC contacts rating @R: 2A / 30V DC
Type of relay: electromagnetic
Relay variant: signal; subminiature
Rated coil voltage: 24V DC
Coil voltage min.: 18V DC
Coil power consumption: 200mW
Switched voltage: max. 220V DC; max. 250V AC
Contact current max.: 2A
Switching capacity: 60W; 62.5VA
Contact resistance: 50mΩ
Manufacturer series: IM
Mounting: SMT
Mechanical durability: 100000000 cycles
auf Bestellung 591 Stücke:
Lieferzeit 14-21 Tag (e)
| Anzahl | Preis |
|---|---|
| 14+ | 5.23 EUR |
| 21+ | 3.43 EUR |
| 23+ | 3.25 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details 4-1462037-7 TE Connectivity
Category: Miniature Electromagnetic Relays, Description: Relay: electromagnetic; DPDT; Ucoil: 24VDC; 2A; 0.5A/125VAC; IM, Terminal pitch: 2.2mm, Operating temperature: -40...85°C, IP rating: IP67, Body dimensions: 10x6x5.65mm, Contact material: PdRu + Au, Coil resistance: 2.88kΩ, Contacts configuration: DPDT, AC contacts rating @R: 0.5A / 125V AC, DC contacts rating @R: 2A / 30V DC, Type of relay: electromagnetic, Relay variant: signal; subminiature, Rated coil voltage: 24V DC, Coil voltage min.: 18V DC, Coil power consumption: 200mW, Switched voltage: max. 220V DC; max. 250V AC, Contact current max.: 2A, Switching capacity: 60W; 62.5VA, Contact resistance: 50mΩ, Manufacturer series: IM, Mounting: SMT, Mechanical durability: 100000000 cycles, Anzahl je Verpackung: 1 Stücke.
Weitere Produktangebote 4-1462037-7 nach Preis ab 1.28 EUR bis 7.88 EUR
| Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
4-1462037-7 | Hersteller : TE Connectivity |
Category: Miniature Electromagnetic Relays Description: Relay: electromagnetic; DPDT; Ucoil: 24VDC; 2A; 0.5A/125VAC; IM Terminal pitch: 2.2mm Operating temperature: -40...85°C IP rating: IP67 Body dimensions: 10x6x5.65mm Contact material: PdRu + Au Coil resistance: 2.88kΩ Contacts configuration: DPDT AC contacts rating @R: 0.5A / 125V AC DC contacts rating @R: 2A / 30V DC Type of relay: electromagnetic Relay variant: signal; subminiature Rated coil voltage: 24V DC Coil voltage min.: 18V DC Coil power consumption: 200mW Switched voltage: max. 220V DC; max. 250V AC Contact current max.: 2A Switching capacity: 60W; 62.5VA Contact resistance: 50mΩ Manufacturer series: IM Mounting: SMT Mechanical durability: 100000000 cycles Anzahl je Verpackung: 1 Stücke |
auf Bestellung 591 Stücke: Lieferzeit 7-14 Tag (e) |
|
||||||||
 |
4-1462037-7 | Hersteller : TE Connectivity |
Signal Relay 24VDC 2A DPDT(10x7.48x5.65)mm SMD Medical |
auf Bestellung 1580 Stücke: Lieferzeit 14-21 Tag (e) |
|
||||||||
 +1 |

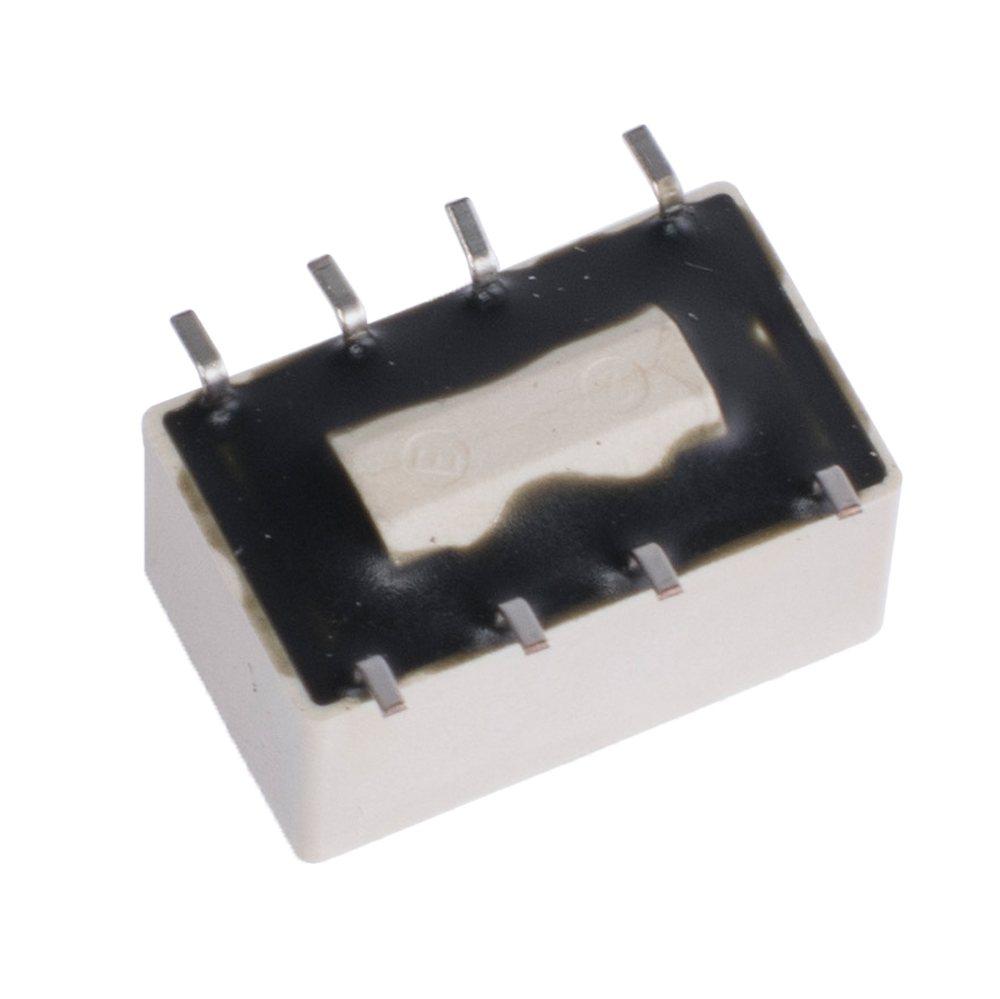

Relais IM07GR Tyco Produktcode: 48457
zu Favoriten hinzufügen
Lieblingsprodukt
|
Hersteller : Tyco Electronics |
Relais Relaistyp: Relais Beschreibung: Kontaktart: 2C; U-Spule: 24V; AC-DC: DC; S-steuer.(max): 200mV; I-komm: 2А; UDC: 220V Abmessungen: 10x6x5,65mm Spulenspannung: 24 VDC Strom max: 2 A Kontaktkonfiguration: DPDT(2C) Schaltspannung: 250 VAC; 30 VDC |
Produkt ist nicht verfügbar
|
|
||||||||
 |
4-1462037-7 | Hersteller : TE Connectivity |
Signal Relay 24VDC 2A DPDT( (10mm 7.5mm 5.65mm)) SMD Medical |
Produkt ist nicht verfügbar |
|||||||||
|
|
4-1462037-7 | Hersteller : TE Connectivity |
Signal Relay 24VDC 2A DPDT(10x7.48x5.65)mm SMD Medical |
Produkt ist nicht verfügbar |
|||||||||
| 4-1462037-7 | Hersteller : TE Connectivity |
Signal Relay 24VDC 2A DPDT(10x7.48x5.65)mm SMD Medical |
Produkt ist nicht verfügbar |
