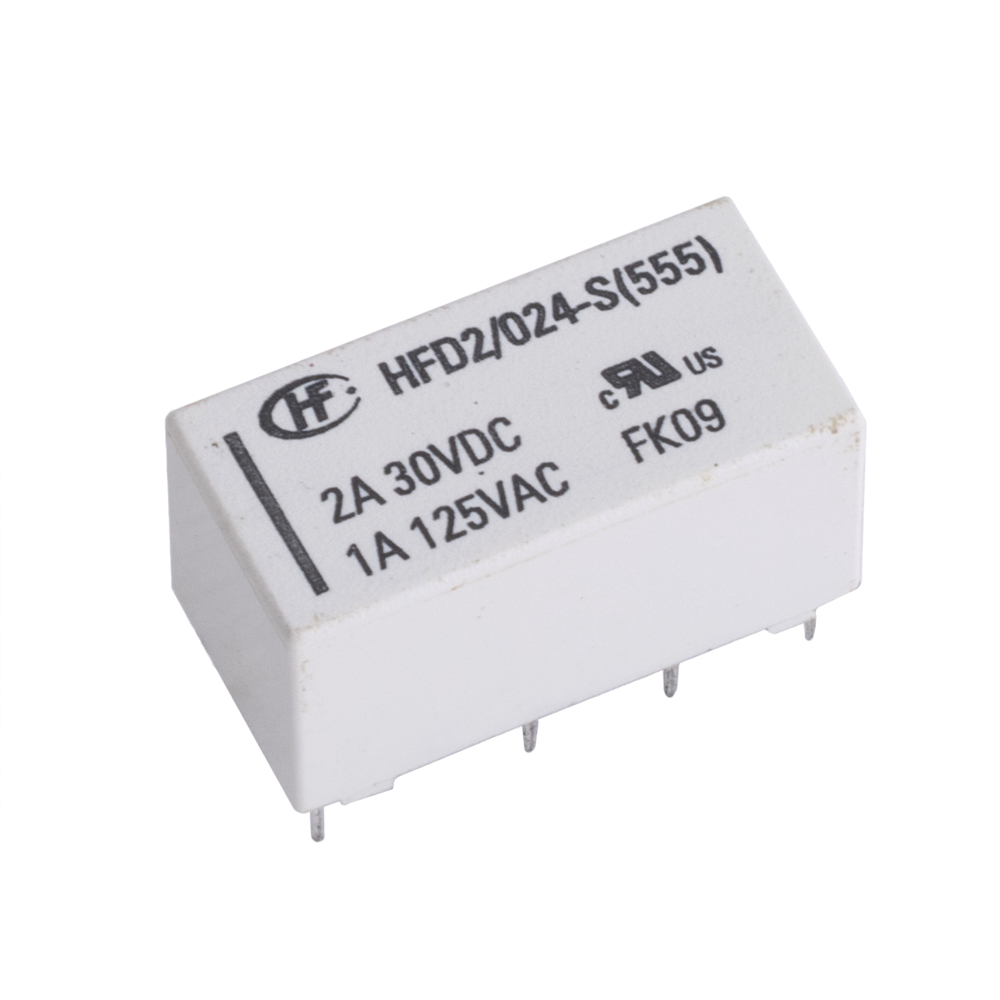

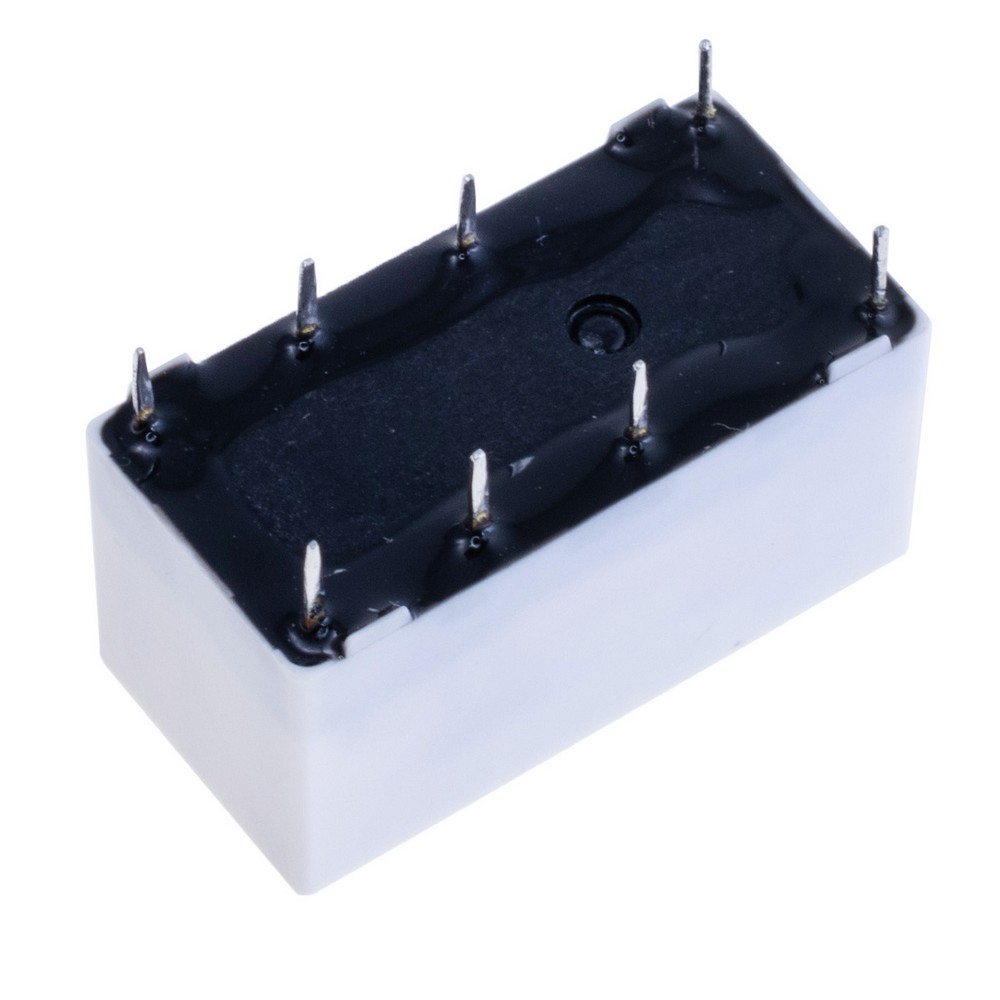

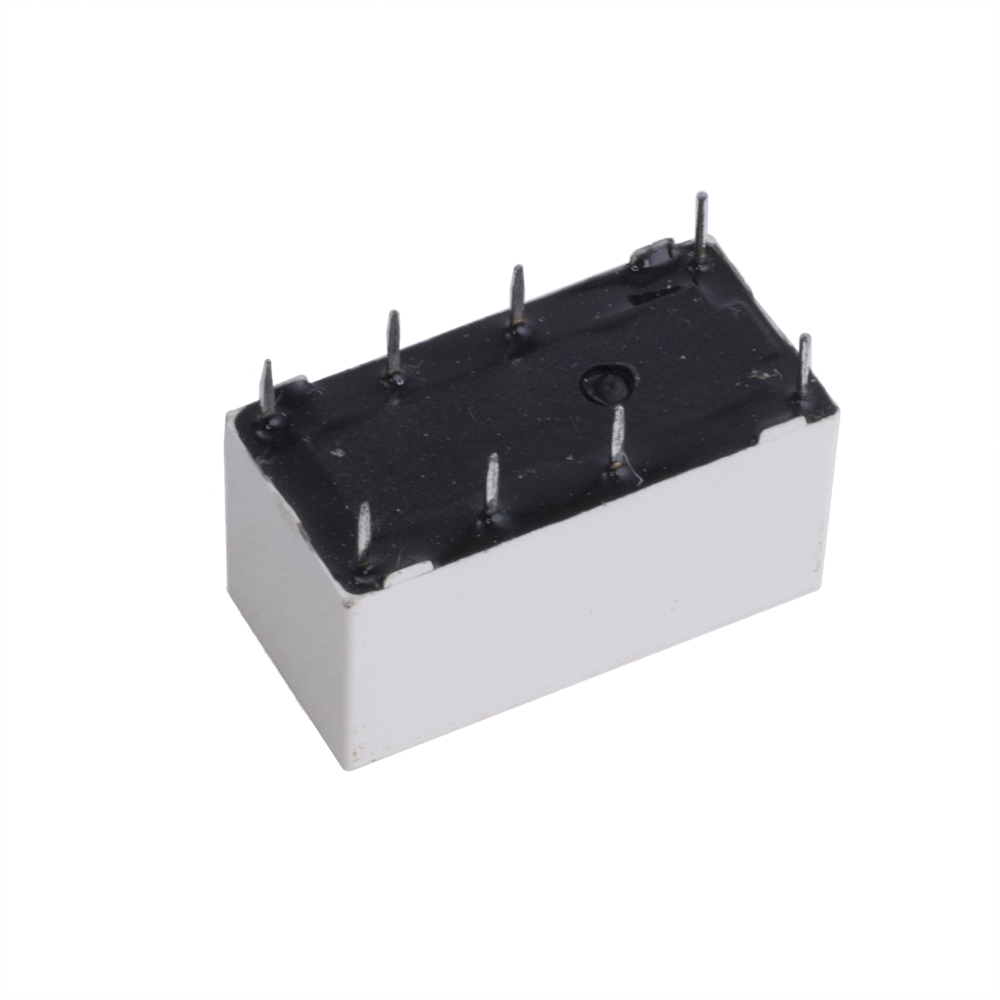

Реле HFD2/024-S
Produktcode: 213810
Hersteller: Relaistyp: Мініатюрне
Beschreibung: Реле. Тип контактів: 2C. Одна котушка. Uкатушкі: 24VDC. Навантаження контакту: 1A / 125 VAC, 2A / 30 VDC.
Abmessungen: 20,2x10,2x10,6 mm
Spulenspannung: 24 VDC
Strom max: 1 A
Kontaktkonfiguration: DPDT(2C)
auf Bestellung 4 Stück:
Lieferzeit 21-28 Tag (e)
Produktrezensionen
Produktbewertung abgeben
Weitere Produktangebote Реле HFD2/024-S
Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis |
---|---|---|---|---|---|
![]() +3 |
Реле HFD2/024-S Produktcode: 202509
zu Favoriten hinzufügen
Lieblingsprodukt
|
![]() Relaistyp: Мініатюрне Beschreibung: Тип контактів: 2C. Uкатушкі: 24VDC. Навантаження контакту: 1A / 125 VAC, 2A / 30 VDC. Abmessungen: 20,2x10,2x10,6 mm Spulenspannung: 24 VDC Strom max: 1 A Kontaktkonfiguration: DPDT(2C) Schaltspannung: 125 VAC. 30 VDC |
Produkt ist nicht verfügbar
|
||
HFD2/024-S | Hersteller : Hongfa | HFD2/024-S |
Produkt ist nicht verfügbar |
||
![]() |
HFD2/024-S | Hersteller : HONGFA RELAY |
![]() Description: Relay: electromagnetic; DPDT; Ucoil: 24VDC; 3A; 1A/125VAC; 3A/30VDC Mounting: PCB Operating temperature: -40...85°C Terminal pitch: 5.08mm Release time: 3.5ms Operate time: 4.5ms Body dimensions: 20.2x10.2x10.6mm Contact resistance: 100mΩ Coil power consumption: 150mW AC contacts rating @R: 1A / 125V AC DC contacts rating @R: 3A / 30V DC Contact current max.: 3A Coil voltage min.: 19.2V DC Rated coil voltage: 24V DC Coil voltage max.: 55.4V DC Switched voltage: max. 220V DC; max. 250V AC Coil resistance: 3.84kΩ Contact material: AgPd/Au 0,2μm Relay variant: subminiature Contacts configuration: DPDT Type of relay: electromagnetic Anzahl je Verpackung: 1 Stücke |
Produkt ist nicht verfügbar |
|
![]() |
HFD2/024-S | Hersteller : HONGFA RELAY |
![]() Description: Relay: electromagnetic; DPDT; Ucoil: 24VDC; 3A; 1A/125VAC; 3A/30VDC Mounting: PCB Operating temperature: -40...85°C Terminal pitch: 5.08mm Release time: 3.5ms Operate time: 4.5ms Body dimensions: 20.2x10.2x10.6mm Contact resistance: 100mΩ Coil power consumption: 150mW AC contacts rating @R: 1A / 125V AC DC contacts rating @R: 3A / 30V DC Contact current max.: 3A Coil voltage min.: 19.2V DC Rated coil voltage: 24V DC Coil voltage max.: 55.4V DC Switched voltage: max. 220V DC; max. 250V AC Coil resistance: 3.84kΩ Contact material: AgPd/Au 0,2μm Relay variant: subminiature Contacts configuration: DPDT Type of relay: electromagnetic |
Produkt ist nicht verfügbar |
