Produkte > RAYSTAR OPTRONICS > RFH700A8-AYH-MNN

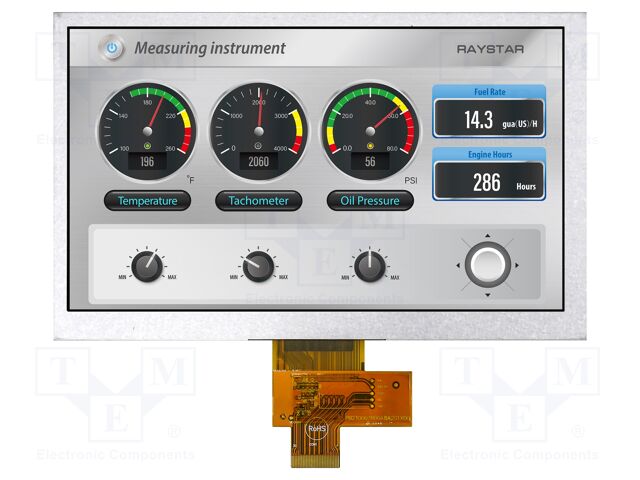

RFH700A8-AYH-MNN
  • RFH700A8-AYH-MNN
  • RFH700A8-AYH-MNN
  • RFH700A8-AYH-MNN

RFH700A8-AYH-MNN RAYSTAR OPTRONICS

pVersion=0046&contRep=ZT&docId=005056AB90B41EDC87EF696602C260C7&compId=RFH700A8-AYH-MNN.pdf?ci_sign=f0a0bfb3c062def7d1c99abe5e0a56568714f06f Hersteller: RAYSTAR OPTRONICS
Category: TFT displays
Description: Display: TFT; 7"; 1024x600; Illumin: LED; Dim: 169.9x103.4x5.6mm
Supply voltage: 1.71...1.89V DC
Kind of display: graphical
Illumination: LED
Colour: RGB
Type of display: TFT
Backlight colour: white
Tape pitch: 0.5mm
Window dimensions (H x W): 154.2114x85.92mm
Dimensions: 169.9x103.4x5.6mm
Screen size: 7"
Number of pins: 30
Luminosity: 1000...1100cd/m2
Contrast: 800:1
Display resolution: 1024x600
Connector pinout layout: 1x30
Interface: MIPI
Display features: anti-glare glass
Touchpad: none
Kind of controller: EK73217BCGA; EK79007AD3
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
Produktrezensionen
Produktbewertung abgeben

Technische Details RFH700A8-AYH-MNN RAYSTAR OPTRONICS

Category: TFT displays, Description: Display: TFT; 7"; 1024x600; Illumin: LED; Dim: 169.9x103.4x5.6mm, Supply voltage: 1.71...1.89V DC, Kind of display: graphical, Illumination: LED, Colour: RGB, Type of display: TFT, Backlight colour: white, Tape pitch: 0.5mm, Window dimensions (H x W): 154.2114x85.92mm, Dimensions: 169.9x103.4x5.6mm, Screen size: 7", Number of pins: 30, Luminosity: 1000...1100cd/m2, Contrast: 800:1, Display resolution: 1024x600, Connector pinout layout: 1x30, Interface: MIPI, Display features: anti-glare glass, Touchpad: none, Kind of controller: EK73217BCGA; EK79007AD3.
