RM699V-P-12 Relpol
Produktcode: 126668
zu Favoriten hinzufügen
Lieblingsprodukt
Hersteller: Relpol
Relaistyp: Relais mittlerer Leistung (5-20A)
Beschreibung: Spulenspannung min. 9VDC, Spulenspannung max. 18VDC
Abmessungen: 28x5x15 mm
Spulenspannung: 12 VDC
Strom max.: 6 А
Kontaktkonfiguration: SPDT(1C)
Schaltspannung: 250 VAC; 24 VDC
Produktrezensionen
Produktbewertung abgeben
Weitere Produktangebote RM699V-P-12 nach Preis ab 3.51 EUR bis 4.75 EUR
| Foto | Bezeichnung | Hersteller | Beschreibung | Verfügbarkeit | Privatkunde | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |

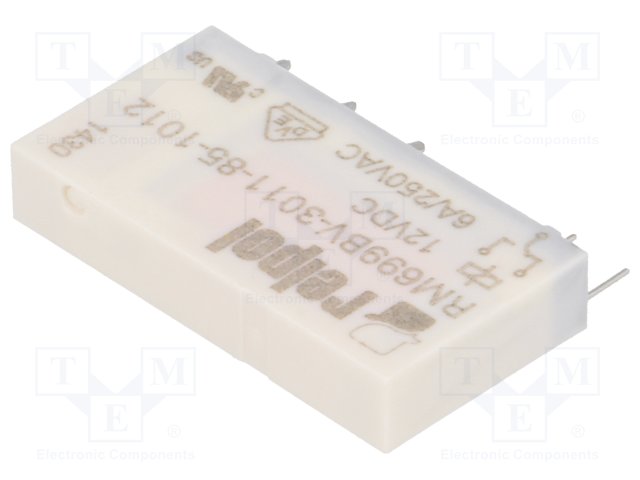

RM699BV-3011-85-1012 | RELPOL |
Category: Miniature Electromagnetic Relays Description: Relay: electromagnetic; SPDT; Ucoil: 12VDC; 6A; 6A/250VAC; 6A/24VDC Type of relay: electromagnetic Contacts configuration: SPDT Rated coil voltage: 12V DC Contact current max.: 6A AC contacts rating @R: 6A / 250V AC DC contacts rating @R: 6A / 24V DC Manufacturer series: RM699B Switched voltage: max. 24V DC; max. 400V AC Relay variant: interface Mounting: PCB; socket; vertical Coil resistance: 848Ω Coil voltage min.: 9V DC Coil voltage max.: 18V DC Operate time: 8ms Body dimensions: 28x5x15mm Release time: 4ms Coil power consumption: 170mW IP rating: IP64 Contact resistance: 100mΩ Contact material: AgSnO2 Terminal pitch: 5mm Related items: PI6W-1P; PI6W-1P-24VDC OEM number: 2613696 Operating temperature: -40...85°C |
auf Bestellung 988 Stücke: Lieferzeit 14-21 Tag (e) |
|
| RM699BV-3011-85-1012 |
|
Hersteller: RELPOL
Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; SPDT; Ucoil: 12VDC; 6A; 6A/250VAC; 6A/24VDC
Type of relay: electromagnetic
Contacts configuration: SPDT
Rated coil voltage: 12V DC
Contact current max.: 6A
AC contacts rating @R: 6A / 250V AC
DC contacts rating @R: 6A / 24V DC
Manufacturer series: RM699B
Switched voltage: max. 24V DC; max. 400V AC
Relay variant: interface
Mounting: PCB; socket; vertical
Coil resistance: 848Ω
Coil voltage min.: 9V DC
Coil voltage max.: 18V DC
Operate time: 8ms
Body dimensions: 28x5x15mm
Release time: 4ms
Coil power consumption: 170mW
IP rating: IP64
Contact resistance: 100mΩ
Contact material: AgSnO2
Terminal pitch: 5mm
Related items: PI6W-1P; PI6W-1P-24VDC
OEM number: 2613696
Operating temperature: -40...85°C
Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; SPDT; Ucoil: 12VDC; 6A; 6A/250VAC; 6A/24VDC
Type of relay: electromagnetic
Contacts configuration: SPDT
Rated coil voltage: 12V DC
Contact current max.: 6A
AC contacts rating @R: 6A / 250V AC
DC contacts rating @R: 6A / 24V DC
Manufacturer series: RM699B
Switched voltage: max. 24V DC; max. 400V AC
Relay variant: interface
Mounting: PCB; socket; vertical
Coil resistance: 848Ω
Coil voltage min.: 9V DC
Coil voltage max.: 18V DC
Operate time: 8ms
Body dimensions: 28x5x15mm
Release time: 4ms
Coil power consumption: 170mW
IP rating: IP64
Contact resistance: 100mΩ
Contact material: AgSnO2
Terminal pitch: 5mm
Related items: PI6W-1P; PI6W-1P-24VDC
OEM number: 2613696
Operating temperature: -40...85°C
auf Bestellung 988 Stücke:
Lieferzeit 14-21 Tag (e)
| Anzahl | Privatkunde |
|---|---|
| 18+ | 4.75 EUR |
| 21+ | 4.08 EUR |
| 25+ | 3.68 EUR |
| 100+ | 3.51 EUR |
