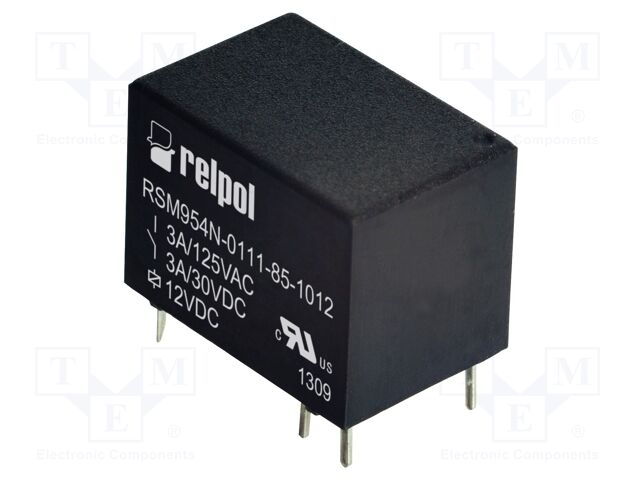

RSM954N-0111-85-1012 RELPOL
Hersteller: RELPOLCategory: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; SPDT; Ucoil: 12VDC; 3A; 3A/125VAC; 3A/30VDC
Type of relay: electromagnetic
Contacts configuration: SPDT
Rated coil voltage: 12V DC
Contact current max.: 3A
DC contacts rating @R: 3A / 30V DC
Manufacturer series: RSM954N
Switched voltage: max. 30V DC; max. 220V AC
Relay variant: monostable; subminiature
Mounting: PCB
Coil resistance: 400Ω
Coil voltage min.: 9V DC
Body dimensions: 15.5x11x11.5mm
Coil power consumption: 360mW
Mechanical durability: 100000000 cycles
Operating temperature: -25...55°C
Contact material: Ag/Au 0,2μm
Electrical life: 100000 cycles
Coil voltage max.: 13.2V DC
OEM number: 2614627
IP rating: IP64
Terminal pitch: 2.54mm
Release time: 5ms
Operate time: 5ms
Contact resistance: 50mΩ
AC contacts rating @R: 3A / 125V AC
Anzahl je Verpackung: 1 Stücke
auf Bestellung 35 Stücke:
Lieferzeit 7-14 Tag (e)
| Anzahl | Preis |
|---|---|
| 30+ | 2.4 EUR |
| 34+ | 2.16 EUR |
| 35+ | 2.04 EUR |
| 500+ | 1.3 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details RSM954N-0111-85-1012 RELPOL
Category: Miniature Electromagnetic Relays, Description: Relay: electromagnetic; SPDT; Ucoil: 12VDC; 3A; 3A/125VAC; 3A/30VDC, Type of relay: electromagnetic, Contacts configuration: SPDT, Rated coil voltage: 12V DC, Contact current max.: 3A, DC contacts rating @R: 3A / 30V DC, Manufacturer series: RSM954N, Switched voltage: max. 30V DC; max. 220V AC, Relay variant: monostable; subminiature, Mounting: PCB, Coil resistance: 400Ω, Coil voltage min.: 9V DC, Body dimensions: 15.5x11x11.5mm, Coil power consumption: 360mW, Mechanical durability: 100000000 cycles, Operating temperature: -25...55°C, Contact material: Ag/Au 0,2μm, Electrical life: 100000 cycles, Coil voltage max.: 13.2V DC, OEM number: 2614627, IP rating: IP64, Terminal pitch: 2.54mm, Release time: 5ms, Operate time: 5ms, Contact resistance: 50mΩ, AC contacts rating @R: 3A / 125V AC, Anzahl je Verpackung: 1 Stücke.
Weitere Produktangebote RSM954N-0111-85-1012 nach Preis ab 2.04 EUR bis 2.4 EUR
| Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
RSM954N-0111-85-1012 | Hersteller : RELPOL |
Category: Miniature Electromagnetic Relays Description: Relay: electromagnetic; SPDT; Ucoil: 12VDC; 3A; 3A/125VAC; 3A/30VDC Type of relay: electromagnetic Contacts configuration: SPDT Rated coil voltage: 12V DC Contact current max.: 3A DC contacts rating @R: 3A / 30V DC Manufacturer series: RSM954N Switched voltage: max. 30V DC; max. 220V AC Relay variant: monostable; subminiature Mounting: PCB Coil resistance: 400Ω Coil voltage min.: 9V DC Body dimensions: 15.5x11x11.5mm Coil power consumption: 360mW Mechanical durability: 100000000 cycles Operating temperature: -25...55°C Contact material: Ag/Au 0,2μm Electrical life: 100000 cycles Coil voltage max.: 13.2V DC OEM number: 2614627 IP rating: IP64 Terminal pitch: 2.54mm Release time: 5ms Operate time: 5ms Contact resistance: 50mΩ AC contacts rating @R: 3A / 125V AC |
auf Bestellung 35 Stücke: Lieferzeit 14-21 Tag (e) |
|
