Produkte > ROHDE & SCHWARZ > RTB3K-54PK
RTB3K-54PK
  • RTB3K-54PK
  • RTB3K-54PK
  • RTB3K-54PK
  • RTB3K-54PK

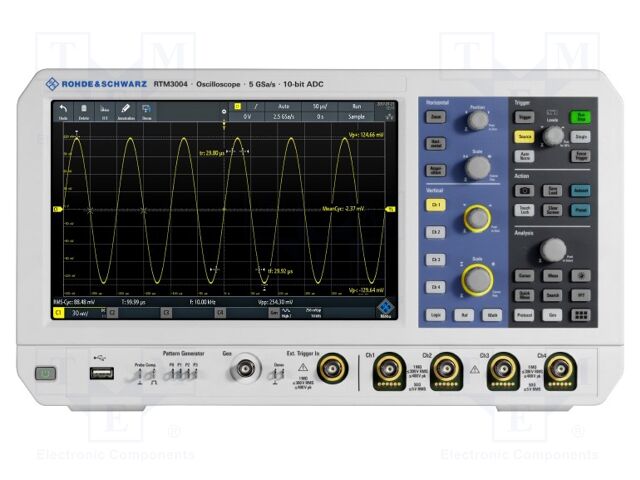

RTB3K-54PK ROHDE & SCHWARZ


pVersion=0046&contRep=ZT&docId=005056AB90B41EDB90A25D16CD70E0C7&compId=RTM3K-54PK.pdf?ci_sign=1e4315c51c3c6547a3756e563bc86dd5563b50d0 Hersteller: ROHDE & SCHWARZ
Category: Digital Oscilloscopes
Description: Oscilloscope: mixed signal; Ch: 4; 2,5Gsps,5Gsps interleaved
Type of oscilloscope: mixed signal
Number of channels: 4
Sampling: 2,5Gsps; 5Gsps interleaved
Memory record length: 80Mpts
Kind of display used: colour; LCD TFT 10,1"
Trigger modes: automatic; normal; single
Trigger: ARINC 429; CAN/LIN; falling-edge; I2C; MIL-STD-1553; pattern width; risetime; rising-edge; runt; serial protocol; SPI; UART/RS232/RS422/RS485; video signal
Time base: 0.5n...500s/div
Max. input voltage: 300V
Vertical resolution: 10bit
Input coupling: AC, DC, GND
Trigger coupling: AC; DC; highpass
Interface: LAN; USB
Manufacturer series: RTM3000
Input impedance: 1MΩ/14pF
Input sensitivity: 500µV/div...10V/div
Additional functions: arbitrary waveform generator
Measuring instrument features: arbitrary waveform generator; power analysis; protocols analyse: ARINC 429; protocols analyse: CAN/LIN; protocols analyse: I2C, SPI; protocols analyse: I2C, SPI, RS232/UART, USB, CAN, LIN, FlexRay; protocols analyse: I2C, SPI, UART, Parallel; protocols analyse: MIL-STD-1553; protocols analyse: UART/RS232/RS422/RS485; segmented memory function; spectrum analysis and spectrogram function
Standard equipment: mains cable; oscilloscope probe (1 per channel)
Producer guarantee (months): 36
Dimensions: 390x220x152mm
Supply voltage: 100...240V AC
Display resolution: 1280x800
Touchpad: yes
Anzahl je Verpackung: 1 Stücke
Produkt ist nicht verfügbar

Im Einkaufswagen  Stück im Wert von  UAH
Produktrezensionen
Produktbewertung abgeben

Technische Details RTB3K-54PK ROHDE & SCHWARZ

Category: Digital Oscilloscopes, Description: Oscilloscope: mixed signal; Ch: 4; 2,5Gsps,5Gsps interleaved, Type of oscilloscope: mixed signal, Number of channels: 4, Sampling: 2,5Gsps; 5Gsps interleaved, Memory record length: 80Mpts, Kind of display used: colour; LCD TFT 10,1", Trigger modes: automatic; normal; single, Trigger: ARINC 429; CAN/LIN; falling-edge; I2C; MIL-STD-1553; pattern width; risetime; rising-edge; runt; serial protocol; SPI; UART/RS232/RS422/RS485; video signal, Time base: 0.5n...500s/div, Max. input voltage: 300V, Vertical resolution: 10bit, Input coupling: AC, DC, GND, Trigger coupling: AC; DC; highpass, Interface: LAN; USB, Manufacturer series: RTM3000, Input impedance: 1MΩ/14pF, Input sensitivity: 500µV/div...10V/div, Additional functions: arbitrary waveform generator, Measuring instrument features: arbitrary waveform generator; power analysis; protocols analyse: ARINC 429; protocols analyse: CAN/LIN; protocols analyse: I2C, SPI; protocols analyse: I2C, SPI, RS232/UART, USB, CAN, LIN, FlexRay; protocols analyse: I2C, SPI, UART, Parallel; protocols analyse: MIL-STD-1553; protocols analyse: UART/RS232/RS422/RS485; segmented memory function; spectrum analysis and spectrogram function, Standard equipment: mains cable; oscilloscope probe (1 per channel), Producer guarantee (months): 36, Dimensions: 390x220x152mm, Supply voltage: 100...240V AC, Display resolution: 1280x800, Touchpad: yes, Anzahl je Verpackung: 1 Stücke.
