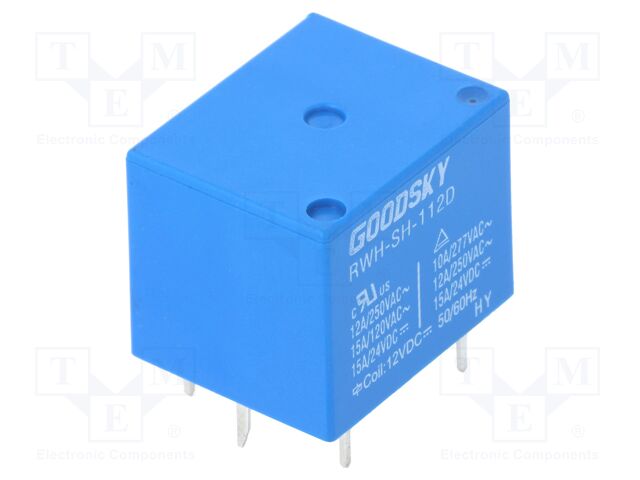

RWH-SH-112D GOODSKY
Hersteller: GOODSKY
Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; SPDT; Ucoil: 12VDC; 15A; 12A/250VAC; PCB
Type of relay: electromagnetic
Contacts configuration: SPDT
Rated coil voltage: 12V DC
Contact current max.: 15A
AC contacts rating @R: 12A / 250V AC
DC contacts rating @R: 15A / 24V DC
Switched voltage: max. 110V DC; max. 240V AC
Relay variant: miniature
Mounting: PCB
Coil resistance: 400Ω
Coil voltage min.: 9V DC
Coil voltage max.: 15.6V DC
Operate time: 10ms
Body dimensions: 19x15.4x15mm
Release time: 5ms
Coil power consumption: 360mW
Operating temperature: -30...85°C
Relay series: RWH
Contact resistance: 100mΩ
Contact material: AgSnO2
Anzahl je Verpackung: 1 Stücke
Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; SPDT; Ucoil: 12VDC; 15A; 12A/250VAC; PCB
Type of relay: electromagnetic
Contacts configuration: SPDT
Rated coil voltage: 12V DC
Contact current max.: 15A
AC contacts rating @R: 12A / 250V AC
DC contacts rating @R: 15A / 24V DC
Switched voltage: max. 110V DC; max. 240V AC
Relay variant: miniature
Mounting: PCB
Coil resistance: 400Ω
Coil voltage min.: 9V DC
Coil voltage max.: 15.6V DC
Operate time: 10ms
Body dimensions: 19x15.4x15mm
Release time: 5ms
Coil power consumption: 360mW
Operating temperature: -30...85°C
Relay series: RWH
Contact resistance: 100mΩ
Contact material: AgSnO2
Anzahl je Verpackung: 1 Stücke
auf Bestellung 3563 Stücke:
Lieferzeit 7-14 Tag (e)
Anzahl | Preis ohne MwSt |
---|---|
88+ | 0.82 EUR |
103+ | 0.7 EUR |
114+ | 0.63 EUR |
129+ | 0.56 EUR |
136+ | 0.53 EUR |
