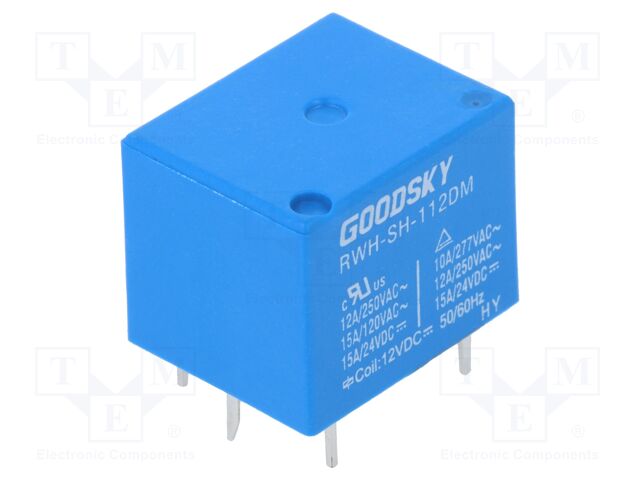

RWH-SH-112DM GOODSKY
Hersteller: GOODSKY
Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; 15A; 12A/250VAC
Type of relay: electromagnetic
Contacts configuration: SPST-NO
Rated coil voltage: 12V DC
Contact current max.: 15A
AC contacts rating @R: 12A / 250V AC
DC contacts rating @R: 15A / 24V DC
Switched voltage: max. 110V DC; max. 240V AC
Relay variant: miniature
Mounting: PCB
Coil resistance: 400Ω
Coil voltage min.: 9V DC
Coil voltage max.: 15.6V DC
Operate time: 10ms
Body dimensions: 19x15.4x15mm
Release time: 5ms
Coil power consumption: 360mW
Operating temperature: -30...85°C
Relay series: RWH
Contact resistance: 100mΩ
Contact material: AgSnO2
Anzahl je Verpackung: 1 Stücke
Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; 15A; 12A/250VAC
Type of relay: electromagnetic
Contacts configuration: SPST-NO
Rated coil voltage: 12V DC
Contact current max.: 15A
AC contacts rating @R: 12A / 250V AC
DC contacts rating @R: 15A / 24V DC
Switched voltage: max. 110V DC; max. 240V AC
Relay variant: miniature
Mounting: PCB
Coil resistance: 400Ω
Coil voltage min.: 9V DC
Coil voltage max.: 15.6V DC
Operate time: 10ms
Body dimensions: 19x15.4x15mm
Release time: 5ms
Coil power consumption: 360mW
Operating temperature: -30...85°C
Relay series: RWH
Contact resistance: 100mΩ
Contact material: AgSnO2
Anzahl je Verpackung: 1 Stücke
auf Bestellung 60 Stücke:
Lieferzeit 7-14 Tag (e)
Anzahl | Preis ohne MwSt |
---|---|
60+ | 1.19 EUR |
77+ | 0.93 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details RWH-SH-112DM GOODSKY
Category: Miniature Electromagnetic Relays, Description: Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; 15A; 12A/250VAC, Type of relay: electromagnetic, Contacts configuration: SPST-NO, Rated coil voltage: 12V DC, Contact current max.: 15A, AC contacts rating @R: 12A / 250V AC, DC contacts rating @R: 15A / 24V DC, Switched voltage: max. 110V DC; max. 240V AC, Relay variant: miniature, Mounting: PCB, Coil resistance: 400Ω, Coil voltage min.: 9V DC, Coil voltage max.: 15.6V DC, Operate time: 10ms, Body dimensions: 19x15.4x15mm, Release time: 5ms, Coil power consumption: 360mW, Operating temperature: -30...85°C, Relay series: RWH, Contact resistance: 100mΩ, Contact material: AgSnO2, Anzahl je Verpackung: 1 Stücke.
