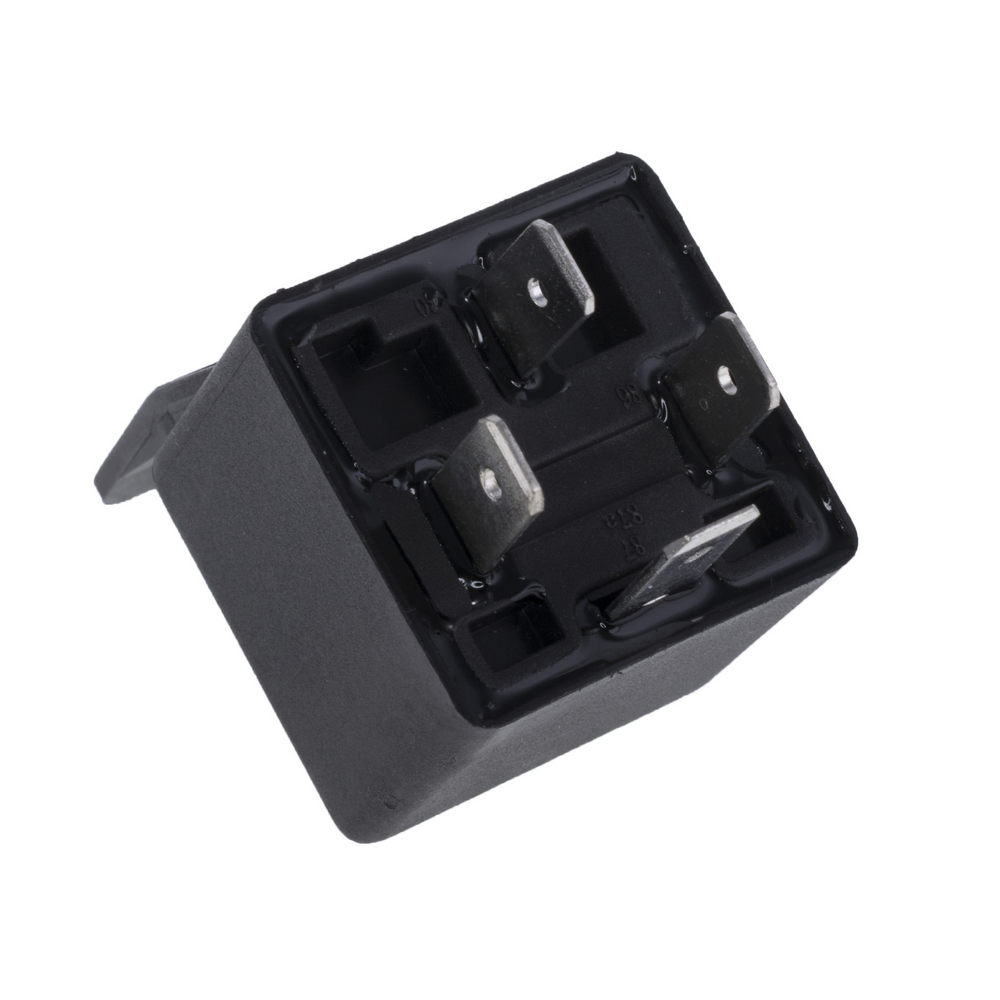

S10-1A-C1-12VDC SHORI ELECTRIC
Hersteller: SHORI ELECTRICCategory: Automotive Electromagnetic Relays
Description: Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; 40A; automotive
Mounting: on panel; socket
Leads: connectors
Contacts configuration: SPST-NO
Type of relay: electromagnetic
Operating temperature: -30...80°C
Release time: 10ms
Leads dimensions: 6.3x0.8mm
Operate time: 10ms
Body dimensions: 28.6x28.6x25.3mm
Contact resistance: 100mΩ
Coil current: 150mA
Coil power consumption: 1.8W
Coil voltage min.: 9V DC
DC contacts rating @R: 40A / 12V DC
Rated coil voltage: 12V DC
Coil voltage max.: 18V DC
Contact current max.: 40A
Coil resistance: 80Ω
Electrical life: 100000 cycles
Mechanical durability: 10000000 cycles
Manufacturer series: S10
Related items: CS1-CW; RS-D03
Contact material: silver alloy
Relay variant: automotive
Anzahl je Verpackung: 1 Stücke
auf Bestellung 1988 Stücke:
Lieferzeit 7-14 Tag (e)
| Anzahl | Preis |
|---|---|
| 41+ | 1.74 EUR |
| 46+ | 1.59 EUR |
| 50+ | 1.43 EUR |
| 100+ | 1.37 EUR |
| 500+ | 1.23 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details S10-1A-C1-12VDC SHORI ELECTRIC
Category: Automotive Electromagnetic Relays, Description: Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; 40A; automotive, Mounting: on panel; socket, Leads: connectors, Contacts configuration: SPST-NO, Type of relay: electromagnetic, Operating temperature: -30...80°C, Release time: 10ms, Leads dimensions: 6.3x0.8mm, Operate time: 10ms, Body dimensions: 28.6x28.6x25.3mm, Contact resistance: 100mΩ, Coil current: 150mA, Coil power consumption: 1.8W, Coil voltage min.: 9V DC, DC contacts rating @R: 40A / 12V DC, Rated coil voltage: 12V DC, Coil voltage max.: 18V DC, Contact current max.: 40A, Coil resistance: 80Ω, Electrical life: 100000 cycles, Mechanical durability: 10000000 cycles, Manufacturer series: S10, Related items: CS1-CW; RS-D03, Contact material: silver alloy, Relay variant: automotive, Anzahl je Verpackung: 1 Stücke.
