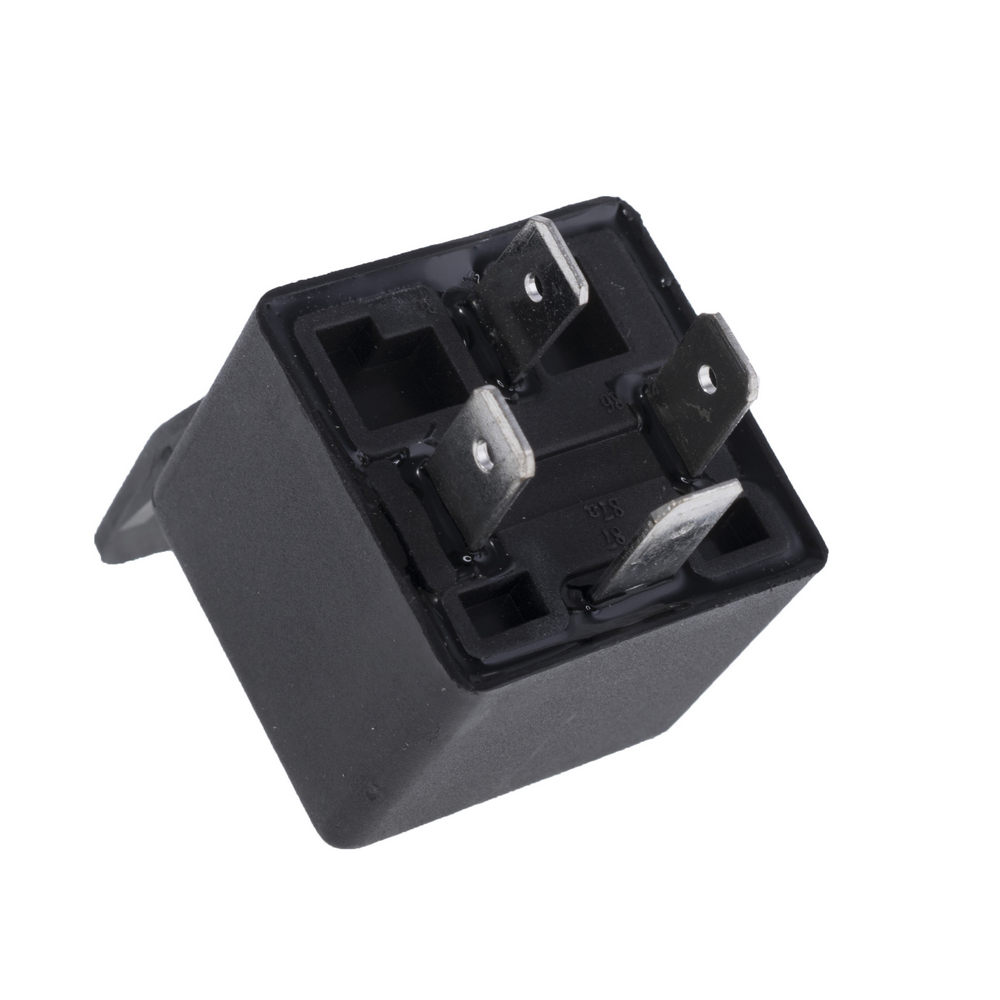

S10-1A-C1-24VDC SHORI ELECTRIC
Hersteller: SHORI ELECTRIC
Category: Automotive Electromagnetic Relays
Description: Relay: electromagnetic; SPST-NO; Ucoil: 24VDC; 40A; automotive
Type of relay: electromagnetic
Contacts configuration: SPST-NO
Rated coil voltage: 24V DC
Contact current max.: 40A
DC contacts rating @R: 40A / 12V DC
Relay variant: automotive
Coil voltage min.: 18V DC
Coil voltage max.: 36V DC
Coil resistance: 320Ω
Contact material: silver alloy
Operating temperature: -30...80°C
Body dimensions: 28.6x28.6x25.3mm
Mounting: on panel; socket
Coil power consumption: 1.8W
Relay series: S10
Contact resistance: 100mΩ
Leads: connectors 6,3x0,8mm
Mechanical durability: 10000000 cycles
Coil current: 75mA
Operate time: 10ms
Release time: 10ms
Electrical life: 100000 cycles
Related items: CS1-CW; RS-D03
Anzahl je Verpackung: 1 Stücke
Category: Automotive Electromagnetic Relays
Description: Relay: electromagnetic; SPST-NO; Ucoil: 24VDC; 40A; automotive
Type of relay: electromagnetic
Contacts configuration: SPST-NO
Rated coil voltage: 24V DC
Contact current max.: 40A
DC contacts rating @R: 40A / 12V DC
Relay variant: automotive
Coil voltage min.: 18V DC
Coil voltage max.: 36V DC
Coil resistance: 320Ω
Contact material: silver alloy
Operating temperature: -30...80°C
Body dimensions: 28.6x28.6x25.3mm
Mounting: on panel; socket
Coil power consumption: 1.8W
Relay series: S10
Contact resistance: 100mΩ
Leads: connectors 6,3x0,8mm
Mechanical durability: 10000000 cycles
Coil current: 75mA
Operate time: 10ms
Release time: 10ms
Electrical life: 100000 cycles
Related items: CS1-CW; RS-D03
Anzahl je Verpackung: 1 Stücke
auf Bestellung 661 Stücke:
Lieferzeit 7-14 Tag (e)
Anzahl | Preis ohne MwSt |
---|---|
33+ | 2.23 EUR |
35+ | 2.04 EUR |
56+ | 1.29 EUR |
59+ | 1.22 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details S10-1A-C1-24VDC SHORI ELECTRIC
Category: Automotive Electromagnetic Relays, Description: Relay: electromagnetic; SPST-NO; Ucoil: 24VDC; 40A; automotive, Type of relay: electromagnetic, Contacts configuration: SPST-NO, Rated coil voltage: 24V DC, Contact current max.: 40A, DC contacts rating @R: 40A / 12V DC, Relay variant: automotive, Coil voltage min.: 18V DC, Coil voltage max.: 36V DC, Coil resistance: 320Ω, Contact material: silver alloy, Operating temperature: -30...80°C, Body dimensions: 28.6x28.6x25.3mm, Mounting: on panel; socket, Coil power consumption: 1.8W, Relay series: S10, Contact resistance: 100mΩ, Leads: connectors 6,3x0,8mm, Mechanical durability: 10000000 cycles, Coil current: 75mA, Operate time: 10ms, Release time: 10ms, Electrical life: 100000 cycles, Related items: CS1-CW; RS-D03, Anzahl je Verpackung: 1 Stücke.
Verwandte Produkte S10-1A-C1-24VDC SHORI ELECTRIC
Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis ohne MwSt | ||||
---|---|---|---|---|---|---|---|---|---|
Block fur Relais mit Drahten RS-D03 Produktcode: 73693 |
Hersteller : Rayex |
Relais Relaistyp: Колодка під реле Beschreibung: Block fuer Relais; 40A; 5 Pin Strom max: 40 A |
verfügbar: 14 Stück
|
|
Weitere Produktangebote S10-1A-C1-24VDC nach Preis ab 1.22 EUR bis 4.62 EUR
Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis ohne MwSt | ||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
S10-1A-C1-24VDC | Hersteller : SHORI ELECTRIC |
Category: Automotive Electromagnetic Relays Description: Relay: electromagnetic; SPST-NO; Ucoil: 24VDC; 40A; automotive Type of relay: electromagnetic Contacts configuration: SPST-NO Rated coil voltage: 24V DC Contact current max.: 40A DC contacts rating @R: 40A / 12V DC Relay variant: automotive Coil voltage min.: 18V DC Coil voltage max.: 36V DC Coil resistance: 320Ω Contact material: silver alloy Operating temperature: -30...80°C Body dimensions: 28.6x28.6x25.3mm Mounting: on panel; socket Coil power consumption: 1.8W Relay series: S10 Contact resistance: 100mΩ Leads: connectors 6,3x0,8mm Mechanical durability: 10000000 cycles Coil current: 75mA Operate time: 10ms Release time: 10ms Electrical life: 100000 cycles Related items: CS1-CW; RS-D03 |
auf Bestellung 661 Stücke: Lieferzeit 14-21 Tag (e) |
|
|||||||||||
S10-1A-C1-24VDC | Hersteller : SHORI |
40A; 24VDC; SPST-NO; 1,8W; 28,6x28,6x25,3mm; contacts Ag; automotive; S10-1A-C1-24 SHORI P S10-1A-C1-24V Anzahl je Verpackung: 20 Stücke |
auf Bestellung 94 Stücke: Lieferzeit 7-14 Tag (e) |
|
|||||||||||
+1 |
S10-1A-C1-24VDC Produktcode: 149293 |
Hersteller : Shori |
Relais Relaistyp: Автомобільні Beschreibung: Тип контактів: 1A; Uкотушки: 12VDC; Iкомутації: 40A; Rкотушки: 320 Ohm Abmessungen: 28,6x28,6x25,3 mm Spulenspannung: 24 VDC Strom max: 40 A Kontaktkonfiguration: SPST-NO(1A) |
Produkt ist nicht verfügbar
|
