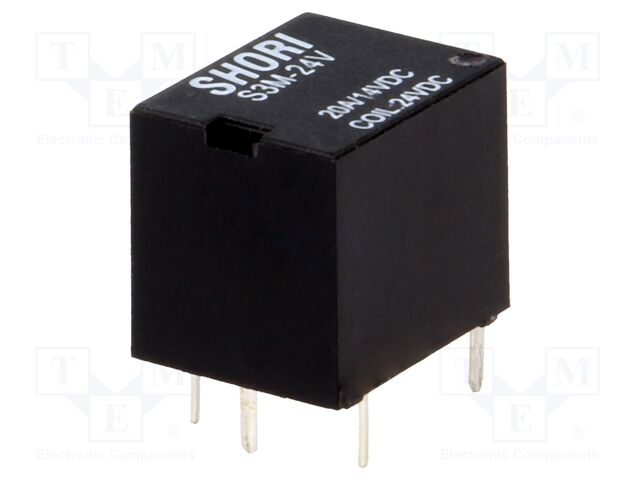

S3M-24-1C SHORI ELECTRIC
Hersteller: SHORI ELECTRIC
Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; SPDT; Ucoil: 24VDC; Icontacts max: 20A
Mounting: PCB
Contact current max.: 20A
Relay variant: miniature
DC contacts rating @R: 20A / 14V DC
Coil power consumption: 0.6W
Body dimensions: 15.6x12x13.5mm
Operating temperature: -30...55°C
Contacts configuration: SPDT
Operate time: 10ms
Coil current: 25mA
Switched voltage: max. 14V DC
Relay series: S3M
Release time: 5ms
Rated coil voltage: 24V DC
Contact resistance: 100mΩ
Terminal pitch: 2.5mm
Type of relay: electromagnetic
Coil resistance: 960Ω
Anzahl je Verpackung: 1 Stücke
Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; SPDT; Ucoil: 24VDC; Icontacts max: 20A
Mounting: PCB
Contact current max.: 20A
Relay variant: miniature
DC contacts rating @R: 20A / 14V DC
Coil power consumption: 0.6W
Body dimensions: 15.6x12x13.5mm
Operating temperature: -30...55°C
Contacts configuration: SPDT
Operate time: 10ms
Coil current: 25mA
Switched voltage: max. 14V DC
Relay series: S3M
Release time: 5ms
Rated coil voltage: 24V DC
Contact resistance: 100mΩ
Terminal pitch: 2.5mm
Type of relay: electromagnetic
Coil resistance: 960Ω
Anzahl je Verpackung: 1 Stücke
auf Bestellung 408 Stücke:
Lieferzeit 7-14 Tag (e)
Anzahl | Preis ohne MwSt |
---|---|
68+ | 1.06 EUR |
76+ | 0.94 EUR |
99+ | 0.73 EUR |
103+ | 0.7 EUR |
500+ | 0.67 EUR |
