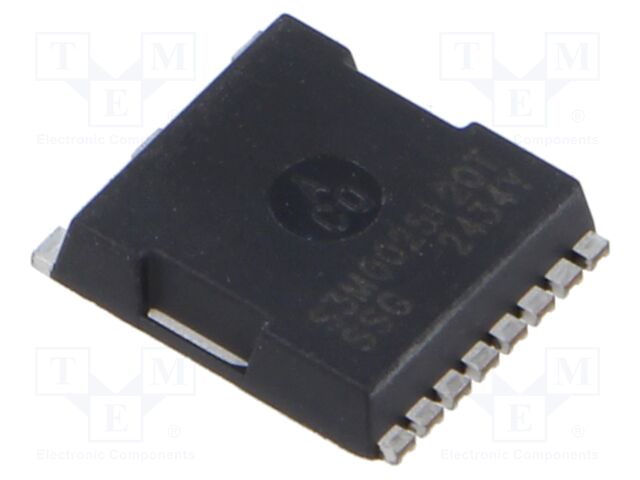

S3M0025120T SMC DIODE SOLUTIONS


S3M0025120T%20N2849%20REV.-.pdf Hersteller: SMC DIODE SOLUTIONS
Category: SMD N channel transistors
Description: Transistor: N-MOSFET; SiC; unipolar; 1.2kV; 54A; Idm: 200A; 517W
Mounting: SMD
Features of semiconductor devices: Kelvin terminal
Case: TOLL
Kind of package: reel; tape
Drain-source voltage: 1.2kV
Drain current: 54A
On-state resistance: 36mΩ
Type of transistor: N-MOSFET
Power dissipation: 517W
Polarisation: unipolar
Gate charge: 175nC
Technology: SiC
Kind of channel: enhancement
Gate-source voltage: -4...18V
Pulsed drain current: 200A
Anzahl je Verpackung: 1 Stücke
auf Bestellung 20 Stücke:

Lieferzeit 7-14 Tag (e)
Anzahl Preis
8+9.22 EUR
10+7.44 EUR
11+7.02 EUR
250+6.76 EUR
Mindestbestellmenge: 8
Im Einkaufswagen  Stück im Wert von  UAH
Produktrezensionen
Produktbewertung abgeben

Technische Details S3M0025120T SMC DIODE SOLUTIONS

Description: MOSFET SILICON CARBIDE SIC 1200V, Packaging: Tape & Reel (TR), Package / Case: 8-PowerSFN, Mounting Type: Surface Mount, Operating Temperature: -55°C ~ 175°C (TJ), Technology: SiC (Silicon Carbide Junction Transistor), FET Type: N-Channel, Current - Continuous Drain (Id) @ 25°C: 77A (Tc), Rds On (Max) @ Id, Vgs: 32mOhm @ 48A, 18V, Power Dissipation (Max): 517W (Tc), Vgs(th) (Max) @ Id: 4V @ 20mA, Supplier Device Package: TOLL, Drive Voltage (Max Rds On, Min Rds On): 18V, Vgs (Max): +22V, -8V, Drain to Source Voltage (Vdss): 1200 V, Gate Charge (Qg) (Max) @ Vgs: 175 nC @ 18 V, Input Capacitance (Ciss) (Max) @ Vds: 3519 pF @ 1000 V.

Weitere Produktangebote S3M0025120T nach Preis ab 7.02 EUR bis 9.22 EUR

Foto Bezeichnung Hersteller Beschreibung Verfügbarkeit
Preis
S3M0025120T Hersteller : SMC DIODE SOLUTIONS S3M0025120T%20N2849%20REV.-.pdf Category: SMD N channel transistors
Description: Transistor: N-MOSFET; SiC; unipolar; 1.2kV; 54A; Idm: 200A; 517W
Mounting: SMD
Features of semiconductor devices: Kelvin terminal
Case: TOLL
Kind of package: reel; tape
Drain-source voltage: 1.2kV
Drain current: 54A
On-state resistance: 36mΩ
Type of transistor: N-MOSFET
Power dissipation: 517W
Polarisation: unipolar
Gate charge: 175nC
Technology: SiC
Kind of channel: enhancement
Gate-source voltage: -4...18V
Pulsed drain current: 200A
auf Bestellung 20 Stücke:
Lieferzeit 14-21 Tag (e)
Anzahl Preis
8+9.22 EUR
10+7.44 EUR
11+7.02 EUR
Mindestbestellmenge: 8
Im Einkaufswagen  Stück im Wert von  UAH
S3M0025120T Hersteller : SMC Diode Solutions S3M0025120T%20N2849%20REV.-.pdf Description: MOSFET SILICON CARBIDE SIC 1200V
Packaging: Tape & Reel (TR)
Package / Case: 8-PowerSFN
Mounting Type: Surface Mount
Operating Temperature: -55°C ~ 175°C (TJ)
Technology: SiC (Silicon Carbide Junction Transistor)
FET Type: N-Channel
Current - Continuous Drain (Id) @ 25°C: 77A (Tc)
Rds On (Max) @ Id, Vgs: 32mOhm @ 48A, 18V
Power Dissipation (Max): 517W (Tc)
Vgs(th) (Max) @ Id: 4V @ 20mA
Supplier Device Package: TOLL
Drive Voltage (Max Rds On, Min Rds On): 18V
Vgs (Max): +22V, -8V
Drain to Source Voltage (Vdss): 1200 V
Gate Charge (Qg) (Max) @ Vgs: 175 nC @ 18 V
Input Capacitance (Ciss) (Max) @ Vds: 3519 pF @ 1000 V
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
S3M0025120T Hersteller : SMC Diode Solutions S3M0025120T%20N2849%20REV.-.pdf Description: MOSFET SILICON CARBIDE SIC 1200V
Packaging: Cut Tape (CT)
Package / Case: 8-PowerSFN
Mounting Type: Surface Mount
Operating Temperature: -55°C ~ 175°C (TJ)
Technology: SiC (Silicon Carbide Junction Transistor)
FET Type: N-Channel
Current - Continuous Drain (Id) @ 25°C: 77A (Tc)
Rds On (Max) @ Id, Vgs: 32mOhm @ 48A, 18V
Power Dissipation (Max): 517W (Tc)
Vgs(th) (Max) @ Id: 4V @ 20mA
Supplier Device Package: TOLL
Drive Voltage (Max Rds On, Min Rds On): 18V
Vgs (Max): +22V, -8V
Drain to Source Voltage (Vdss): 1200 V
Gate Charge (Qg) (Max) @ Vgs: 175 nC @ 18 V
Input Capacitance (Ciss) (Max) @ Vds: 3519 pF @ 1000 V
