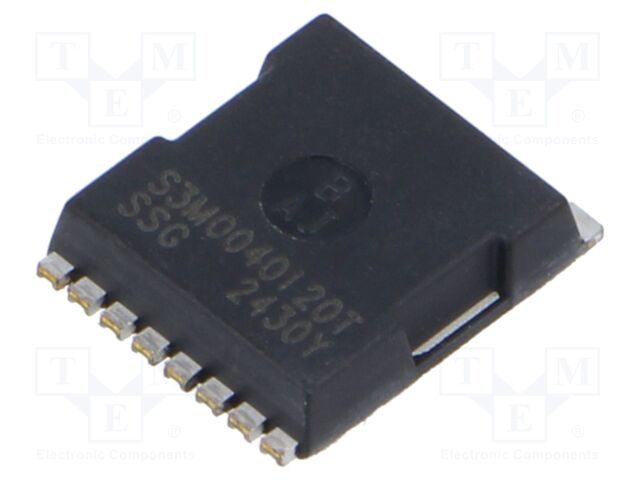

S3M0040120T

S3M0040120T SMC DIODE SOLUTIONS


S3M0040120T%20N2848%20REV.-.pdf Hersteller: SMC DIODE SOLUTIONS
Category: SMD N channel transistors
Description: Transistor: N-MOSFET; SiC; unipolar; 1.2kV; 46A; Idm: 223A; 130W
Mounting: SMD
Features of semiconductor devices: Kelvin terminal
Case: TOLL
Kind of package: reel; tape
Drain-source voltage: 1.2kV
Drain current: 46A
On-state resistance: 50mΩ
Type of transistor: N-MOSFET
Power dissipation: 130W
Polarisation: unipolar
Gate charge: 143nC
Technology: SiC
Kind of channel: enhancement
Gate-source voltage: -4...18V
Pulsed drain current: 223A
Anzahl je Verpackung: 1 Stücke
auf Bestellung 6 Stücke:

Lieferzeit 7-14 Tag (e)
Anzahl Preis
6+11.91 EUR
10+7.15 EUR
250+4.55 EUR
Mindestbestellmenge: 6
Im Einkaufswagen  Stück im Wert von  UAH
Produktrezensionen
Produktbewertung abgeben

Technische Details S3M0040120T SMC DIODE SOLUTIONS

Description: MOSFET SILICON CARBIDE SIC 1200V, Packaging: Tape & Reel (TR), Package / Case: 8-PowerSFN, Mounting Type: Surface Mount, Operating Temperature: -55°C ~ 175°C (TJ), Technology: SiC (Silicon Carbide Junction Transistor), FET Type: N-Channel, Current - Continuous Drain (Id) @ 25°C: 65A (Tc), Rds On (Max) @ Id, Vgs: 52mOhm @ 40A, 18V, Power Dissipation (Max): 130W (Tc), Vgs(th) (Max) @ Id: 4V @ 16mA, Supplier Device Package: TOLL, Drive Voltage (Max Rds On, Min Rds On): 18V, Vgs (Max): +20V, -8V, Drain to Source Voltage (Vdss): 1200 V, Gate Charge (Qg) (Max) @ Vgs: 143 nC @ 18 V, Input Capacitance (Ciss) (Max) @ Vds: 2844 pF @ 1000 V.

Weitere Produktangebote S3M0040120T nach Preis ab 11.83 EUR bis 22.33 EUR

Foto Bezeichnung Hersteller Beschreibung Verfügbarkeit
Preis
S3M0040120T S3M0040120T Hersteller : SMC DIODE SOLUTIONS S3M0040120T%20N2848%20REV.-.pdf Category: SMD N channel transistors
Description: Transistor: N-MOSFET; SiC; unipolar; 1.2kV; 46A; Idm: 223A; 130W
Mounting: SMD
Features of semiconductor devices: Kelvin terminal
Case: TOLL
Kind of package: reel; tape
Drain-source voltage: 1.2kV
Drain current: 46A
On-state resistance: 50mΩ
Type of transistor: N-MOSFET
Power dissipation: 130W
Polarisation: unipolar
Gate charge: 143nC
Technology: SiC
Kind of channel: enhancement
Gate-source voltage: -4...18V
Pulsed drain current: 223A
auf Bestellung 6 Stücke:
Lieferzeit 14-21 Tag (e)
Anzahl Preis
6+11.91 EUR
Mindestbestellmenge: 6
Im Einkaufswagen  Stück im Wert von  UAH
S3M0040120T Hersteller : SMC Diode Solutions S3M0040120T%20N2848%20REV.-.pdf Description: MOSFET SILICON CARBIDE SIC 1200V
Packaging: Cut Tape (CT)
Package / Case: 8-PowerSFN
Mounting Type: Surface Mount
Operating Temperature: -55°C ~ 175°C (TJ)
Technology: SiC (Silicon Carbide Junction Transistor)
FET Type: N-Channel
Current - Continuous Drain (Id) @ 25°C: 65A (Tc)
Rds On (Max) @ Id, Vgs: 52mOhm @ 40A, 18V
Power Dissipation (Max): 130W (Tc)
Vgs(th) (Max) @ Id: 4V @ 16mA
Supplier Device Package: TOLL
Drive Voltage (Max Rds On, Min Rds On): 18V
Vgs (Max): +20V, -8V
Drain to Source Voltage (Vdss): 1200 V
Gate Charge (Qg) (Max) @ Vgs: 143 nC @ 18 V
Input Capacitance (Ciss) (Max) @ Vds: 2844 pF @ 1000 V
auf Bestellung 250 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis
1+22.33 EUR
10+15.63 EUR
100+11.83 EUR
Im Einkaufswagen  Stück im Wert von  UAH
S3M0040120T Hersteller : SMC Diode Solutions S3M0040120T%20N2848%20REV.-.pdf Description: MOSFET SILICON CARBIDE SIC 1200V
Packaging: Tape & Reel (TR)
Package / Case: 8-PowerSFN
Mounting Type: Surface Mount
Operating Temperature: -55°C ~ 175°C (TJ)
Technology: SiC (Silicon Carbide Junction Transistor)
FET Type: N-Channel
Current - Continuous Drain (Id) @ 25°C: 65A (Tc)
Rds On (Max) @ Id, Vgs: 52mOhm @ 40A, 18V
Power Dissipation (Max): 130W (Tc)
Vgs(th) (Max) @ Id: 4V @ 16mA
Supplier Device Package: TOLL
Drive Voltage (Max Rds On, Min Rds On): 18V
Vgs (Max): +20V, -8V
Drain to Source Voltage (Vdss): 1200 V
Gate Charge (Qg) (Max) @ Vgs: 143 nC @ 18 V
Input Capacitance (Ciss) (Max) @ Vds: 2844 pF @ 1000 V
