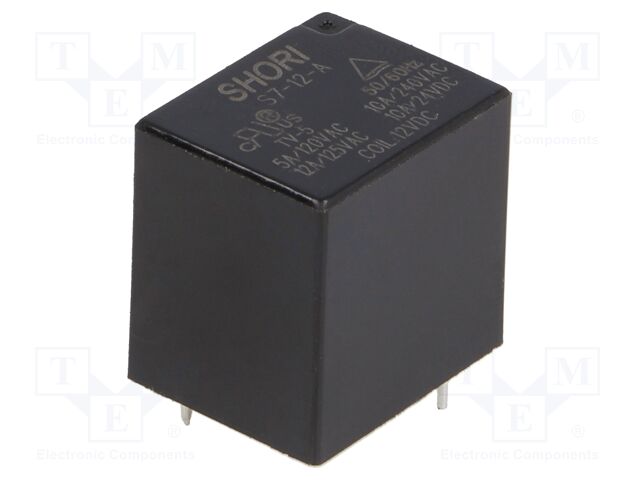

S7-12-1A SHORI ELECTRIC
Hersteller: SHORI ELECTRIC
Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; 15A/125VAC; PCB
AC contacts rating @R: 15A / 125V AC
DC contacts rating @R: 10A / 24V DC
Contacts configuration: SPST-NO
Mechanical durability: 10000000 cycles
Operating temperature: -30...55°C
Electrical life: 100000 cycles
Mounting: PCB
Type of relay: electromagnetic
Body dimensions: 16.5x20x20.2mm
Coil resistance: 400Ω
Relay variant: miniature
Relay series: S7
Rated coil voltage: 12V DC
Coil power consumption: 360mW
Switched voltage: max. 30V DC; max. 240V AC
Contact resistance: 50mΩ
Coil current: 30mA
Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; 15A/125VAC; PCB
AC contacts rating @R: 15A / 125V AC
DC contacts rating @R: 10A / 24V DC
Contacts configuration: SPST-NO
Mechanical durability: 10000000 cycles
Operating temperature: -30...55°C
Electrical life: 100000 cycles
Mounting: PCB
Type of relay: electromagnetic
Body dimensions: 16.5x20x20.2mm
Coil resistance: 400Ω
Relay variant: miniature
Relay series: S7
Rated coil voltage: 12V DC
Coil power consumption: 360mW
Switched voltage: max. 30V DC; max. 240V AC
Contact resistance: 50mΩ
Coil current: 30mA
auf Bestellung 356 Stücke:
Lieferzeit 14-21 Tag (e)
Anzahl | Preis ohne MwSt |
---|---|
122+ | 0.59 EUR |
129+ | 0.56 EUR |
143+ | 0.5 EUR |
152+ | 0.47 EUR |
162+ | 0.44 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details S7-12-1A SHORI ELECTRIC
Category: Miniature Electromagnetic Relays, Description: Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; 15A/125VAC; PCB, AC contacts rating @R: 15A / 125V AC, DC contacts rating @R: 10A / 24V DC, Contacts configuration: SPST-NO, Mechanical durability: 10000000 cycles, Operating temperature: -30...55°C, Electrical life: 100000 cycles, Mounting: PCB, Type of relay: electromagnetic, Body dimensions: 16.5x20x20.2mm, Coil resistance: 400Ω, Relay variant: miniature, Relay series: S7, Rated coil voltage: 12V DC, Coil power consumption: 360mW, Switched voltage: max. 30V DC; max. 240V AC, Contact resistance: 50mΩ, Coil current: 30mA, Anzahl je Verpackung: 1 Stücke.
Weitere Produktangebote S7-12-1A nach Preis ab 0.44 EUR bis 0.59 EUR
Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis ohne MwSt | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
S7-12-1A | Hersteller : SHORI ELECTRIC |
Category: Miniature Electromagnetic Relays Description: Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; 15A/125VAC; PCB AC contacts rating @R: 15A / 125V AC DC contacts rating @R: 10A / 24V DC Contacts configuration: SPST-NO Mechanical durability: 10000000 cycles Operating temperature: -30...55°C Electrical life: 100000 cycles Mounting: PCB Type of relay: electromagnetic Body dimensions: 16.5x20x20.2mm Coil resistance: 400Ω Relay variant: miniature Relay series: S7 Rated coil voltage: 12V DC Coil power consumption: 360mW Switched voltage: max. 30V DC; max. 240V AC Contact resistance: 50mΩ Coil current: 30mA Anzahl je Verpackung: 1 Stücke |
auf Bestellung 356 Stücke: Lieferzeit 7-14 Tag (e) |
|
|||||||||||||
S7-12-1A Produktcode: 119565 |
Relais |
Produkt ist nicht verfügbar
|
