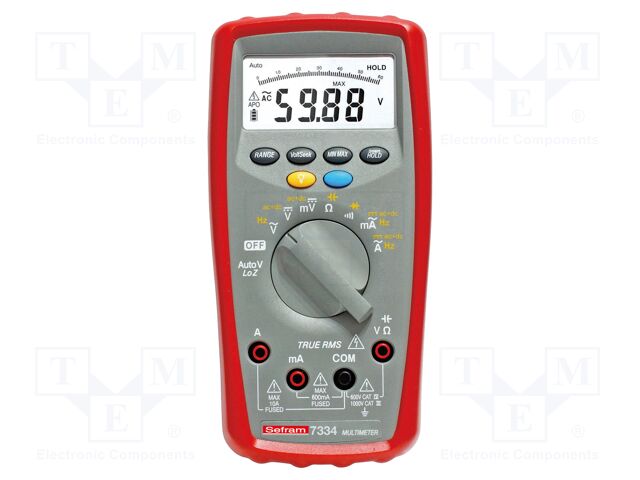

SEFRAM7334

Category: Portable digital multimeters, Description: Digital multimeter; LCD; 3,75 digit (6000); 3x/s; VDC: 600mV,600V, Standard equipment: test leads; user's manual, Conform to the norm: CAT III 1000V; CAT IV 600V; EN 61010, Type of meter: digital multimeter, Kind of display used: LCD, True effective value measurement: True RMS AC+DC, Illumination: yes, Bargraph: yes, Operating temperature: -10...50°C, Capacitance measuring range: 1µF...10mF, DC current measuring range: 60mA; 600mA; 6A; 10A, Diode test: 0.4mA, AC current measuring range: 60mA; 600mA; 6A; 10A, DC voltage measuring range: 600mV; 600V, AC voltage measuring range: 600mV; 1kV, Dimensions (W x H x D): 94x190x48mm, DC voltage measuring accuracy: ±(0.09% + 2 digit), Frequency measuring accuracy: ±(0.1%+2 digit), Resistance measuring accuracy: ±(0.8%+2 digit), DC current measuring accuracy: ±(1% + 3 digit), AC voltage measuring accuracy: ±(1% + 5 digit), AC current measuring accuracy: ±(1.5% + 3 digit), Frequency measuring range: 100Hz...100kHz, Capacitance measuring accuracy: ±(1.2%+ 2 digit), Weight with battery: 460g, Resistance measuring range: 600Ω...40MΩ, Measuring instrument features: HOLD function; MIN/MAX function, Sampling: 3x/s, Display parameters: 3,75 digit (6000), Measurement: AC current; AC voltage; capacitance; continuity; DC current; DC voltage; frequency; resistance, Continuity test: acoustic indication, Battery/ rechargeable battery: battery 6LR61 9V x1, Power supply: battery 6LR61 9V x1, Anzahl je Verpackung: 1 Stücke.
