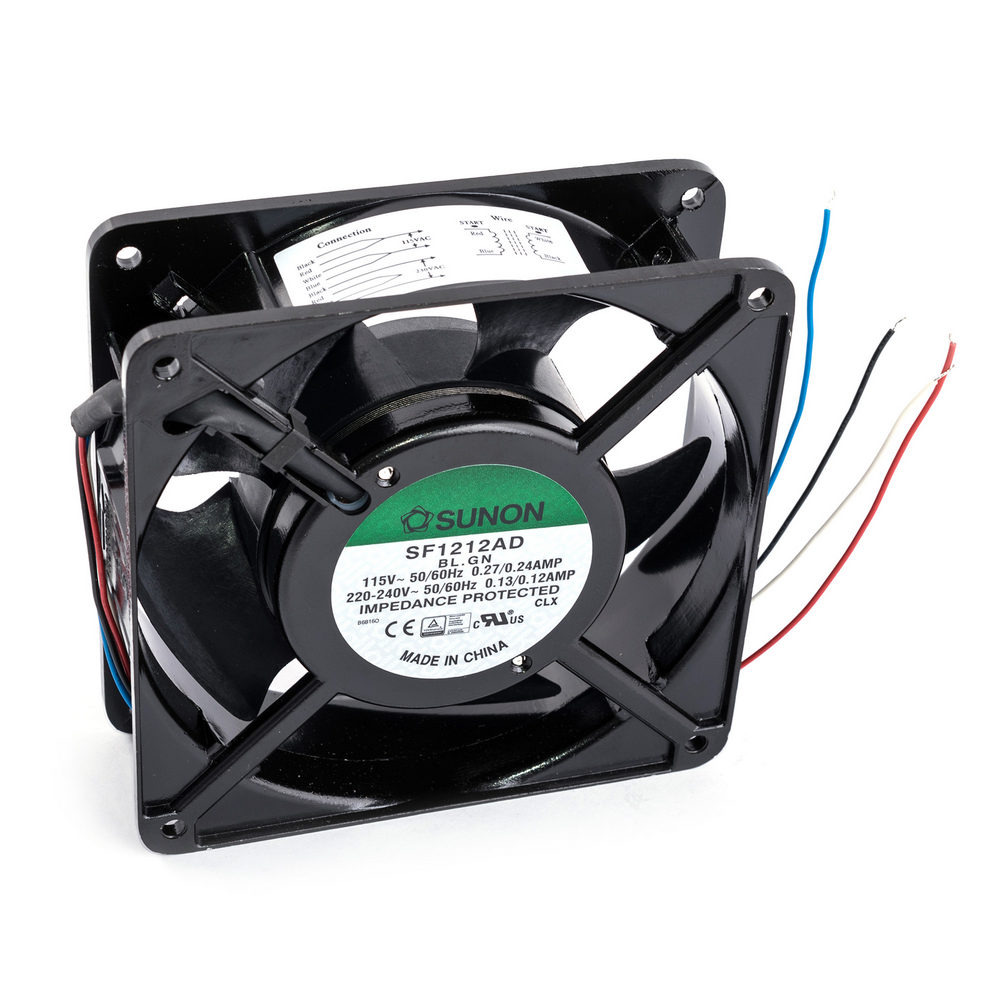

SF1212AD.BL.GN SUNON
Hersteller: SUNONCategory: AC 230V/115V Fans
Description: Fan: AC; axial; 115/230VAC; 120x120x38mm; 195m3/h(±10%); 49dBA
Type of fan: AC
Kind of fan: axial
Supply voltage: 115/230V AC
Fan dimensions: 120x120x38mm
Power consumption: 19W
Current rating: 0.24A
Fan efficiency: 195m3/h (±10%)
Noise level: 49dBA
Kind of Bearing: ball
Rotational rate/speed: 3100rpm
Current and power consumption tolerance: ±15%
Min. insulation resistance: 500MΩ
Impeller material: thermoplastic
Enclosure material: aluminium
Leads: leads x4
Lead length: 0.3m
Operating temperature: -10...70°C
Flammability rating: UL94V-0
Static pressure: 9.65mm H2O
Wire size: 24AWG
Anzahl je Verpackung: 1 Stücke
auf Bestellung 900 Stücke:
Lieferzeit 7-14 Tag (e)
| Anzahl | Preis |
|---|---|
| 5+ | 15.32 EUR |
| 10+ | 14.8 EUR |
| 40+ | 14.03 EUR |
| 240+ | 13.94 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details SF1212AD.BL.GN SUNON
Category: AC 230V/115V Fans, Description: Fan: AC; axial; 115/230VAC; 120x120x38mm; 195m3/h(±10%); 49dBA, Type of fan: AC, Kind of fan: axial, Supply voltage: 115/230V AC, Fan dimensions: 120x120x38mm, Power consumption: 19W, Current rating: 0.24A, Fan efficiency: 195m3/h (±10%), Noise level: 49dBA, Kind of Bearing: ball, Rotational rate/speed: 3100rpm, Current and power consumption tolerance: ±15%, Min. insulation resistance: 500MΩ, Impeller material: thermoplastic, Enclosure material: aluminium, Leads: leads x4, Lead length: 0.3m, Operating temperature: -10...70°C, Flammability rating: UL94V-0, Static pressure: 9.65mm H2O, Wire size: 24AWG, Anzahl je Verpackung: 1 Stücke.
Weitere Produktangebote SF1212AD.BL.GN nach Preis ab 13.94 EUR bis 24.76 EUR
| Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
SF1212AD.BL.GN | Hersteller : SUNON |
Category: AC 230V/115V Fans Description: Fan: AC; axial; 115/230VAC; 120x120x38mm; 195m3/h(±10%); 49dBA Type of fan: AC Kind of fan: axial Supply voltage: 115/230V AC Fan dimensions: 120x120x38mm Power consumption: 19W Current rating: 0.24A Fan efficiency: 195m3/h (±10%) Noise level: 49dBA Kind of Bearing: ball Rotational rate/speed: 3100rpm Current and power consumption tolerance: ±15% Min. insulation resistance: 500MΩ Impeller material: thermoplastic Enclosure material: aluminium Leads: leads x4 Lead length: 0.3m Operating temperature: -10...70°C Flammability rating: UL94V-0 Static pressure: 9.65mm H2O Wire size: 24AWG |
auf Bestellung 900 Stücke: Lieferzeit 14-21 Tag (e) |
|
||||||||||
| SF1212AD.BL.GN | Hersteller : Sunon |
AXIAL AC FAN 120X120X38 |
auf Bestellung 386 Stücke: Lieferzeit 14-21 Tag (e) |
|
|||||||||||
 |
SF1212AD Produktcode: 34066
zu Favoriten hinzufügen
Lieblingsprodukt
|
Hersteller : Sunon |
Gehäuse, Halter, Montage- und Installationselemente > Lüfter und Zubehör Abmessungen, mm: 120x120x38 Spannung, V: 115 AC Luftvolumen, m3/Stunde: 195 Leistung, Watt: 19 Lärm, dB: 49 Rotationsgeschwindigkeit, r/min: 3100 Beschreibung: Lager roll-on- |
Produkt ist nicht verfügbar
|
|||||||||||
| SF1212AD.BL.GN | Hersteller : Sunon Fans |
Description: FAN AXL 119.5X38.5MM 115/230VAC Power (Watts): 19.00W Features: Dual Voltage Packaging: Bulk Voltage - Rated: 115/240VAC Size / Dimension: Square - 119.5mm L x 119.5mm H Bearing Type: Ball RPM: 3100 RPM Air Flow: 115.0 CFM (3.22m³/min) Width: 38.50mm Weight: 1.2 lbs (550 g) Operating Temperature: 14 ~ 158°F (-10 ~ 70°C) Termination: 4 Wire Leads Approval Agency: CE, CUR, TUV, UL Fan Type: Tubeaxial Noise: 49.0dB(A) Static Pressure: 0.380 in H2O (94.6 Pa) Part Status: Active |
Produkt ist nicht verfügbar |
||||||||||||
 |
SF1212AD.BL.GN | Hersteller : Sunon |
AC Fans Axial Fan, 120x120x38mm, 115VAC, 95CFM, 0.33"H2O, Ball, Wire |
Produkt ist nicht verfügbar |
