SF23092A2092HST Sunon
Abmessungen, mm: 92x92x25
Spannung, V: 230 AC
Luftvolumen, m3/Stunde: 55
Leistung, Watt: 14,5
Lärm, dB: 37,5
Rotationsgeschwindigkeit, r/min: 2250
Beschreibung: Lager rutsch
Lieferzeit 21-28 Tag (e)
Anzahl | Preis ohne MwSt |
---|---|
1+ | 9.75 EUR |
Technische Details SF23092A2092HST Sunon

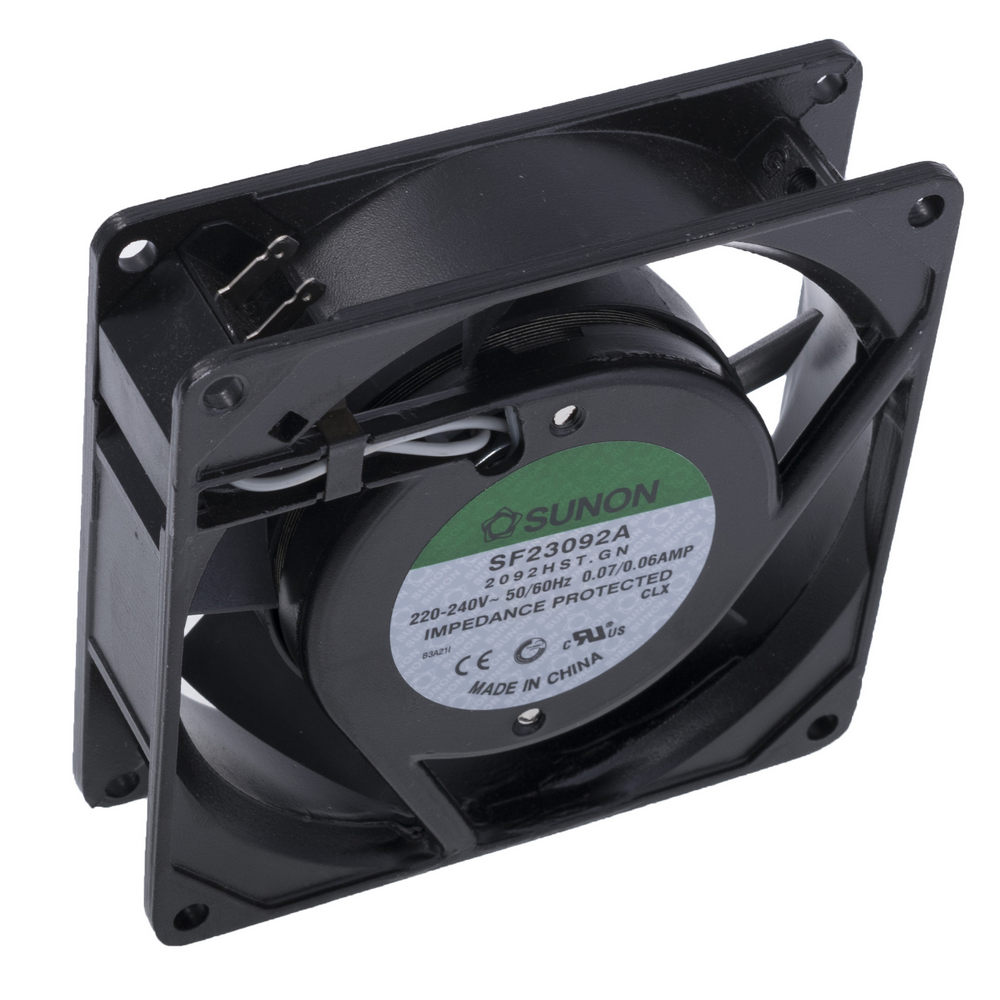

Lüfter Axial Sunon 92x92x25mm 230V~ 2250U/min FAN SF23092A2092HST
Eigenschaften:
AC-Axial-Gerätelüfter von Sunon. Außenläufer-Spaltpolmotor, impedanzgeschützt. Alu-Druckguß-Rahmen und Flügelrad aus gefülltem Thermoplast PBT (UL94V-0). Ausgestattet mit einem Gleitlager. Anschluß über integrierten Flachstecker 2,8 x 0,3 mm.
Abmessungen 92x92x25 mm
Nennspannung 230 Volt AC 50 Hz
Nennstrom 0,07 A ± 10%
Leistungsaufnahme 14,5 Watt
Drehzahl 2.250 U/min.
Luftleistung 49,2 m³/h ± 10 %
Geräuschpegel 36 dBA
Lebensdauer bei 40°C 106217 Stunden
Betriebsspannungsbereich 185 ... 245 V AC
Spannungsfestigkeit bei 65% r.F. 1500 V AC für 1 Min.
Isolationswiderstand bei 500 V DC > 500 MOhm
Isolationsklasse (120°C) B
Einsatz-Temperaturbereich -10 ... +70 °C
Artikelnummer: 25029
Möglichen Substitutionen SF23092A2092HST Sunon
Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis ohne MwSt | ||||
---|---|---|---|---|---|---|---|---|---|
Вентилятор 92x92x25, 220V (GT2-7203) Produktcode: 114930 |
Hersteller : Global Tone |
Gehäuse, Halter, Montage- und Installationselemente > Lüfter und Zubehör Abmessungen, mm: 92x92x25 mm Spannung, V: 230 AC Leistung, Watt: 17,6 Вт Beschreibung: Підшипник ковзання "втулка" |
auf Bestellung 169 Stück: Lieferzeit 21-28 Tag (e)erwartet 200 Stück: 200 Stück - erwartet 30.07.2024 |
|
Verwandte Produkte SF23092A2092HST Sunon
Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis ohne MwSt | ||||||
---|---|---|---|---|---|---|---|---|---|---|---|
+3 |
Befestigung für Ventilatore und Gitter, Plastikklammer FSP-1 Produktcode: 62414 |
Gehäuse, Halter, Montage- und Installationselemente > Lüfter und Zubehör Beschreibung: Befestigung |
verfügbar: 318 Stück
|
|
|||||||
+1 |
Befestigung für Ventilatore und Gitter, Plastikklammer FSP-2 Produktcode: 26792 |
Gehäuse, Halter, Montage- und Installationselemente > Lüfter und Zubehör Beschreibung: Befestigung |
verfügbar: 80 Stück
|
|
Weitere Produktangebote SF23092A2092HST nach Preis ab 8.02 EUR bis 58.92 EUR
Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis ohne MwSt | ||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
SF23092A2092HST.GN | Hersteller : SUNON |
Category: AC230V Fans Description: Fan: AC; axial; 230VAC; 92x92x25mm; 49m3/h(±7%); 36dBA; 2250rpm Kind of Bearing: slide bearing Fan efficiency: 49m3/h (±7%) Static pressure: 3.05mm H2O Noise level: 36dBA Rotational rate/speed: 2250rpm Current and power consumption tolerance: ±15% Power consumption: 14.5W Kind of fan: axial Min. insulation resistance: 500MΩ Operating temperature: -10...70°C Enclosure material: aluminium Current rating: 70mA Supply voltage: 230V AC Leads: connectors 2,8x0,3mm Frequency: 50Hz Type of fan: AC Fan dimensions: 92x92x25mm Impeller material: thermoplastic Flammability rating: UL94V-0 Anzahl je Verpackung: 1 Stücke |
auf Bestellung 981 Stücke: Lieferzeit 7-14 Tag (e) |
|
|||||||||||||||
SF23092A2092HST.GN | Hersteller : SUNON |
Category: AC230V Fans Description: Fan: AC; axial; 230VAC; 92x92x25mm; 49m3/h(±7%); 36dBA; 2250rpm Kind of Bearing: slide bearing Fan efficiency: 49m3/h (±7%) Static pressure: 3.05mm H2O Noise level: 36dBA Rotational rate/speed: 2250rpm Current and power consumption tolerance: ±15% Power consumption: 14.5W Kind of fan: axial Min. insulation resistance: 500MΩ Operating temperature: -10...70°C Enclosure material: aluminium Current rating: 70mA Supply voltage: 230V AC Leads: connectors 2,8x0,3mm Frequency: 50Hz Type of fan: AC Fan dimensions: 92x92x25mm Impeller material: thermoplastic Flammability rating: UL94V-0 |
auf Bestellung 981 Stücke: Lieferzeit 14-21 Tag (e) |
|
|||||||||||||||
SF23092A-2092HST.GN | Hersteller : Sunon Fans |
Description: FAN AXIAL 91.5X25.5MM 220/240VAC Power (Watts): 14.00W Packaging: Bulk Voltage - Rated: 240VAC Size / Dimension: Square - 91.5mm L x 91.5mm H Bearing Type: Sleeve RPM: 2750 RPM Air Flow: 36.0 CFM (1.01m³/min) Width: 25.50mm Weight: 0.617 lb (280.00 g) Termination: 2 Terminals Approval Agency: CE, CUR, TUV, UL Fan Type: Tubeaxial Noise: 39.0dB(A) Static Pressure: 0.180 in H2O (44.8 Pa) Part Status: Active |
auf Bestellung 239 Stücke: Lieferzeit 21-28 Tag (e) |
|
|||||||||||||||
SF23092A-2092HST.GN | Hersteller : Sunon | AC Fans Axial Fan, 92x92x25mm, 220-240VAC, 29/36CFM, 0.12/0.18"H2O, Sleeve, Terminals |
auf Bestellung 45 Stücke: Lieferzeit 14-28 Tag (e) |
|
|||||||||||||||
SF23092A-2092HST.GN | Hersteller : Sunon | AC Fan Sleeve Bearing 220V/240V 0.06A/0.07A 14W/14.5W 50Hz/60Hz 2250RPM/2750RPM 29CFM/36CFM 36dB/39dB Flange Mount |
auf Bestellung 981 Stücke: Lieferzeit 14-21 Tag (e) |
|
|||||||||||||||
SF23092A-2092HST.GN | Hersteller : Sunon | AC Fan Sleeve Bearing 220V/240V 0.06A/0.07A 14W/14.5W 50Hz/60Hz 2250RPM/2750RPM 29CFM/36CFM 36dB/39dB Flange Mount |
auf Bestellung 194 Stücke: Lieferzeit 14-21 Tag (e) |
|
